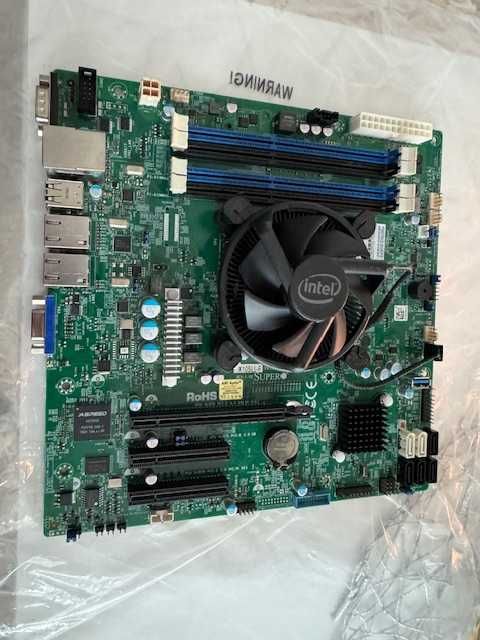

Witam do sprzedania mam plyte razem z procesorem jak i chlodzeniem. Plyta jest to lezak zapasowy do servera. Idealnie pasuje do TrueNas, Unraid oraz XpEnelogy. Chwalona jest w grupach spolecznosciowych. Cena jest do lekkiej negocjacji
100%Sprawna

Dane plyty
Form Factor microATX, 9.6" x 9.6" (24.38cm x 24.38cm)
Chipset Intel® C222 Express PCH
CPU Xeon e3-1220V3
Memory Up to 32GB Unbuffered ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
• 4x 240-pin DDR3 DIMM sockets
• 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs •
Dual channel memory bus 1GB, 2GB, 4GB, 8GB
• Corrects single-bit errors, Detects double-bit errors (using ECC memory)
Onboard Graphics Aspeed AST2400 BMC
Expansion Slots
• 1x PCI-E 3.0 x8 (in x16 slot),
• 1x PCI-E 3.0 x8
• 1x PCI-E 2.0 x4 (in x8 slot)
Internal I/O Connectors 2x SATA3 (6 Gbps) ports; RAID 0,1
• Intel® C222 controller for 4x SATA2 (3 Gbps) ports; RAID 0,1,5,10
• 1x TCM header
• 2x USB 2.0 header
• 1x USB 3.0 header
• 1x USB 3.0 type A
• 1x COM port header
• Chassis intrusion header
• 24-Pin ATX power connector
• 1x 4-Pin ATX 12V power connector

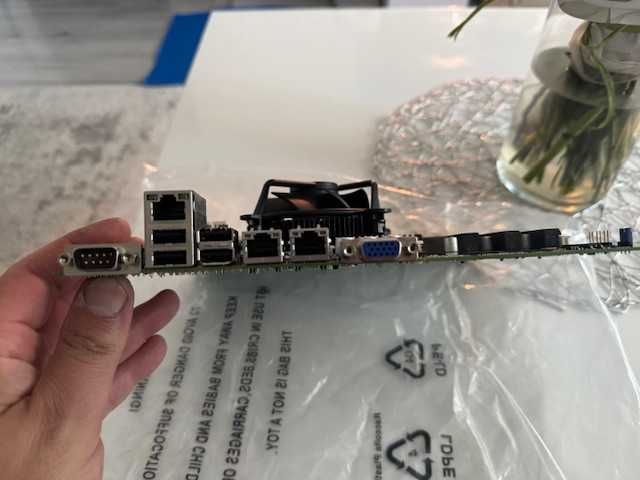

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x dedicated IPMI LAN port
• 1x VGA port
• 4x USB 2.0 ports
• 1x COM port
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 with 10/100/1000M bps MAC
Network Intel® Ethernet Controller I210-ATIntel® Ethernet Controller I217LMSupports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 outputRealtek RTL8211E PHY (dedicated IPMI)
Fans connectors
• 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control, Support 3-pin fans (w/o speed control)
