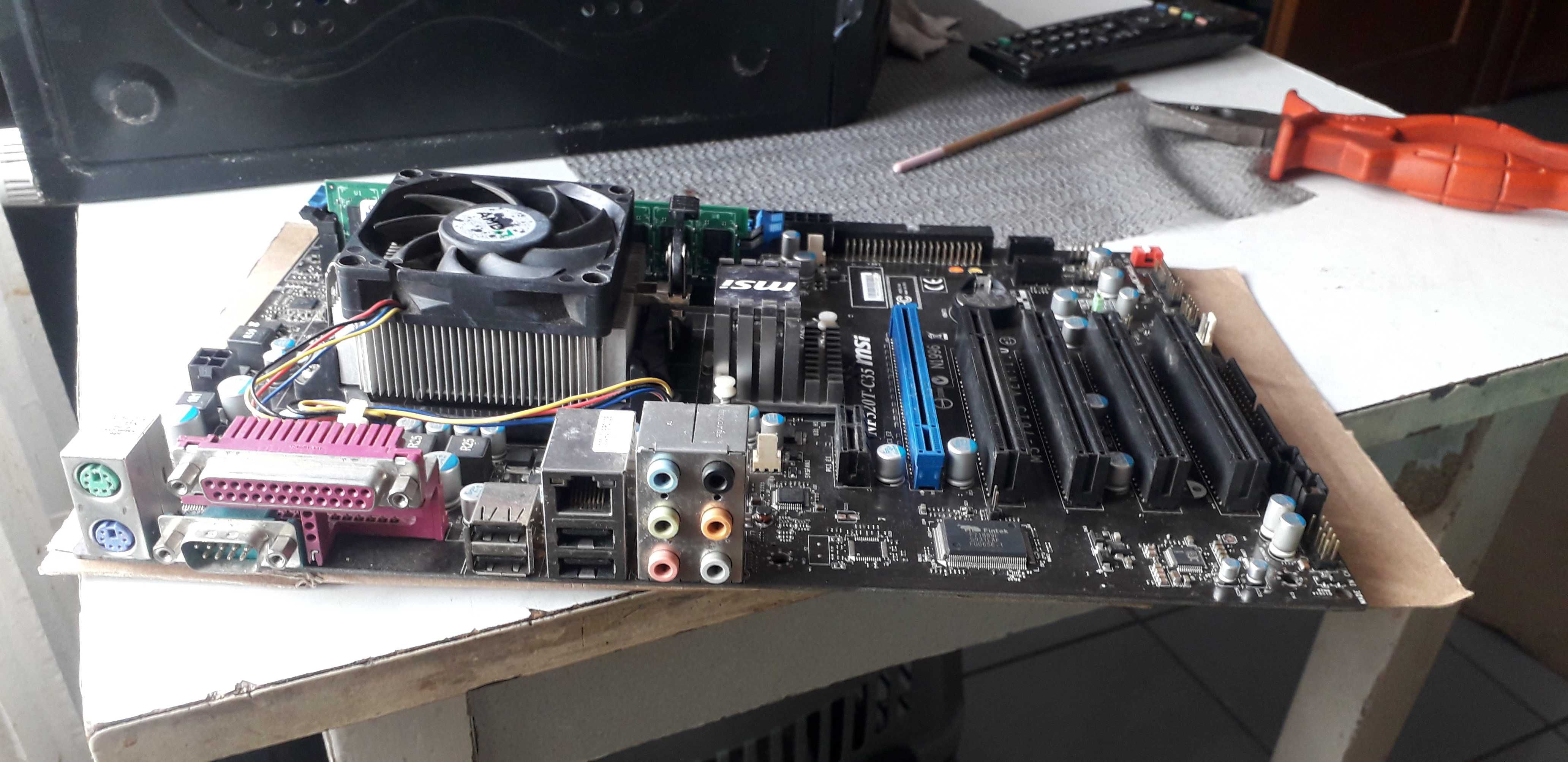

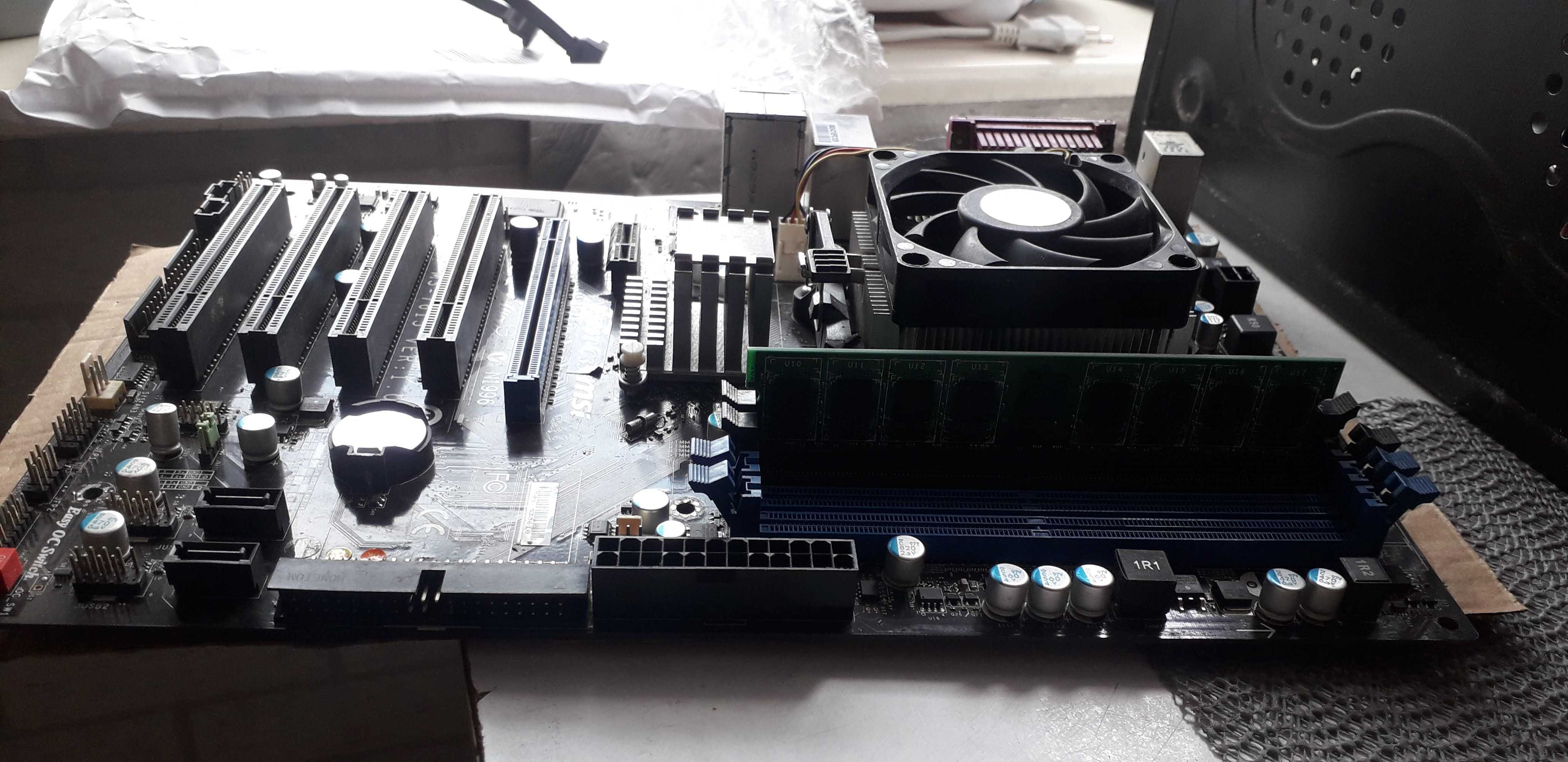

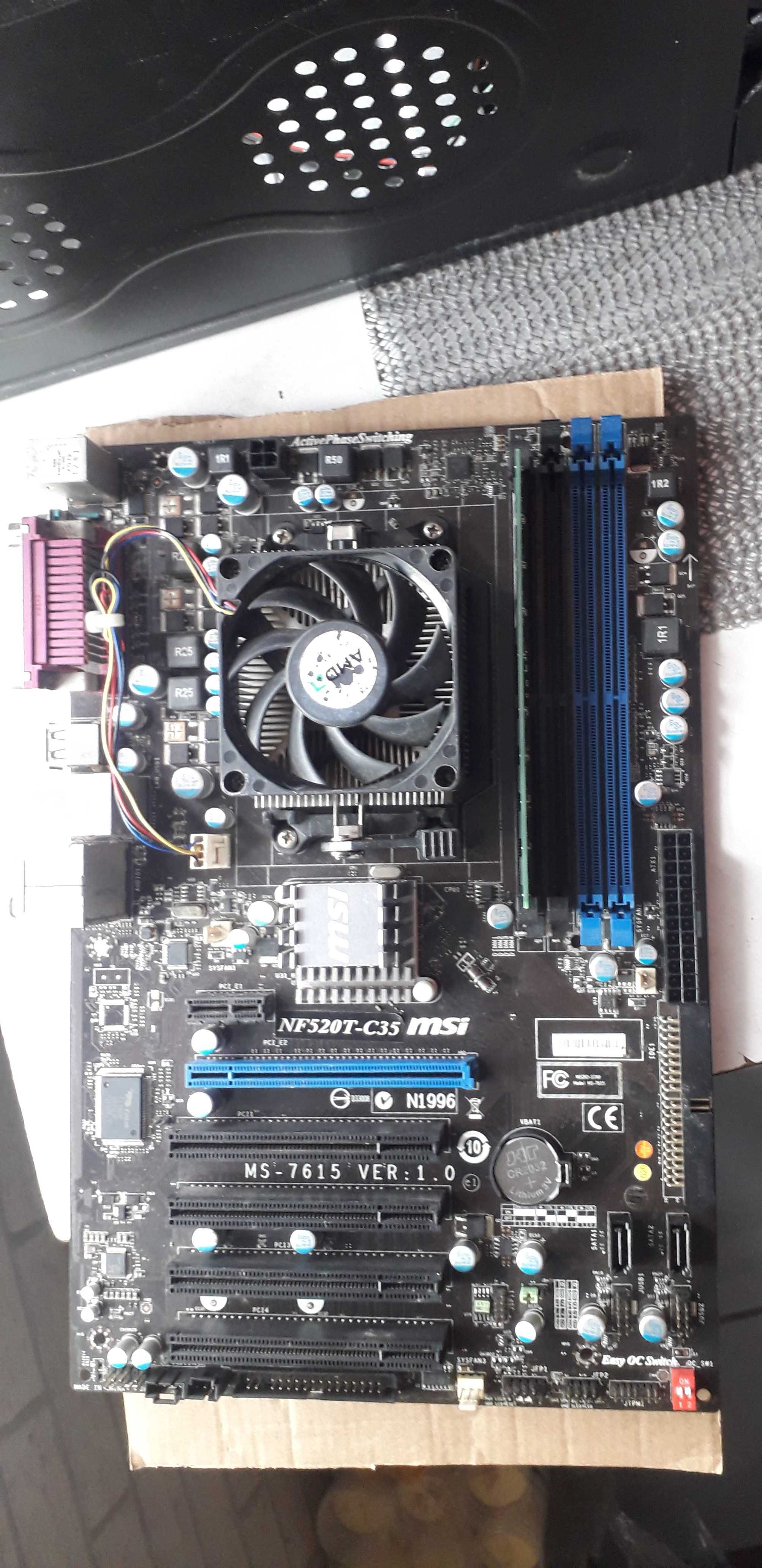

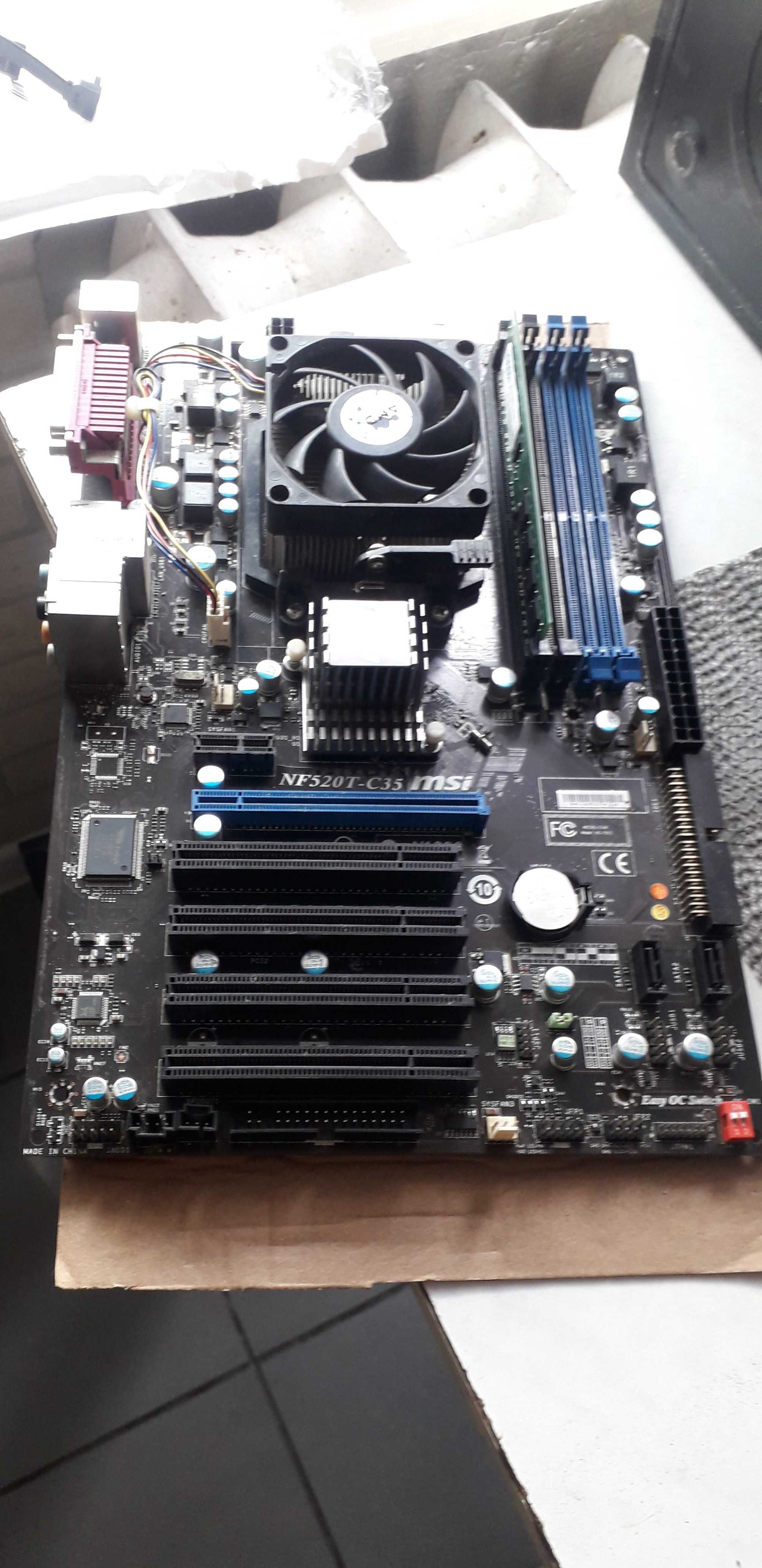

witam przedmiotem sprzedazy jest plyta glowna Msi NF520T-C35 pod AM2 ^ razem z PRocesorem Amd Phenom x4 2.20ghz dodatkowo w gratisie jedna kość Ramn ddr2 1gb oraz cale chlodzenie procesora radiator z wentylatorem oczywiscie zestaw jest w pelni sprawny i świeżo została nałozona pasta termoprzewodząca na procesor

CPU

• Support AMD® Phenom II X3/ X4 & Athlon X2/ X3/ X4 CPU in the AM2+ package

Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus

• HyperTransport 2.0 supporting speed up to 1GHz

Chipset

• NVIDIA® nForce 520 LE (MCP61D) / GeForce 6150SE & nForce 430 (MCP61P) chipset

Main Memory

• Supports Dual Channel DDR2 66*******066/1200* (OC)

- 4 DDR2 DIMMs (240pin / 1.8V)

- Supports a maximum memory size up to 16GB.

Slots

• One PCI Express x16 slot.

• One PCI Express x1 slot.

• Four PCI slots (support 3.3v/5v PCI bus interface).

On-Board IDE

• One IDE port by NVIDIA® nForce 520

- Supports Ultra DMA 66/100/133 mode

- Supports PIO, Bus Master operation mode

- Can connect up to two IDE devices

On-Board SATA

• Two SATA II ports by NVIDIA® nForce 520

- Supports storage and data transfers at up to 3Gb/s

Audio

• Chipset integrated by Realtek® ALC888S

- Flexible 7.1-channel audio with jack sensing

- Compliant with Azalia 1.0 Spec

LAN

• Supports 10/100/1000 Fast Ethernet by Realtek 8111DL

Internal I/O Connectors

- ATX 24-pin power connector

- 4-pin ATX 12V power connector

- CPU x1 / System x3 FAN connectors

- CD-in connector

- 1 x Floppy disk drive connector

- 2 x SATA II connectors

- 1 x ATA133 connectors

- 2 x USB 2.0 connector support additional 4 ports

- SPDIF-Out connector

- Front panel connector

- Front panel audio connector

- Chassis intrusion switch connector

- Clear CMOS Jumper

- OC Switch

- 1 x TPM connector

MSI Reminds You...

• The floppy disk cable will be optional.

Back Panel I/O Ports

- 1 x PS/2 Keyboard

- 1 x PS/2 Mouse

- 1 x Parallel port

- 1 x Serial port

- 1 x 6 in 1 audio jack

- 4 x USB 2.0

- 1 x RJ45 LAN Jack

Dimension

• 30.5cm(L) x 20.5cm(W) ATX Form Factor

Mounting

• 6 mounting holes.
