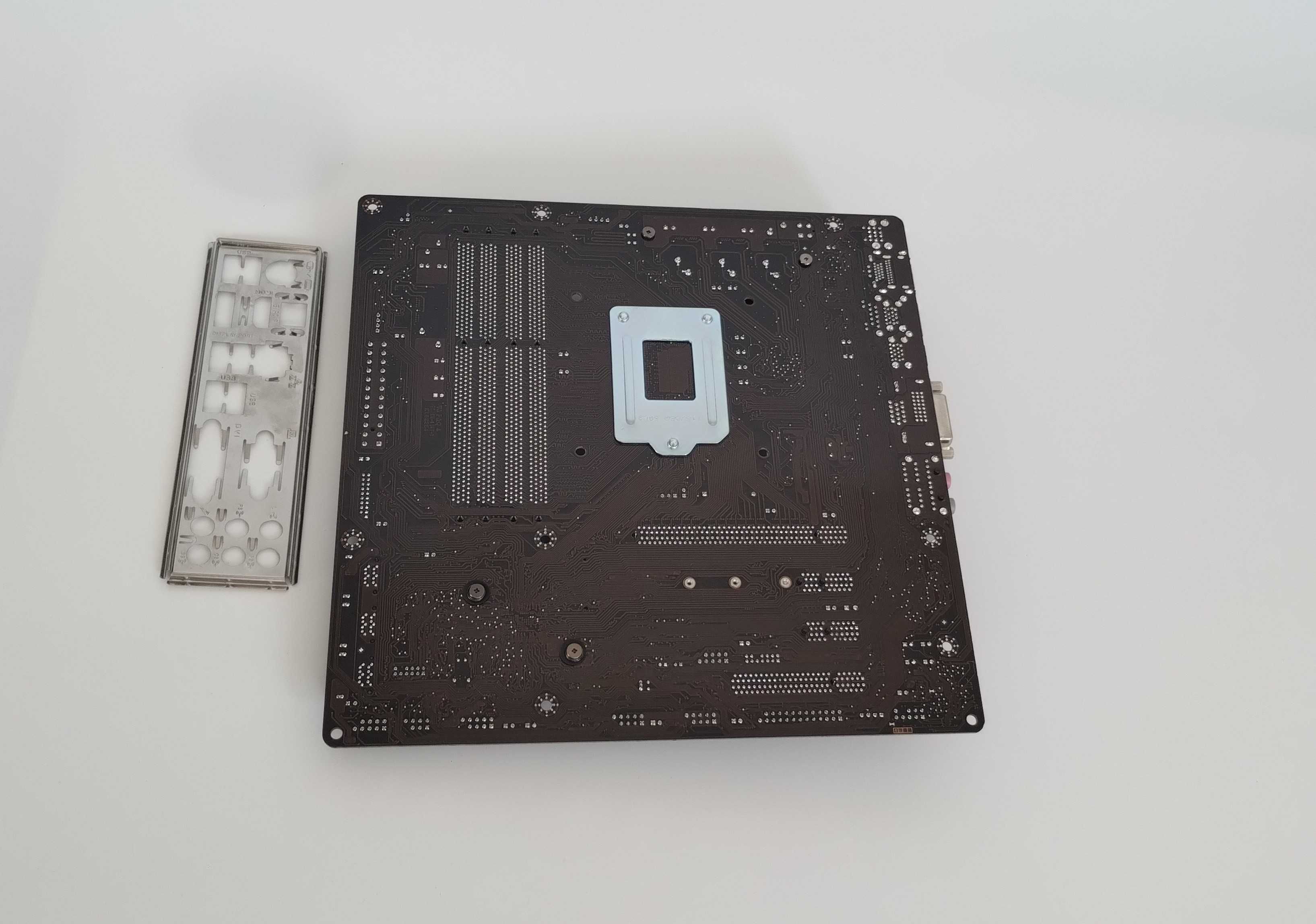

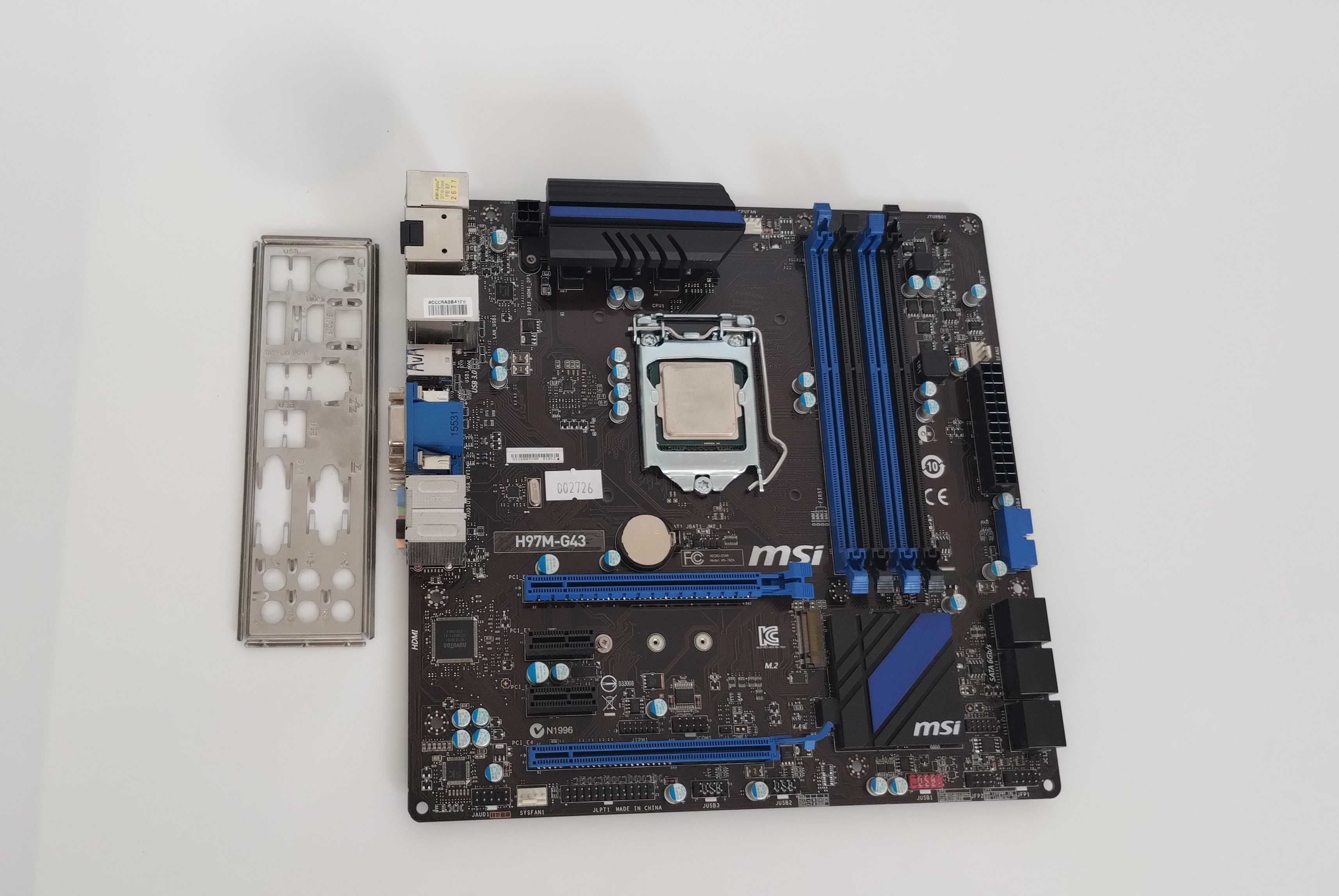

Płyta główna MSI H97M-G43 z procesorem Intel Core i3-4170
Stan: używana

CPU
• Supports 4th and 5th Generation Intel® Core™ Processors, and Intel® Pentium® and Celeron® Processors for Socket LGA1150
Please refer to CPU Support for compatible CPU; the above description is for reference only

Chipset
• Intel® H97 Express Chipset

Main Memory
• Support two DDR3 DIMMs 1066*******600 MHz, up to 16GB Max
- Dual channel memory architecture
- Supports non-ECC, un-buffered memory

Slots
• 1 x PCIe x16 slot
• 2 x PCIe 2.0 x1 slots
• 1 x PCI slot

On-Board SATA
• SATAIII controller integrated in Intel® H97 chipset
- Up to 6Gb/s transfer speed.
- Supports six SATAIII ports (SATA1~6) by H97
- Supports RAID 0, RAID1, RAID 5 and RAID 10 (optional)
- Supports Intel Smart Response Technology (optional)*
- Supports Intel Rapid Start Technology (optional)*
- Supports Intel Smart Connect Technology
* Supports Intel Core processors on Windows 7 and Windows 8

USB
• 6 x USB 3.0 ports (4 ports on the back panel, 2 ports available through the internal USB connector)
• 6 x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Audio
• Chip integrated by Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec

LAN
• Supports Gb LAN 10/100/1000 by Realtek® RTL8111G

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 6 x SATA connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x 3-pin system fan connector
- 1 x Front panel audio connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x TPM connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper

Back Panel I/O Ports
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI™ port
- 4 x USB 3.0 ports
- 2 x USB 2.0 ports
- 1 x LAN (RJ45) port
- 3 x audio jacks

24.4 x 22.5cm Micro-ATX Form Factor
