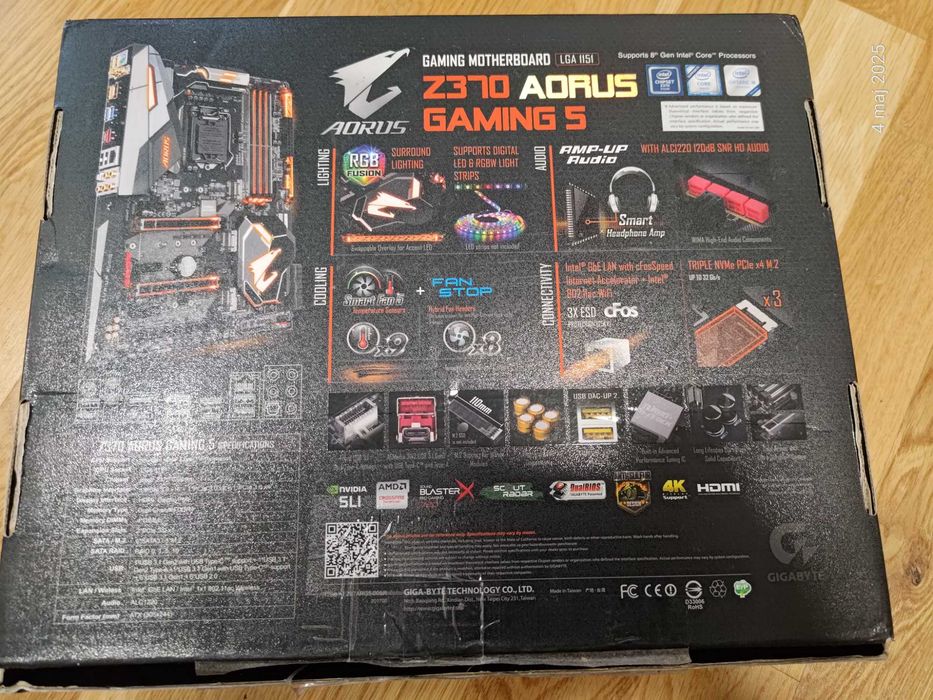

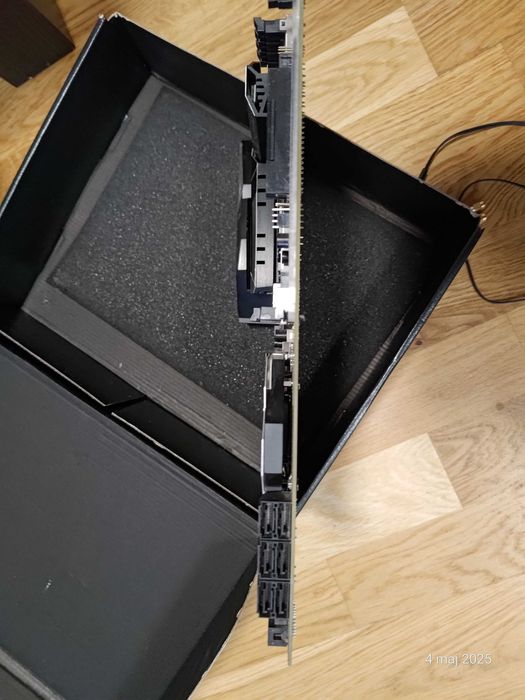

Płyta główna Gigabyte Aorus Z370 Gaming 5 WIFI. Płyta jest gotowa do użycia. W pełni sprawny!

Description:
CPU
Supports 8th generation processors in LGA1151 socket: Intel Core i7 processor / Intel Core i5 processor / Intel Core i3 processor
L3 cache depends on CPU

Chipset
Intel Z370 Express Chipset

RAM
4 DDR4 DIMM slots, support up to 64 GB
Supports dual-channel memory technology
Support DDR4 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) ) / 3300(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2666 / 2400 / 2133 MHz
Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory (operating in non-ECC mode)
Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
Supports Extreme Memory Profile (XMP) memory

Display function
Built-in display capable processor - supports Intel HD Graphics:
1 DisplayPort interface, can support up to 4096x2304_60 Hz resolution
* Supports DisplayPort version 1.2, HDCP 2.2 and HDR.
1 HDMI port, can support resolution up to 4096x2160_30 Hz
* Support HDMI 1.4 version and HDCP 2.2.
Supports *Maximum Shared Display Memory*1 GB

Sound effect
Built-in Realtek ALC1220 chip
Supports Sound BlasterX 720°
Support High Definition Audio
Support 2/4/5.1/7.1 channel
Support S/PDIF output

The internet
Built-in Intel GbE network chip (10/100/1000 Mbit)

Wireless communication module
Wi-Fi 802.11 a/b/g/n/ac, supports 2.4/5 GHz wireless dual-band
BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
Support 11ac wireless communication standard, can support transmission speed up to 433 Mbp

Expansion slot
1 PCI Express x16 slot, supporting x16 running specification (PCIEX16)
* To maximize the performance of the graphics card, be sure to install a *PCIEX16 slot when installing a graphics card.
1 PCI Express x16 slot, supporting x8 running specification (PCIEX8)
* Since the PCIEX8 slot shares the bandwidth with the PCIEX16 slot, when a graphics card is installed in the PCIEX8 slot, the PCIEX16 slot operates at a maximum of x8 bandwidth.
1 PCI Express x16 slot, supporting x4 running specification (PCIEX4)
* Since the PCIEX4 slot shares the bandwidth with the M2P_32G socket, when an SSD is installed in the M2P_32G socket, the PCIEX4 slot operates at a maximum of x2 bandwidth.
3 PCI Express x1 slots
* Since the PCIEX1_3 socket shares the bandwidth with the SATA3 1 socket, when an expansion card is installed in the PCIEX1_3 socket, the SATA3 1 socket will not be available.
(All PCI Express slots support PCI Express 3.0)

Multiple Display Technology
Supports NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
Supports AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technology

Storage device interface
Built into the chipset:
2 M.2 sockets (support Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD) (M2M_32G, M2A_32G)
1x M.2 socket (support Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD) (M2P_32G)
6 SATA 6Gb/s sockets
Supports RAID 0, RAID 1, RAID 5 and RAID 10 functions

USB
Built-in chipset + ASMedia USB 3.1 Gen 2 controller:
1x USB Type-C port on the rear panel, supports USB 3.1 Gen 2
1x USB 3.1 Gen 2 Type-A port (red) on the rear panel

Built into the chipset:
1x USB Type-C port, supports USB 3.1 Gen 1, needs to be connected from the USB socket on the motherboard via a cable
6 USB 3.1 Gen 1 ports (4 on the rear panel, 2 need to be connected to the USB socket on the motherboard via a cable)
6 USB 2.0/1.1 ports (2 on the rear panel, 4 need to be connected from the USB socket on the motherboard via a cable)

Internal socket
1 24 PIN motherboard power socket
1 x 8 PIN CPU power socket
1 CPU fan header
1 CPU water cooling fan socket
4 system fan sockets
1 x 3 amp fan/pump socket
1 system fan/water pump socket
2 digital LED lights with power sockets
2 digital LEDs with voltage adjustment pins
2 RGB (RGBW) LED strip power sockets
3 M.2 Socket 3 sockets
6 SATA 3.0 ports
1 motherboard jumper socket
1 front audio jack
1 S/PDIF output socket
1 USB Type-C receptacle, supports USB 3.1 Gen 1
1 USB 3.1 Gen 1 socket
2 USB 2.0 sockets
1 security encryption module (TPM) socket (2x6 pin, only used with GC-TPM2.0_S)
1 Thunderbolt expansion daughter card socket
1 clear CMOS data pin
2 thermal wire pins

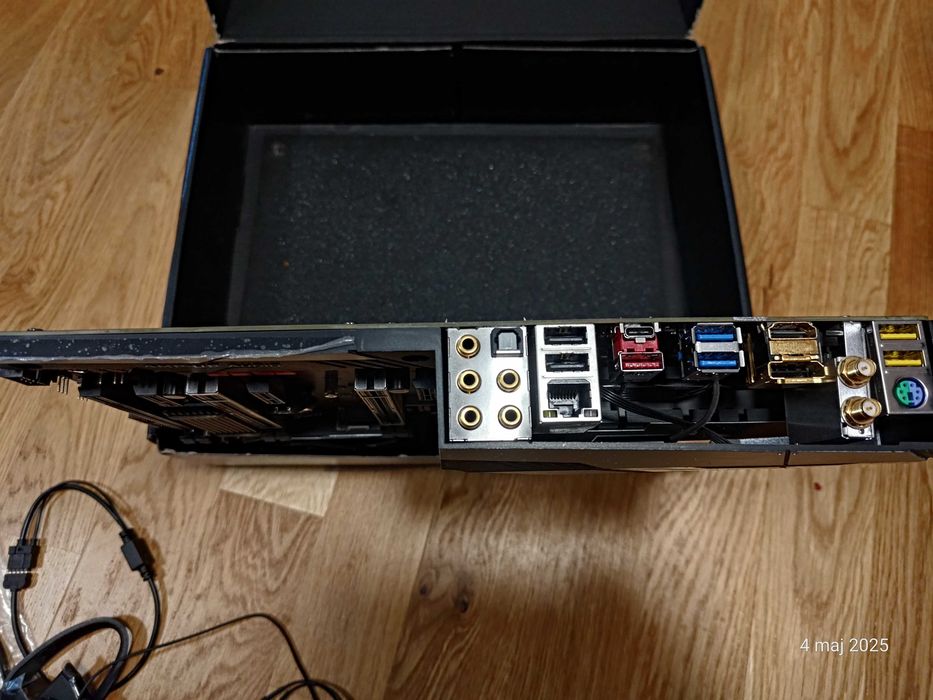

Rear panel unit connection socket
1 PS/2 keyboard/mouse interface
2 SMA antenna ports (2T2R)
1 DisplayPort interface
1 HDMI interface
1x USB Type-C port, supports USB 3.1 Gen 2
1 USB 3.1 Gen 2 Type-A port (red)
4 USB 3.1 Gen 1 ports
2 USB 2.0 ports
1 RJ-45 network cable interface
1 S/PDIF optical output socket
5 audio interfaces (center and subwoofer output, rear speaker output, audio input, audio output, microphone)

I/O Controller
Built-in iTE I/O controller chip

BIOS
2 x 128 Mbit flash
Use an authorized AMI UEFI BIOS
DualBIOS support
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

OS
Support Windows 10 64-bit

Form Factor
ATX; 30.5cm x 24.4cm

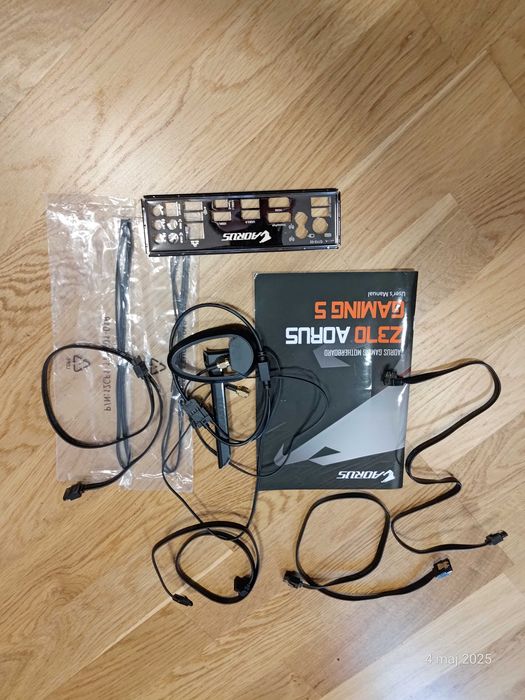

Package Included:
1 x Mainboard
1 x Users Manual
4 x SATA Kabel
1 x I/O Shield
1 x RGB (RGBW) LED strip extension cable
2 x thermistor cables
1 x WiFi antenna
