Mam do sprzedania płytę główną, procesor oraz pamięć RAM.

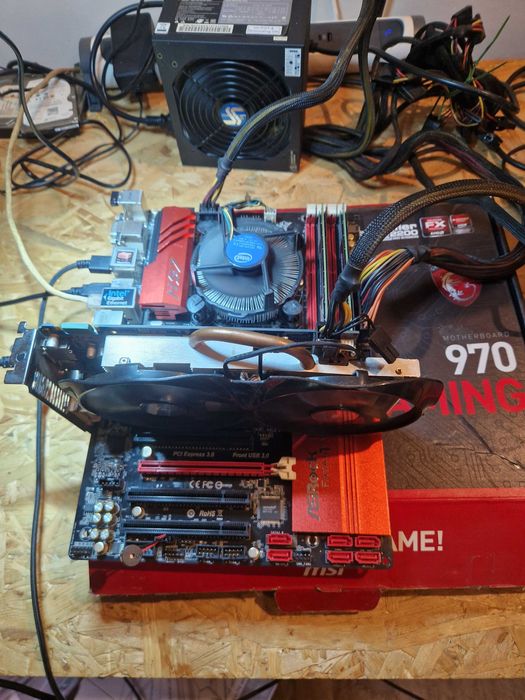

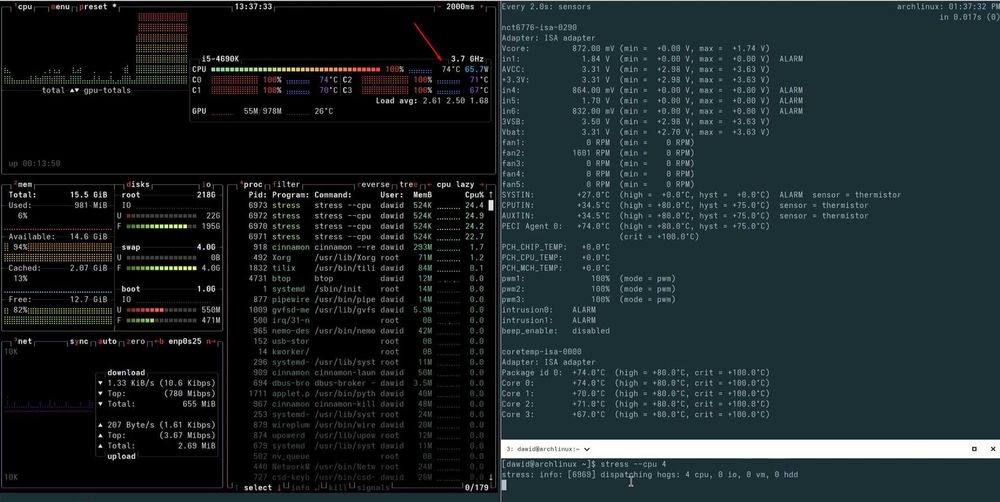

Sprzęt w 100% sprawny, mam przechwycone nagranie z obciążenia systemu (jeśli ktoś zainteresowany - link do YT na priv).

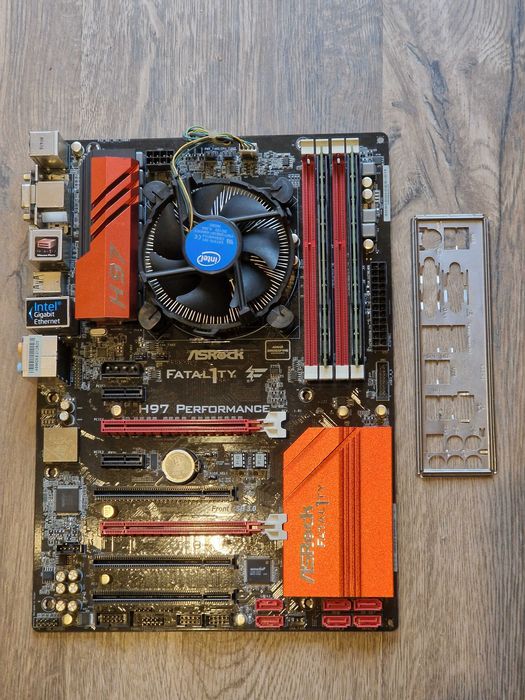

- ASRock Fatal1ty H97 Performance (plus maskownica portów)
- Intel Intel i5-4690K (oryginalny radiator z wentylatorem)
- 2x8GB Ballistix 1600MHz

Do testów płyty wymieniłem pastę pod radiatorem

O płycie ASRock Fatal1ty H97 Performance:
Gaming Armor
CPU Power
- Hi-Density Power Connector
Memory
- NexFET™ MOSFET
VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE2)
- PCIe Power Connector
Internet
- Intel® LAN
Cooling
- XXL Aluminum Alloy Heatsink
Audio
- Purity Sound™ 2
Cechy szczególne
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- NexFET™ MOSFET
- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB
ASRock Full Spike Protection
ASRock Cloud
ASRock APP Shop
CPU
- Supports 5th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
- Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
- Digi Power design
- 8 Power Phase design
- Supports Intel® Turbo Boost 2.0 Technology
Chipset
- Intel® H97
Pamięć
- Dual Channel DDR3/DDR3L Memory Technology
- 4 x DDR3/DDR3L DIMM Slots
- Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel® Ekstremalny Profil Pamięci (XMP) 1.3 / 1.2

*Z powodu ograniczeń system operacyjnego, rzeczywisty rozmiar pamięci może być mniejszy niż 4GB dla rezerwacji przez system Windows® 32-bit. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 2 x 64Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 1.1 Compliant wake up events
- SMBIOS 2.3.1 Support
- CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment
Karta graficzna
- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
- Pixel Shader 5.0, DirectX 11.1
- Max. shared memory 512MB*
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI with max. Rozdzielczośćup to 4K x 2K (4096x2304) 24Hz
- Supports DVI-D with max. Rozdzielczośćup to 1920x1200 60Hz
- Supports D-Sub with max. Rozdzielczośćup to 1920x1200 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D and HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports+
- 7.1 CH HD Audio with Ochrona Treści (Realtek ALC1150 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
- Supports Purity Sound™ 2
- Nichicon Fine Gold Series Audio Caps
- 115dB SNR DAC with differential amplifier
- TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
- Direct Drive Technology
- EMI shielding cover
- PCB isolate shielding
- Supports DTS Connect
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I218V
- Supports Intel® Remote Wake Technology
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Sloty
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
- 1 x PCI Express 2.0 x16 Slot (PCIE4: x4 mode)
- 2 x PCI Express 2.0 x1 Slots
- 3 x PCI Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™

*Jeśli sloty PCIE1 lub PCIE3 są zajęte, gniazdo PCIE4 będzie pracowało z prędkością x2.
Magazynowanie
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
Złącza
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED Header
- 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
- 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x PCIe Power Connector
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector*
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

*Proszę zaktualizować BIOS do najnowszej wersji, aby uzyskać możliwość obsługi technologii Thunderbolt™.
Tylny panel
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
- 4 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Oprogramowanie i UEFI
Software
- ASRock F-Stream
- ASRock Disk Health Report
- ASRock USB Key
- ASRock Key Master
- ASRock System Browser
- ASRock APP Charger
- ASRock XFast RAM
- ASRock Restart to UEFI
UEFI
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock UEFI Guide
- ASRock Funkcja Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI Tech Service
- ASRock Dehumidifier
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer
Akcesoria
- I/O Shield
- 2 x SATA Data Cables
Hardware Monitor
- CPU, Chassis temperature sensing
- CPU, Chassis, Power Fan Tachometer
- CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU, Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Wymiary
- ATX Form Factor
- High Density Glass Fabric PCB
System operacyjny
- Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
