Manufacturer: Pioneer
Model: SR-202 W
Type: Reverb amplifier
Years of manufacture: 1972 - 1976
Made in: Japan
Color: Silver, wooden cabinet
Power consumption: 9 W
Dimensions: 322 x 140 x 263 mm (W x H x D)
Weight: 4.6 kg
Original price approx.: 140 US-$, 500 DM

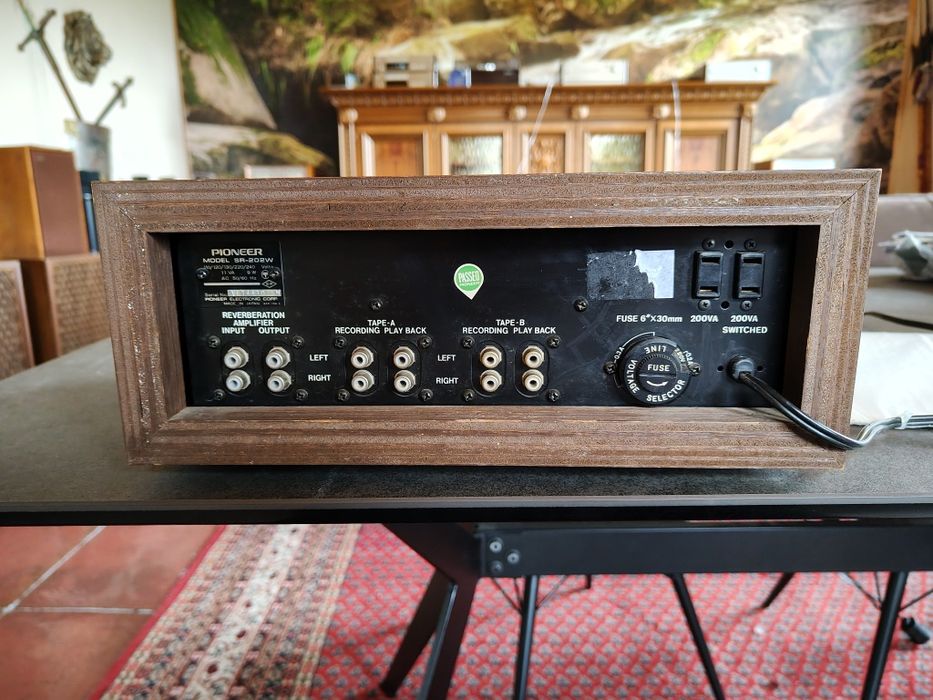

Connections

Number of inputs: 3
Line: 200mV, reverb time minimum 300kOhm, max. 3 V (at 1kHz, reverb level control:0)

Tape Play 1: 200mV, reverb time minimum 300kOhm, max. 3 V (at 1kHz, reverb level control:0)
Tape Play 2: 200mV, reverb time minimum 300kOhm, max. 3 V (at 1kHz, reverb level control:0)
Number of outputs: 3
Line: 330mV
Tape Rec 1: 330mV, 10 kOhm (1 kHz)
Tape Rec 2: 330mV, 10 kOhm (1 kHz)

Technical Data

Reverberation time (Reverb): 0 - 2.5 sec (1 kHz).
Frequency response:
reverb time minimum: 20Hz to 35kHz ± 2dB
Reverb time maximum: 20Hz to 50kHz ± 10dB Total harmonic distortion: 0,2% (Hallzeit Minium und max. bei 330 mV)

Maximaler Ausgangspegel: 6,5V
Rauschabstand: >65dB at 330 mV output voltage

Special Features

5 position switch for reverberation only/and loudspeakers, only/and tapes

Remarks
Other models in the same series:
Pioneer SR-60
Pioneer SR-101
Pioneer SR-202
Pioneer SR-202 W
Pioneer SR-303
