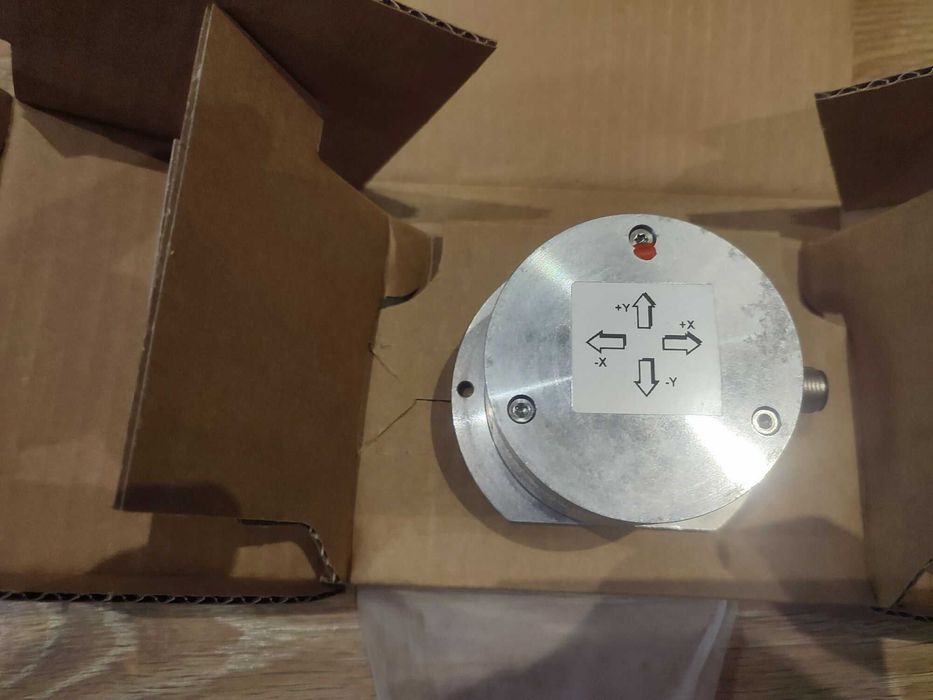

Żyroskop 2 osiowy ags030-2-sc1-h0-p8m (posiadam 2 sztuki)

General Specifications
Application 2-Axes Position Monitoring and Leveling
Measurement Range ± 30°
Absolute Accuracy ±0.02°
Resolution 0.01°
Electrical Specifications
Supply Voltage 10 – 30 VDC
Current Consumption ≤ 100 mA 5V, ≤ 45 mA 10V, ≤ 25 mA 24V
EMC: Emitted Interference DIN EN 61000-6-4
EMC: Noise Immunity DIN EN 61000-6-2
Reverse Polarity Protection Yes
Short Circuit Protection Yes
MTTF 300 years
Environmental Specifications
Operating Temperature -40 °C (-40 °F) - +85 °C (+185 °F)
Storage Temperature -40 °C (-40 °F) – +85 °C (+185 °F)
Temperature Gradient 0.003°/ K
Protection Class IP66/IP67
Shock Resistance ≤ 300 g (half sine 6 ms, EN 60068-2-27)
Vibration Resistance 10 – 150 Hz, 2.5 mm amplitude, 5 g const. Acceleration
Mechanical Specifications
Housing Material Aluminum
Weight 370 g (0.82 lb)
Interface
Interface Analog Voltage 0.5-4.5 V + RS232
Output Type Voltage 0.5 – 4.5 V
Output Driver RS232
Min Load Resistance 300 Ω
Transmission Rate RS232: min. 2400 Baud; max. 57600 Baud
Default Transmission Rate RS232: 9600 Baud
Linearity ± 0.02%
Electrical Connection
Connection Type Connector M12 (5 pin)
Connector M12, Male, 8 pin, a coded
Product Life Cycle
Product Life Cycle Discontinued

www.posital.com/en/products/inclinometers/tiltix-product-finder/AGS030-2-SV1-H0-P8M/111252801/detail.php
