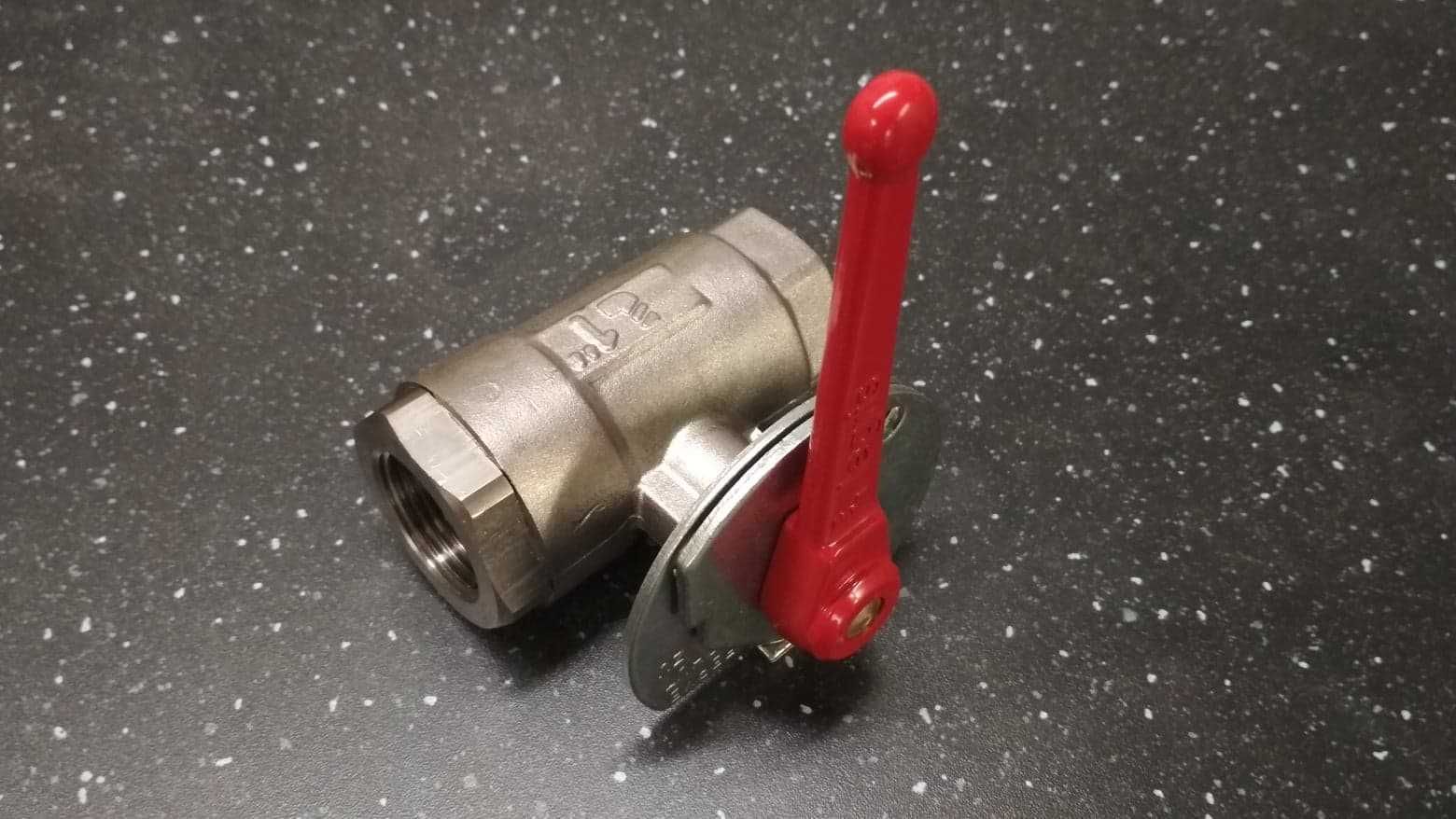

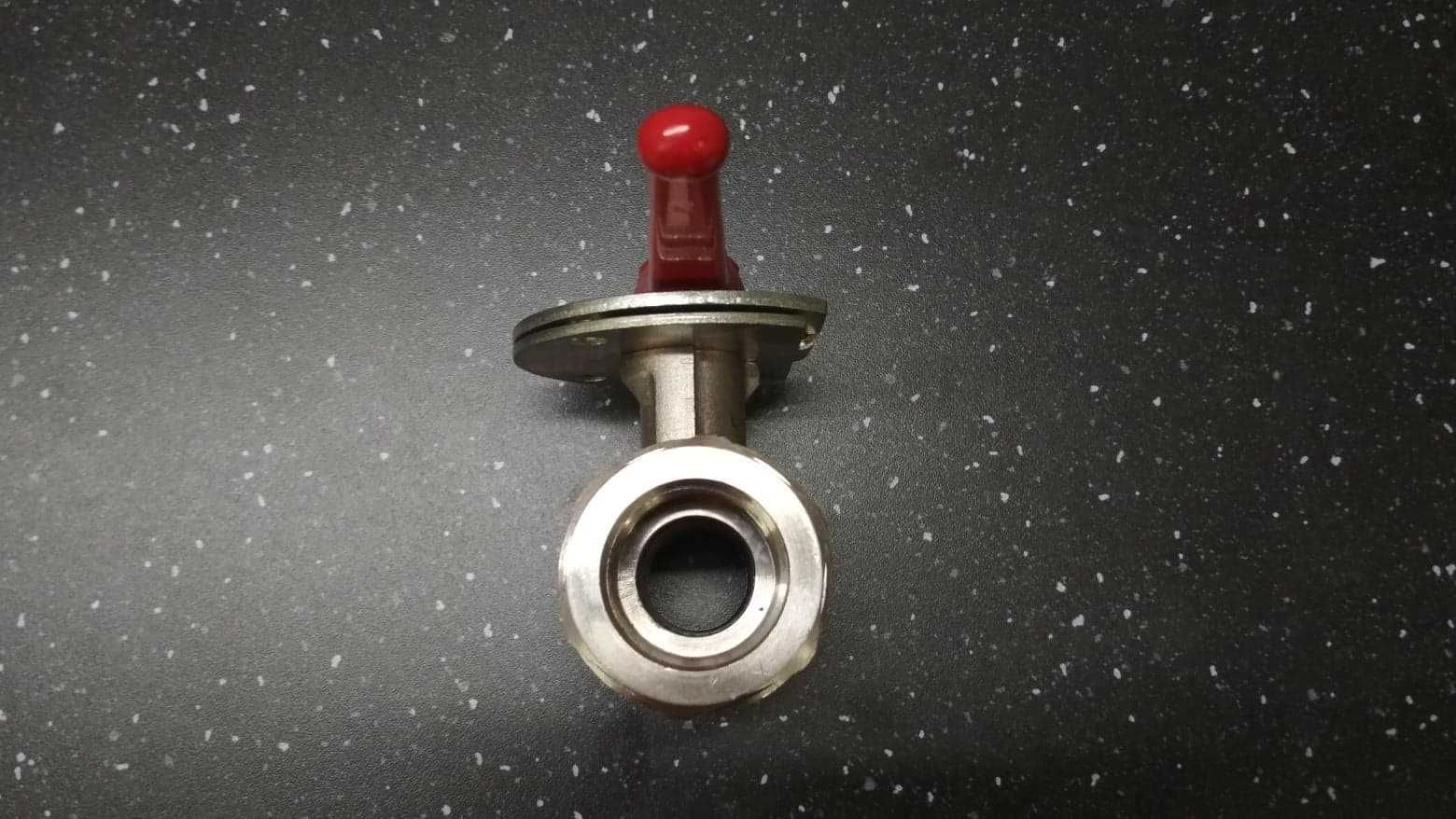

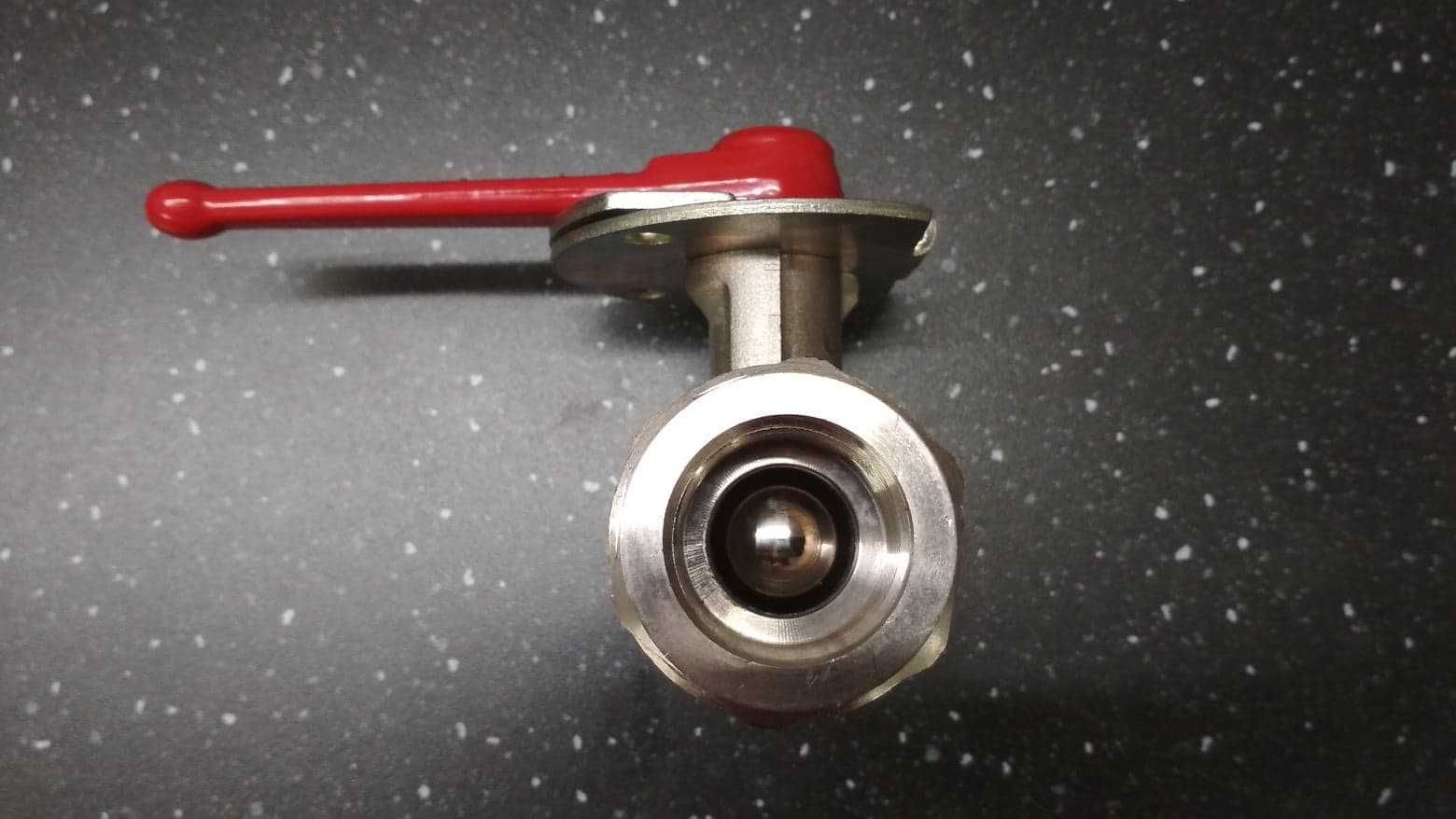

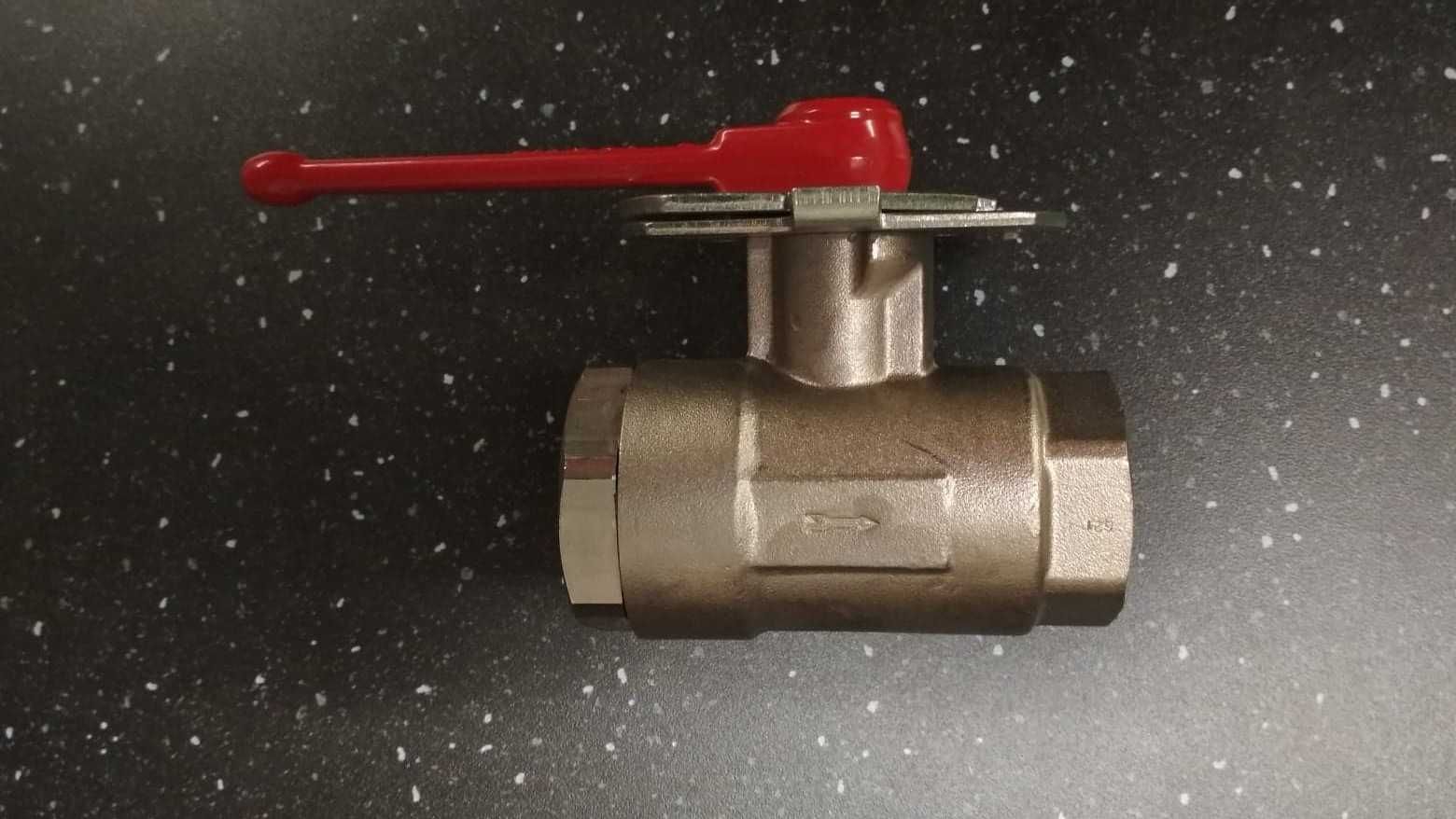

Zawór kulowy Parker Legris 0439 23 34

Nowe w opakowaniach.

Dostępne 18 sztuk. Cena w ogłoszeniu podana za 1szt.

Uniwersalny zawór o wielu zastosowaniach do przemysłu i budownictwa.

Odbiór osobisty na terenie Wrocławia lub wysyłka.

Specyfikacja techniczna ze strony producenta:
Connection 1 Thread Size (metric):G1
Ball Material:na
Nut Material:na
Sleeve Material:na
Connection 1 Thread Style:BSPP
Diameter Nominal (DN):23
Connection 2 Tube O.D. (mm):na
Handle:ZAMAK
Shape:3/2 in-line vented lockable ball valve female
Product Type:Universal Series, Lockable
Brand:Legris
Division:Low Pressure Connectors Europe Division
Industry:Industrial Manufacturing Equipment
Application:Pneumatics, Process Control, Safety, Fluid Control
Technology:Fluid & Gas Handling, Process Control, Pneumatics
Product Type:Ball Valves
Product Style:Vented lockable Female Ball Valve
Product Series:Universal Series
Function:3-Way
Operation Type:Lever-operated
Shape:In-line
Maximum Operating Pressure:Vacuum to 40 bar, Vacuum to 580.16 psi, Vacuum to 4 MPa
Maximum Flow Rate:n/a L/min
Flow Rate:n/a L/min
Connection Type:BSPP
Connection Size:G1
Orifice Size:23 mm
Configuration:3/2
For Fluid Type:Air, Inert Gas, Water
Minimum Operating Temperature:-20 °C
Maximum Operating Temperature:80 °C
Mounting Type:In-Line
Actuation Type:Manual
Specifications Met:DI: 97/23/EC (module PED A - diameters greater than 25 mm), DI: 2006/42/EC (Machinery Directive), RoHS, REACH
Body Material:Nickel Plated Brass
Seat Material:Rilsan Graphited
Seal Material:NBR
Stem Material:Brass
O-Ring Material:NBR
Handle Type:Red long lever (ZAMAK)
Weight:1.185 kg, 2.612 lb
Quantity per Box:2
Region of Origin:France
Stem Seal Material:NBR
Ball Seal Material:NBR

Poniżej link ze specyfikacją ze strony producenta:
ph.parker.com/us/en/ball-valves-universal-series/0439-23-34
