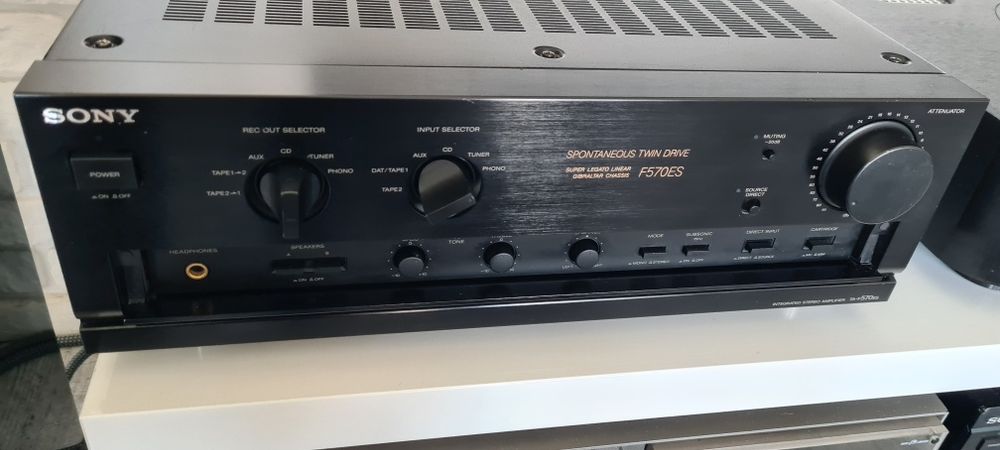

Wzmacniacz stereo z możliwością podłączenia 2 par kolumn.
Znana i ceniona seria ES. Bardzo ładny stan wizualny. Technicznie wszystko sprawne.

Zapraszam na odsluch.

Model: TA-F570 ES
Type: Integrated amplifier
Years of manufacture: 1991 - 1992
Color: Black
Power consumption: 260 W
Dimensions: 430 x 150 x 375 mm (WxHxD)
Weight: 12 kg
Original price approx.: 700 DM

Technical data

continuous power (at distortion factor)
4 Ohm: 2 x 120 W at 0.01%
6 Ohm: 2 x 95 W at 0,006%
8 Ohm: 2 x 90 W at 0.004% *dynamic power (at distortion factor)

Dynamic power (with distortion factor)
4 Ohm: 2 x 175 W at 0.01% ** 6 Ohm: 2 x 115 W at 0.01% ** 8 Ohm: 2 x 175 W at 0.006

6 Ohm: 2 x 115 W at 0.006% *dynamic power (with distortion factor)
8 Ohm: 2 x 100 W at 0.004% *Phono input (switched)

Phono input (switchable MM or MC).
Chinch inputs and outputs gold-plated
Headphone jack (jack 3.5 mm) gold-plated
REC-Out selector.

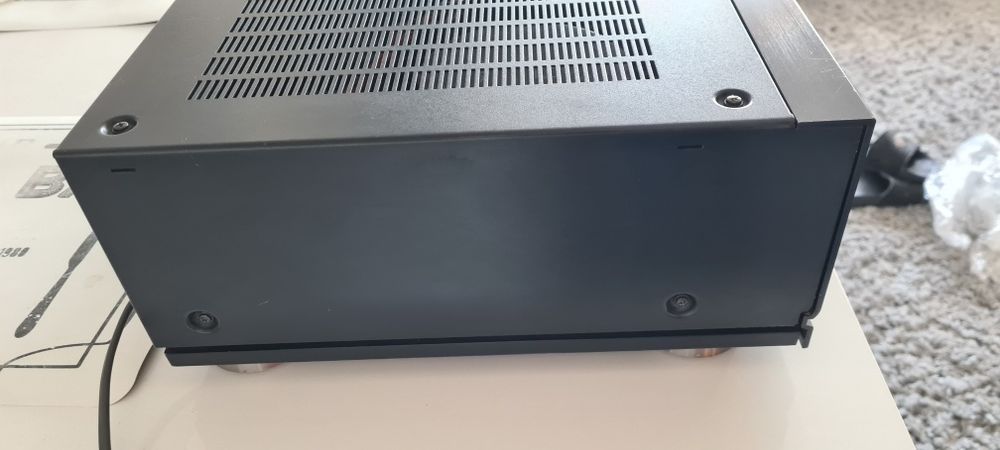

Housing is satin black and full metal.
Damping factor: 100
Frequency response: 10Hz - 100kHz
Tone control: yes, can be switched off
Bass: at 100Hz +-7db
treble: at 10kHz +-6db

Loudness: no
High Filter: no
Mute: yes, -20db
Direct/Line-Straight: yes

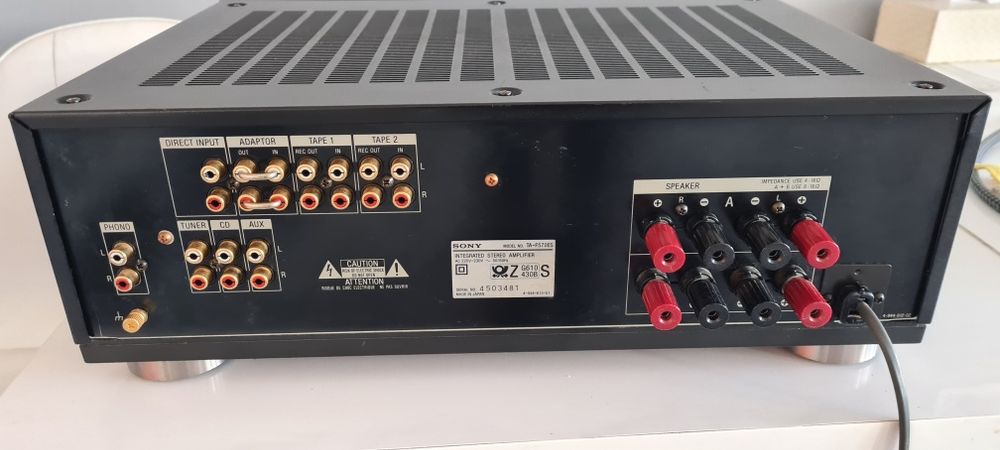

Connections
8 inputs: Tuner, CD, Direct In, Tape 1,2, Adapter, Aux (150mV, 20 KOhm), 1x Phono MM/MC (2,5mV, 50KOhm / 0,17mV, 100Ohm)
3 outputs: Tape 1,2 Adaptor (150mV, 1 kOhm)
The adaptor loop cannot be switched separately and must always be closed during normal operation. Accordingly, there are two jumpers for it on the rear panel.
The switchable Direct-In input bypasses the Input- and Rec-Out-Selector.
