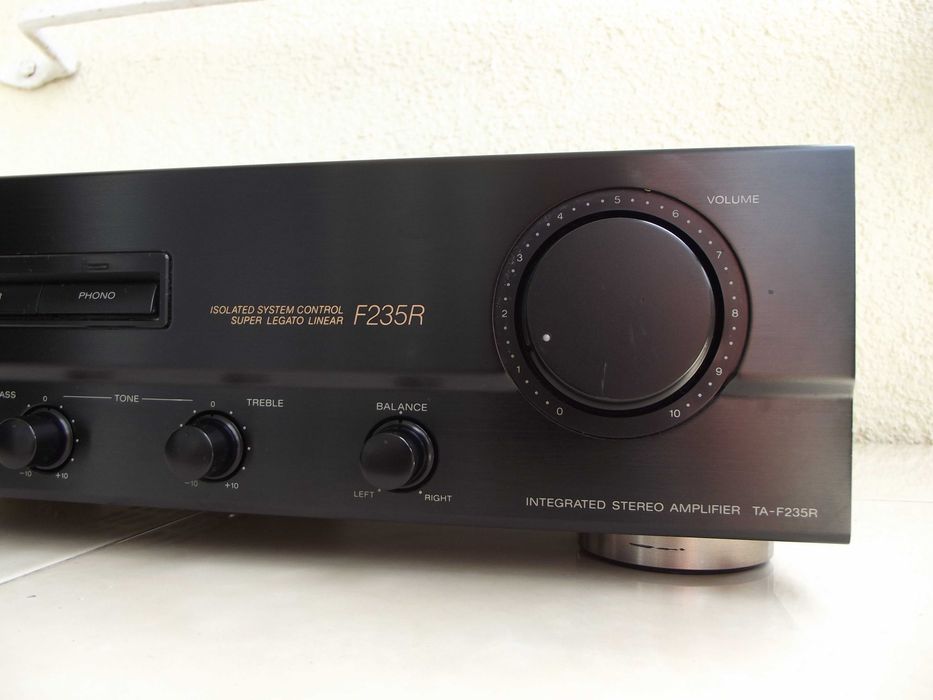

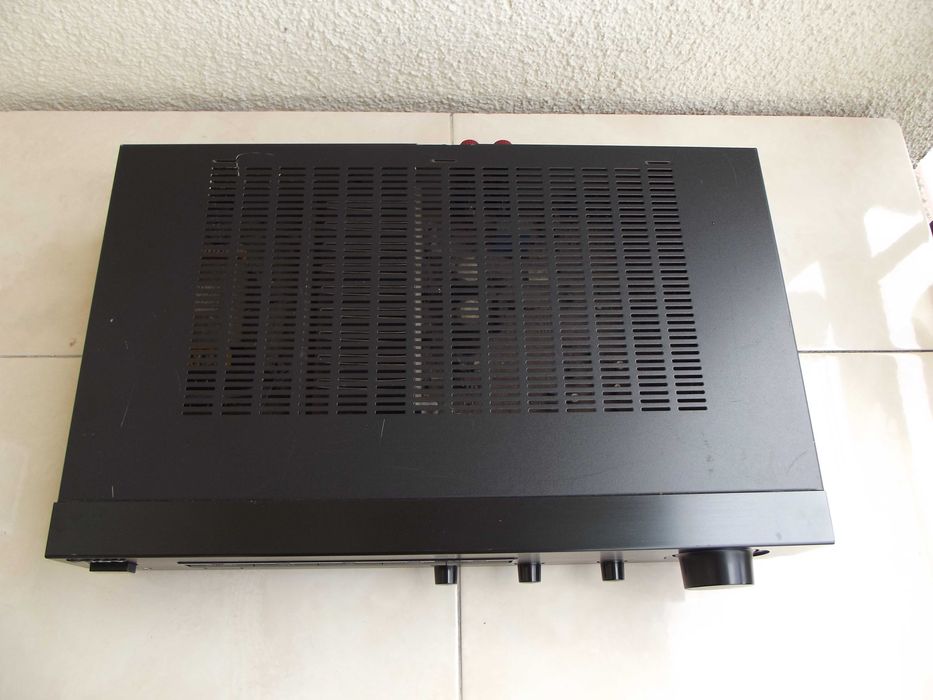

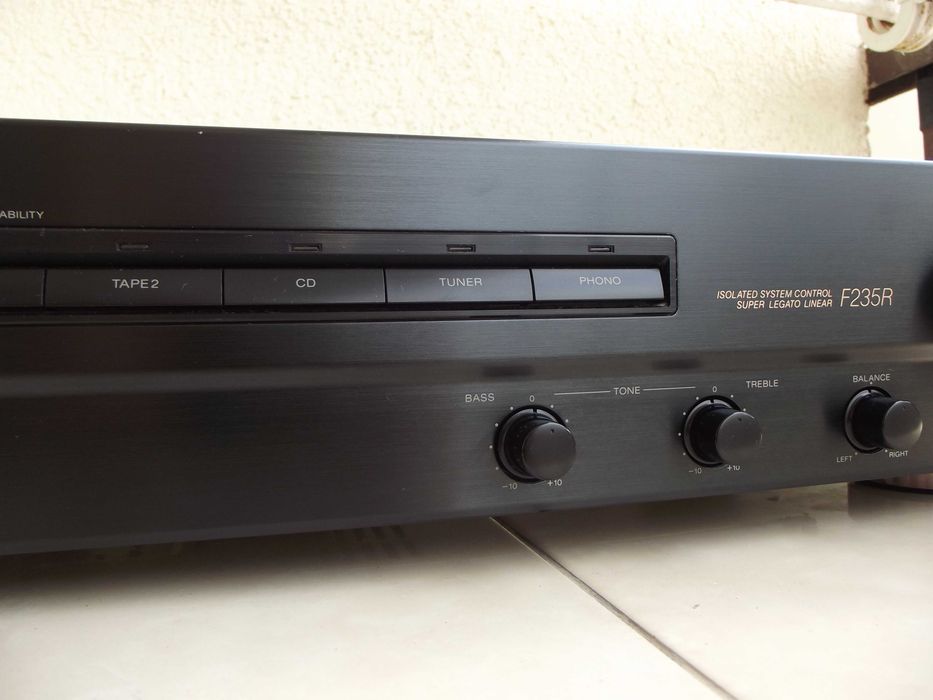

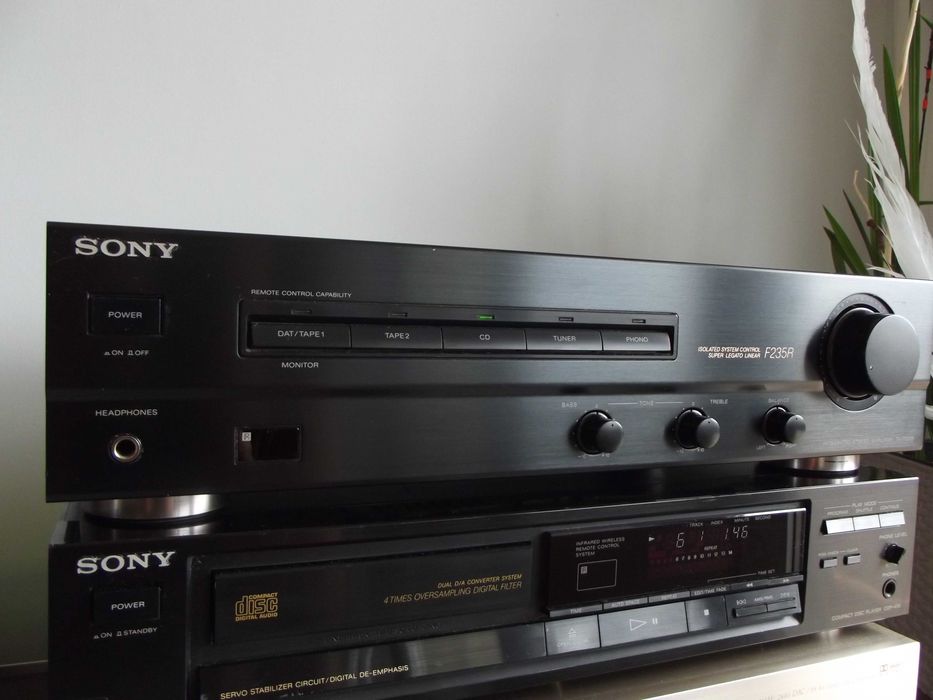

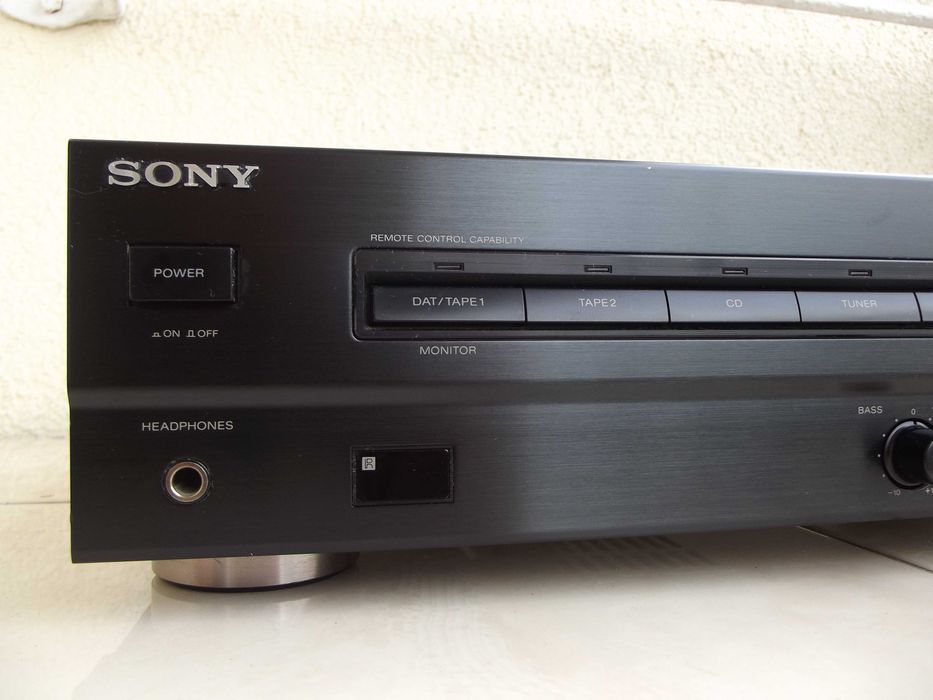

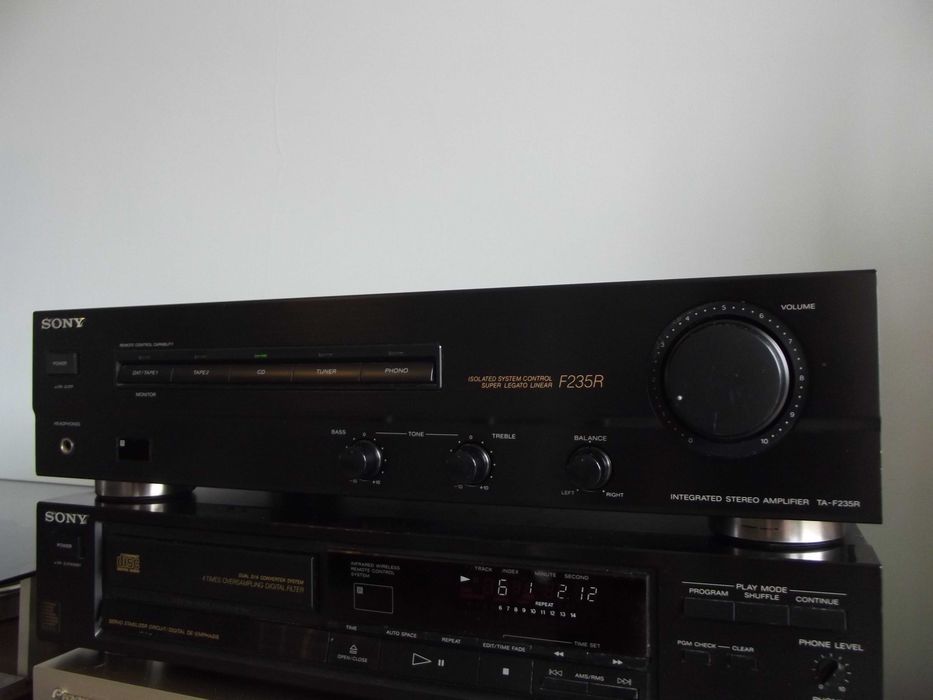

SONY TA-F 235 R

Made in Japan

Wzmacniacz w bardzo dobrym stanie czyściutki zadbany bez rysek czy otarć technicznie pracuje jak nowy potencjometry działają płynnie bez trzasków wszystkie wejścia sprawne dźwięk czysty przyjemny . Pilota brak bez problemu daje się nastroić pilotem wielozadaniowym .
szer - 43 cm
wys - 11,5 cm
głęb - 31 cm
waga ok 5 kg
Sprzęt można odebrać osobiście lub po wpłacie mogę wysłać kurier DPD koszt wysyłki 30 zł
Mój telefon 512 sześć siedem dziewięć 112

Zapraszam do zakupu oraz na inne moje aukcje.

Integrated Stereo Amplifier F235R TA-F235R

Sony Corporation; Tokyo

Country

Japan

Manufacturer / Brand

Sony Corporation; Tokyo

Year

1993/1994

Category

Audio Amplifier or -mixer

Number of Transistors

Semiconductors present.

Semiconductors

Main principle

Audio-Amplification

Wave bands

- without

Details

Remote Control (with wire or wireless)

Power type and voltage

Alternating Current supply (AC) / 120; 220; 240; 220-230 Volt

Loudspeaker

- This model requires external speaker(s).

Material

Metal case

from Radiomuseum.org

Model: Integrated Stereo Amplifier F235R TA-F235R - Sony Corporation; Tokyo

Shape

Book-shelf unit.

Dimensions (WHD)

430 x 115 x 310 mm / 16.9 x 4.5 x 12.2 inch

Notes

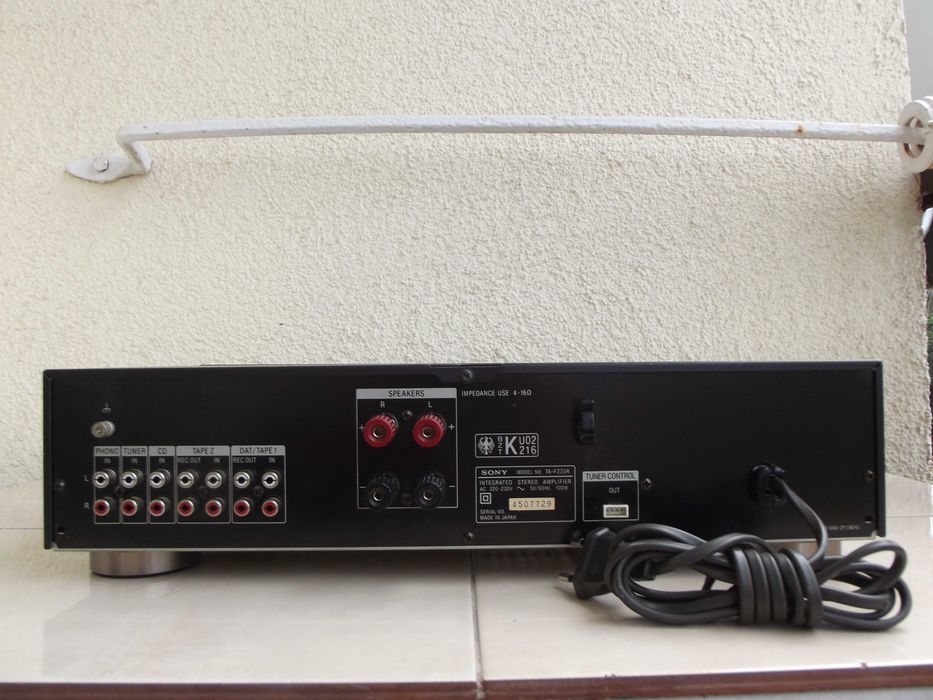

A hi-fi stereo integrated amplifier with infrared remote control (RM-S312), with power output of 30 watts RMS per channel into 8 ohms (or into 4 ohms, German model). Low-noise equalizer Preamplifier and pure-complementary SEPP OCL power amplifier with all stages directly coupled. With rotary controls for Bass, Treble, Balance and Volume, push button switches for Functions (DAT/Tape1, Tape2, CD, Tuner, Phono) and a jack for Headphones, on the rear, RCA phono sockets for input Phono (MM), Tuner and CD, for input/output DAT/Tape1 andTape2, Tuner Control output connection and terminals for 1 pair of loudspeakers.

Specification Continuous RMS power output Except for Germany 30W+30W, 20Hz-20kHz, THD 0.03% into 8Ω Germany 30W+30W, 20Hz 20kHz, THD 0.05% into 4Ω Input (Phono Jacks)
Sensitivity/impedance PHONO (MM)
TUNER, CD, DAT/TAPE1, TAPE2 2.0mV/50kΩ
150mV/150kΩ Signal to Noise PHONO (MM)
TUNER, CD, DAT/TAPE1, TAPE2 70dB
100dB Output REC OUT (Phono jack) Voltage/impedance 450mV/1kΩ HEADPHONES (Stereo phono jack) Low and high impedance headphones SPEAKERS 4-16Ω German model
8-16Ω Other models Harmonic distortion Less than 0.008% at 10W output Intermodulation distortion Less than 0.008% at 10W output Frequency response PHONO
TUNER, CD, DAT/TAPE1, TAPE2 RIAA equalization curve ±0.5dB
7Hz - 100kHz +0dB,-3dB Damping factor 50 (8Ω, 1kHz)

Versions/Power requirements

AEP models AC 220-230V 50/60Hz Germany model AC 220-230V 50/60Hz UK model AC 240V 50/60Hz Australian model AC 240V 50/60Hz E model AC 120/220/240V 50/60Hz with voltage selector

Power consumption: 100 watts

Almost the same as the later Sony TA-F245R Integrated Stereo Amplifier F245R.

Net weight (2.2 lb = 1 kg)

5 kg / 11 lb 0.2 oz (11.013 lb)
