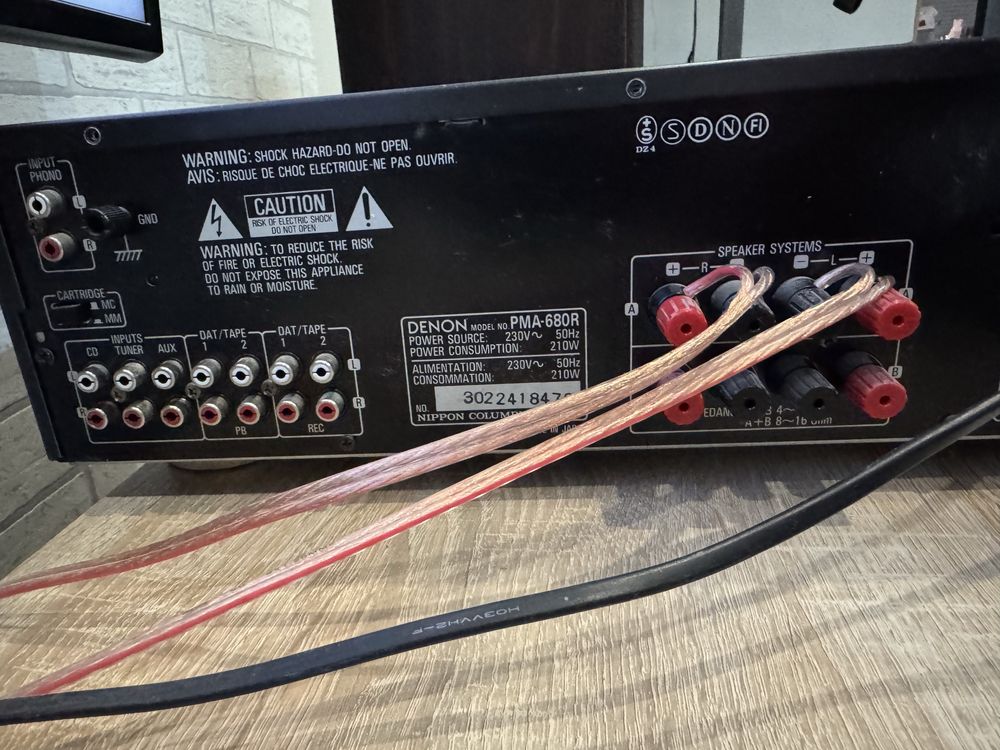

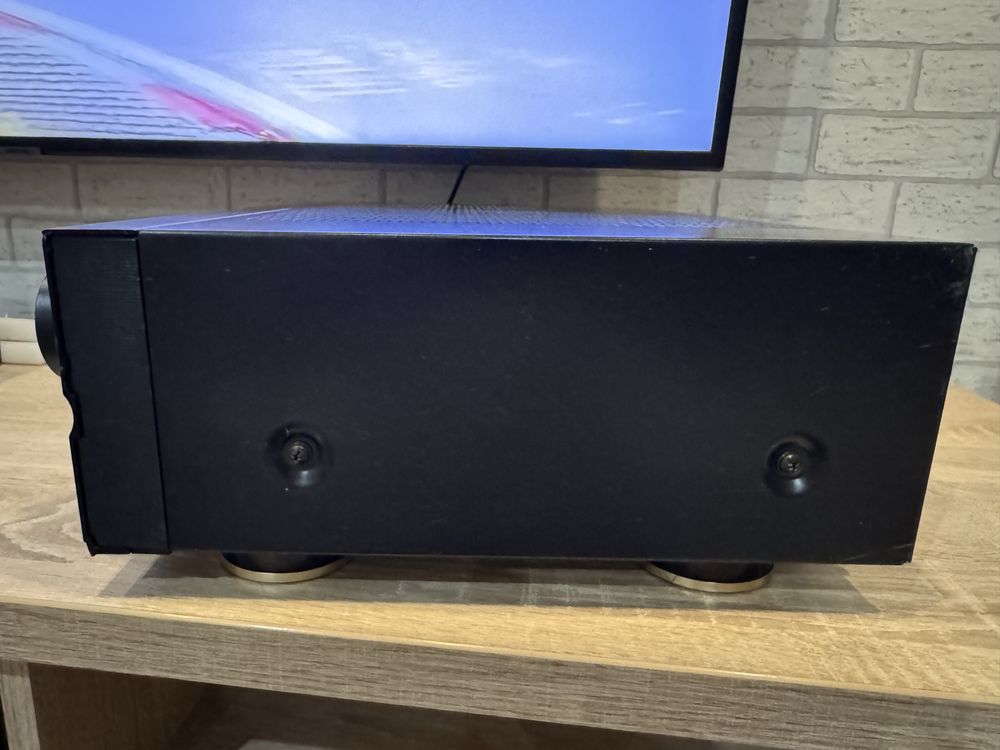

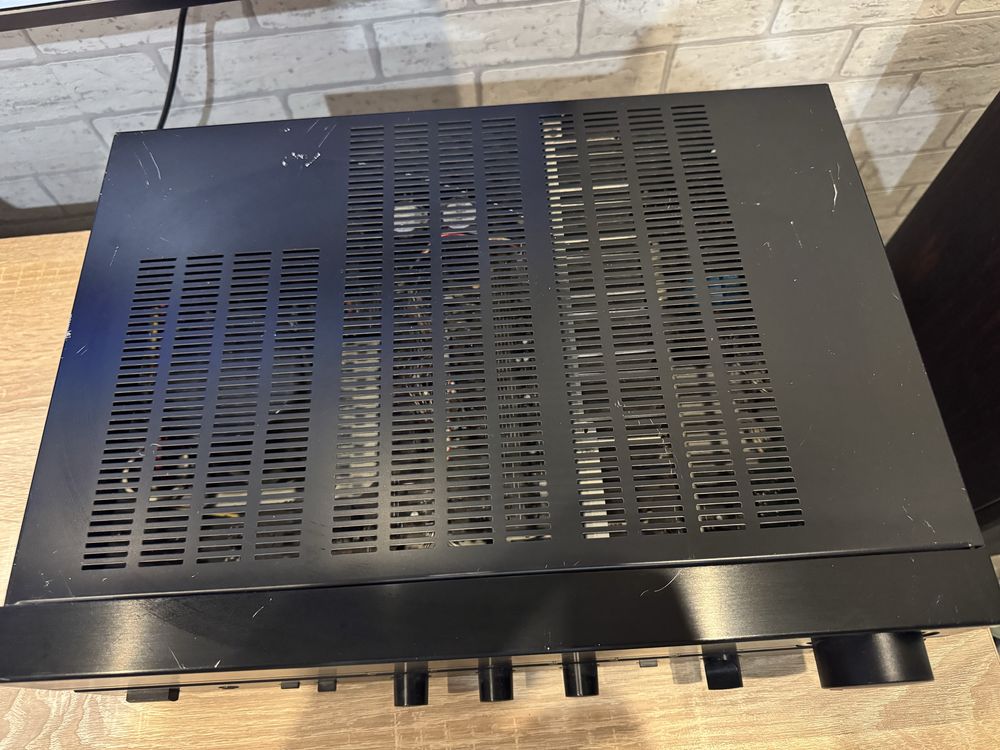

Denon PMA-680R w dobrym stanie. Rysy na górnej obudowie i z boku. Panel przedni OK. Taki już kupiłam. Gra bdb, czysto.
Type
Pre-main amplifier
Power Amplifier Unit
Rated output
85W + 85W (6 ohm, 1 khz)
65W + 65W (8 ohm, 20 hz to 20 khz)
Total harmonic distortion factor
0.008% (1 kHz, 32.5W, 8 Ω)
Dynamic Characteristics / Dynamic Power
180W + 180W (2 Ω)
140W + 140W (4 Ω)
Output bandwidth
5 Hz ~ 40 kHz (Output 32.5W, 0.07%, 8 Ω)
Line input frequency characteristic
4 Hz ~ 100 kHz + 0 -3dB (output 8 Ω, 1W)
Output terminal
AORb : 6 Ω ~ 16 Ω
A + B : 12 Ω ~ 16 Ω
Maximum headphone output
30 mW (8 Ω)
Preamplifier Section
Input Sensitivity / Impedance
Phono MM : 2.5mV/47k Ω
Phono MC : 0.2mV/100 Ω
CD, Tuner, Aux, DAT/Tape1, 2 : 150mV/47k Ω (source direct off)
CD, Tuner, Aux, DAT/Tape1, 2 : 150mV/10k Ω (source direct on)
Maximum Output / Rated Output
10V/150mV
Total harmonic distortion factor
0.001% (1 kHz, 1 V)
RIAA deviation
20 Hz to 20 kHz ± 0.3 dB
