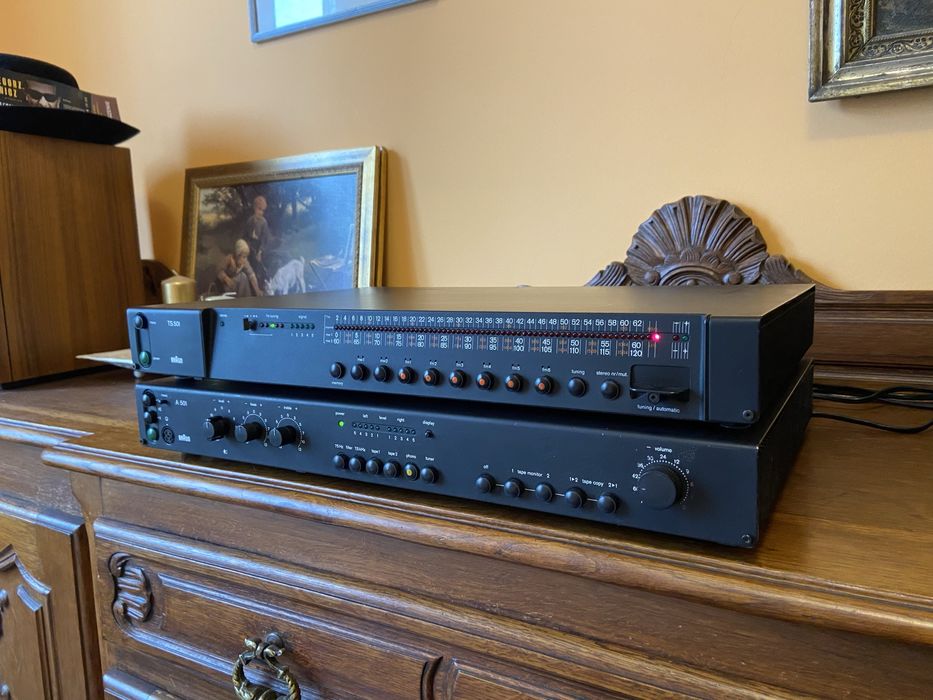

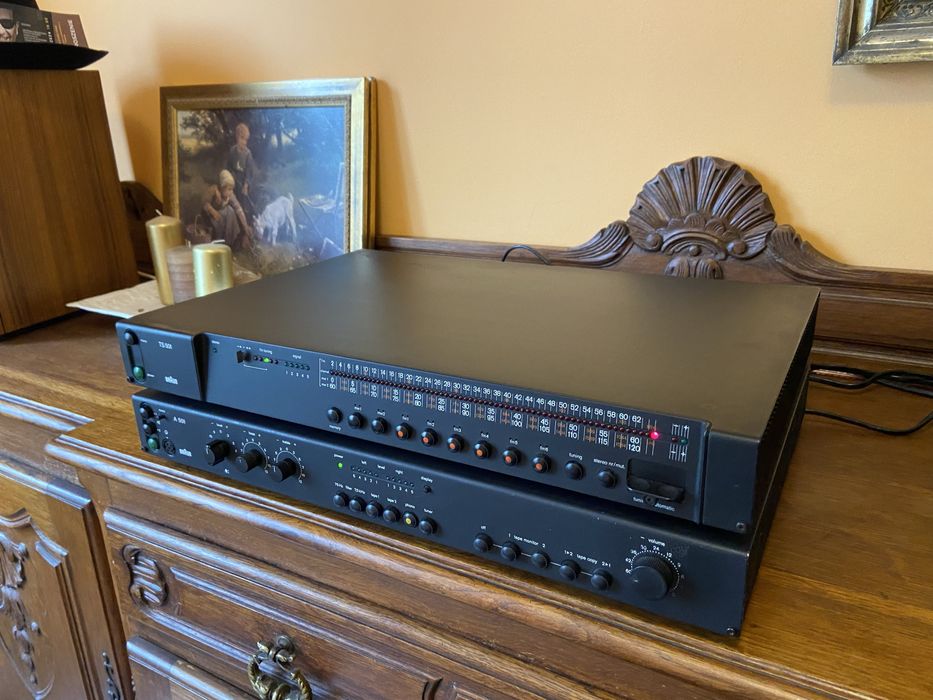

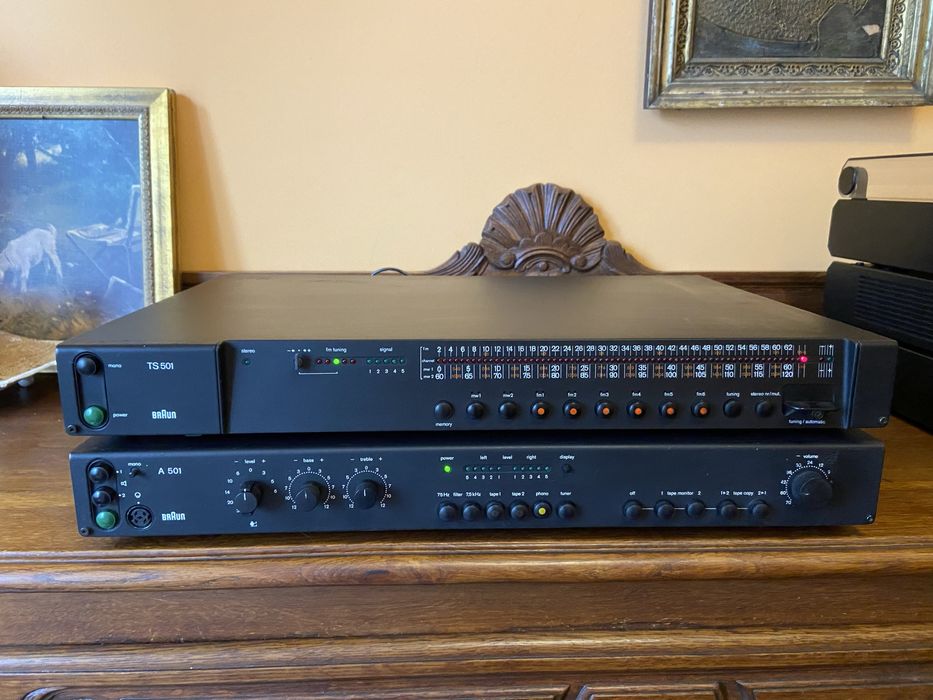

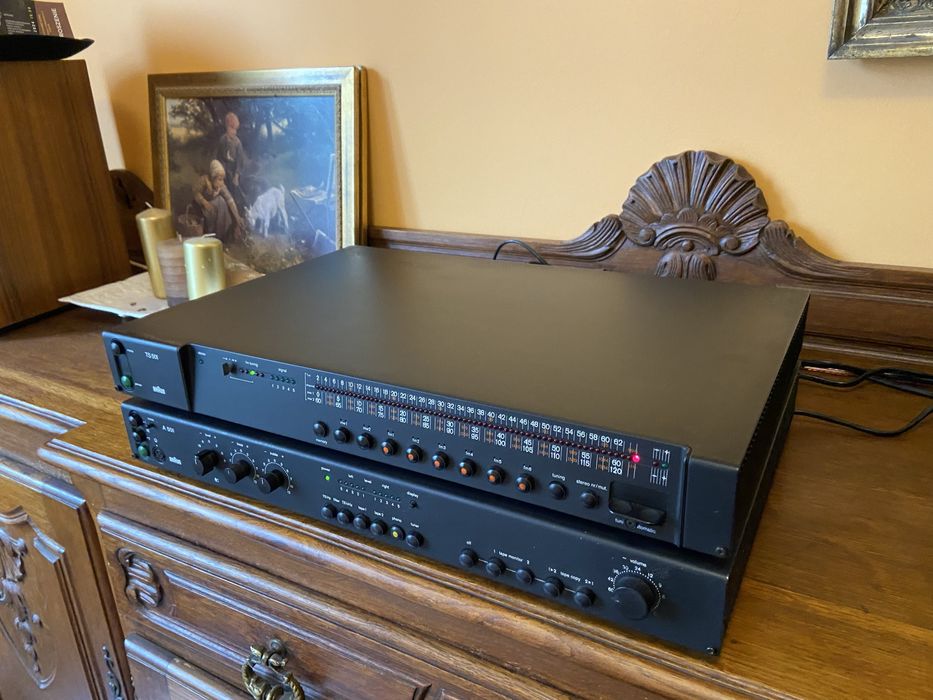

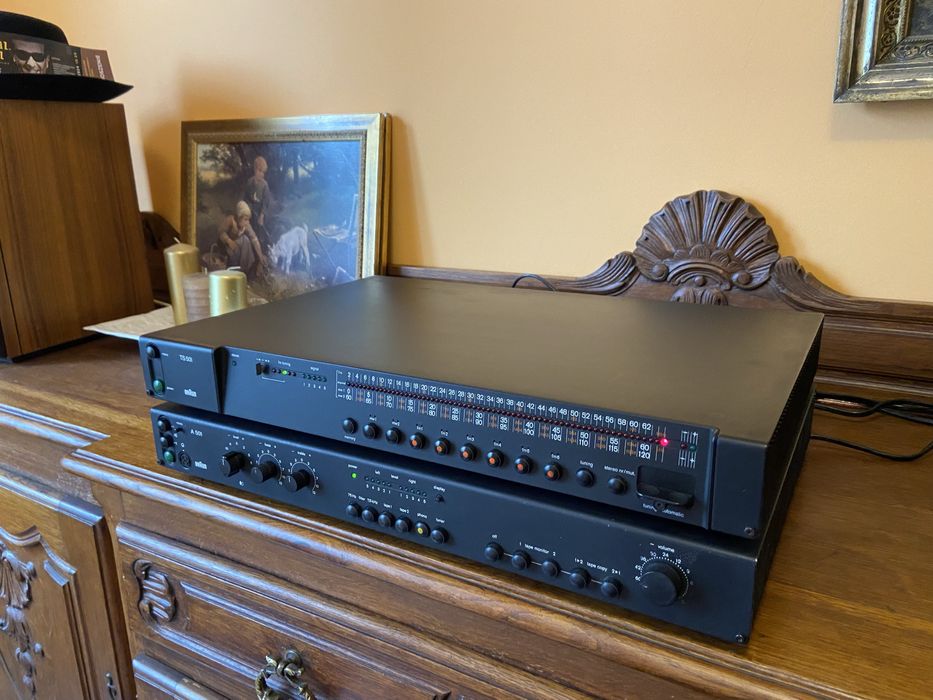

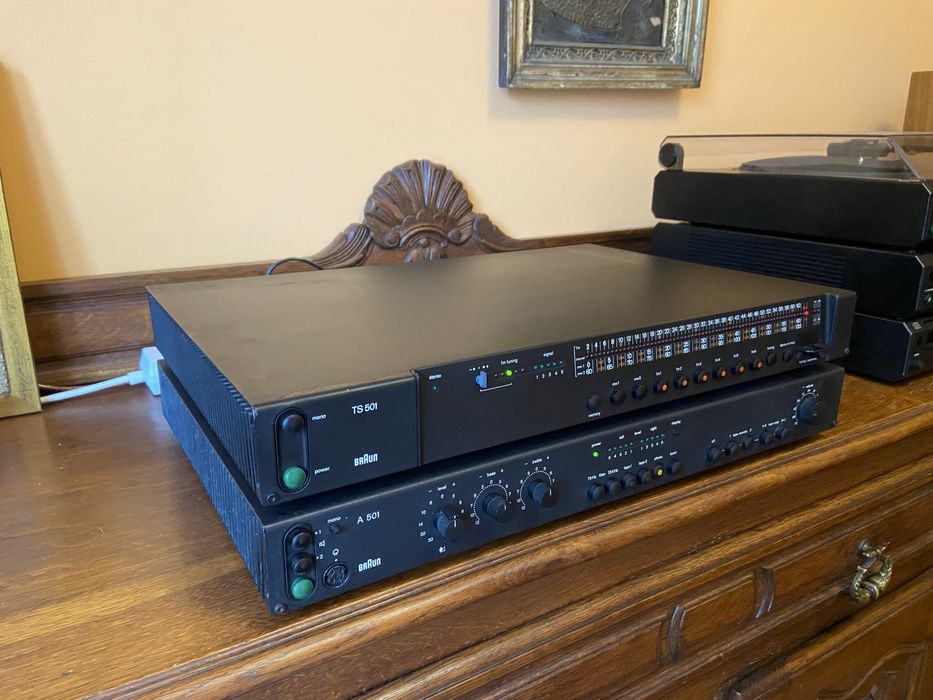

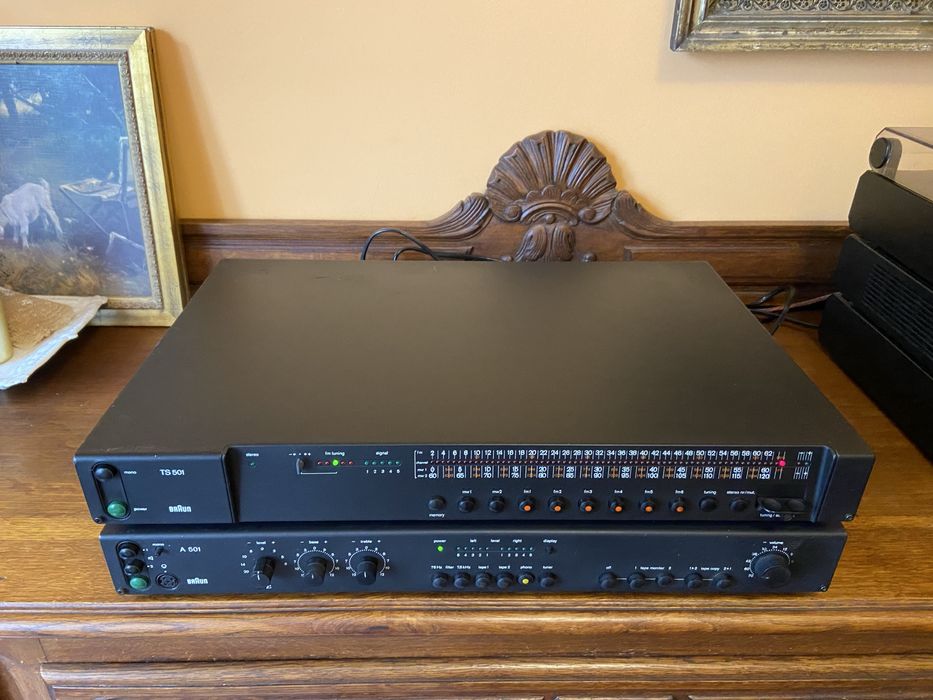

Wysokiej klasy tuner radiowy Braun TS-501, design zaprojektowany przez słynnego Dietera Ramsa.
Używany w bardzo dobrym stanie.
Sprawny, wszystkie funkcje działają.
Odbiera radio w stereo.
Wizualnie w ładnym stanie, jak na zdjęciach.

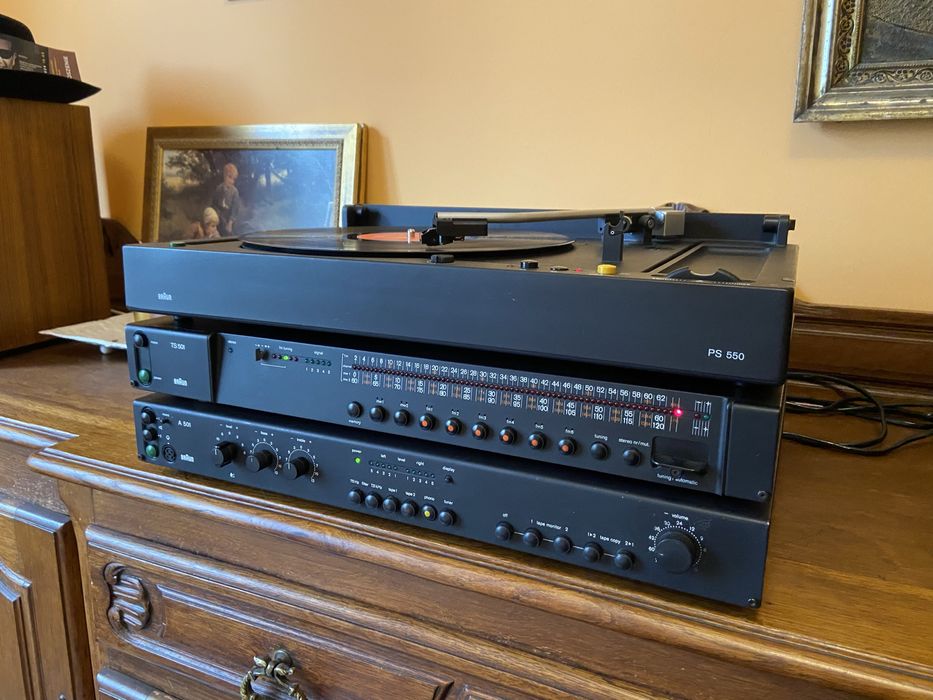

Posiadam także inne elementy tej wieży.
Wzmacniacz, gramofon oraz kolumny
Zapraszam do zakupu

Dane techniczne:

Dimensions (W x H x D):||500 mm x 65 mm x 345 mm||
Weight:||6 kg||
Manufacturer: BRAUN AG'
model: TS 501
years of construction: 1978 - 1980
Developed in: Germany, Kronberg
Manufactured in: Germany, Kronberg
Color:
Front/cover: metal - matt black or grey
Housing: Die-cast - matt black
Remote control: no
Power consumption: 20 W
New price: 1198.- DM (612.- €)
Connections:
number of outputs: 1
DIN
1 V
Number of inputs: 2
Antenna
300300 / 75 Ohm (FM and AM)
IEC antenna connector
Technical data:
Frequency response: (+/- 3 dB)||20Hz ... 15 kHz||
Reception:
VHF
MW
AM
frequencies:
VHF:
87,5 ... 106.6 MHz
AM ranges
519 ... 1092 kHz
MW
1059 ... 1632 kHz
input sensitivity:
Distortion factor: 0,3 %
Signal to Noise Ratio:
channel separation:
selectivity:
common wave selection:
spurious wave selection:
image frequency attenuation:
IF attenuation:
AM suppression:
output level:
RDS: no
station memory:
6 FM
2 MW
Special features:
The Braun TS 501 tuner has a digital tuning and a quasi-analogue display in the form of an LED chain with 64 dots in the 300 kHz grid for VHF, with +/- display for 100 kHz deviation, as well as 9 kHz grid for MW 1 and MW 2. A LED is assigned to each grid or channel. For the +/- indication one green and one red LED are provided.

The oscillator frequency required for reception is generated by a PLL synthesizer with quartz reference. The set frequency is therefore crystal stable.

Here, Braun has put into practice its latest technical findings in digital technology, based on thorough preliminary work, combined with the wealth of experience of Braun development in the field of high fidelity, in a receiver concept which, on the one hand, allows you the easiest operation, and, on the other hand, permits subtleties in operation to receive the station of your choice even under the most difficult conditions. As always, the performance data are the hallmark of good Braun quality, and far exceed the DIN 45500 standard.

1 Dualgate MOS-FET
Transistors
ICs
LEDs
49 Diodes
4 Varicap double diodes
4 Varicap single diodes
1 bridge rectifier
14 FM - circuits
10 AM - circuits
1 Quartz
1 lithium battery
/Source: Original text from instruction manual: BRAUN Hifi Stereo Sysntesizer Tuner TS 501 (p) 1978 /
