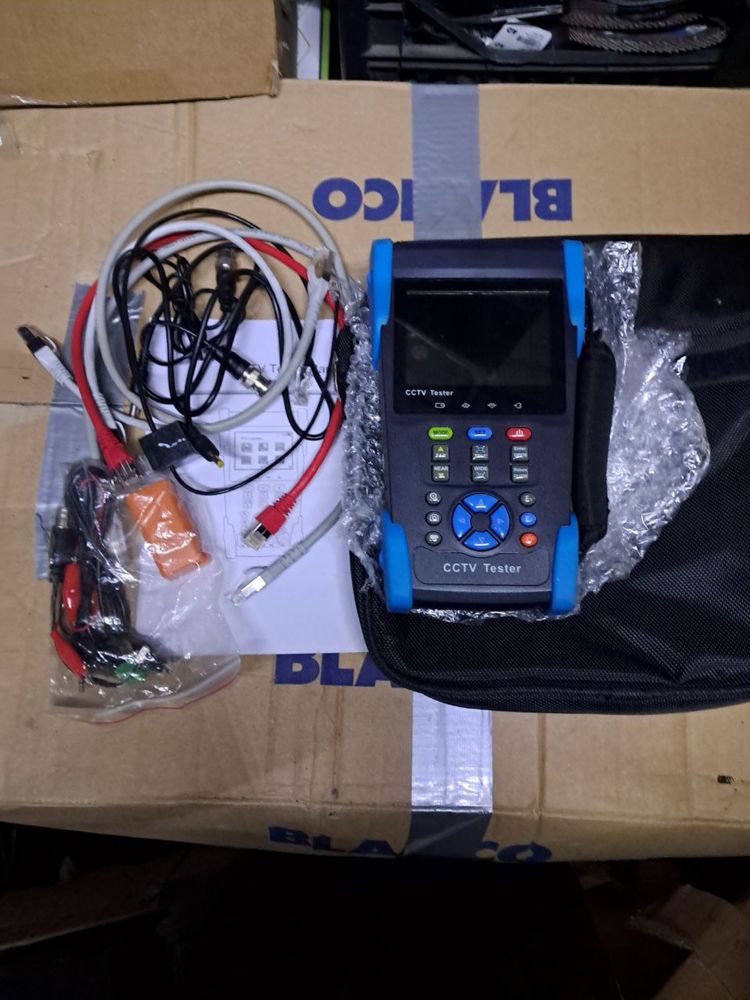

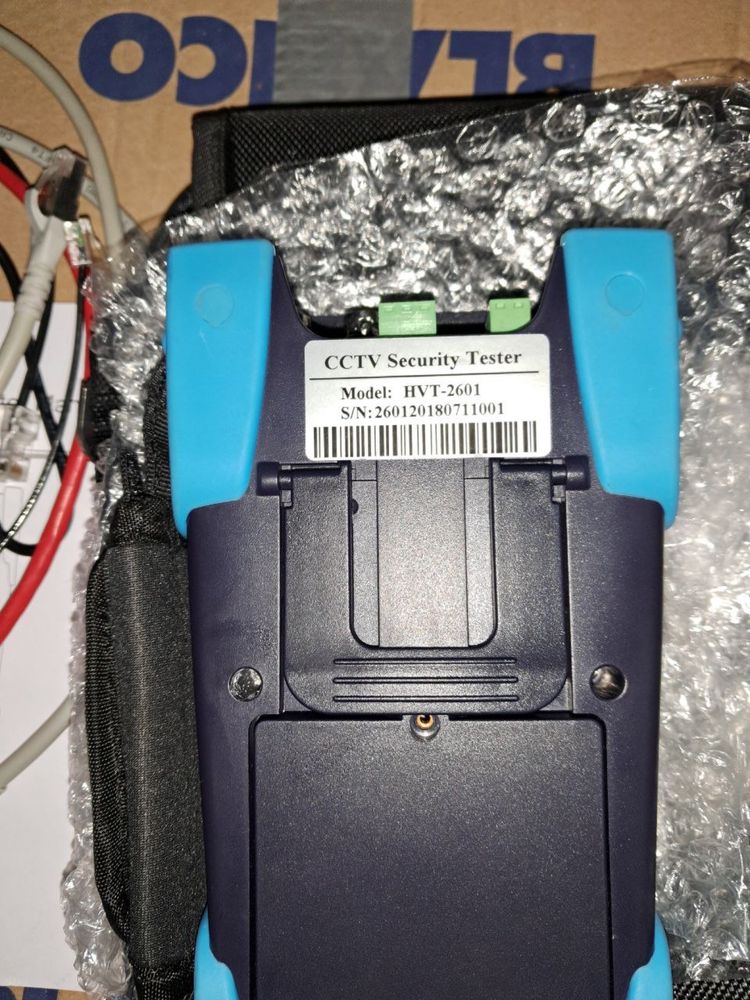

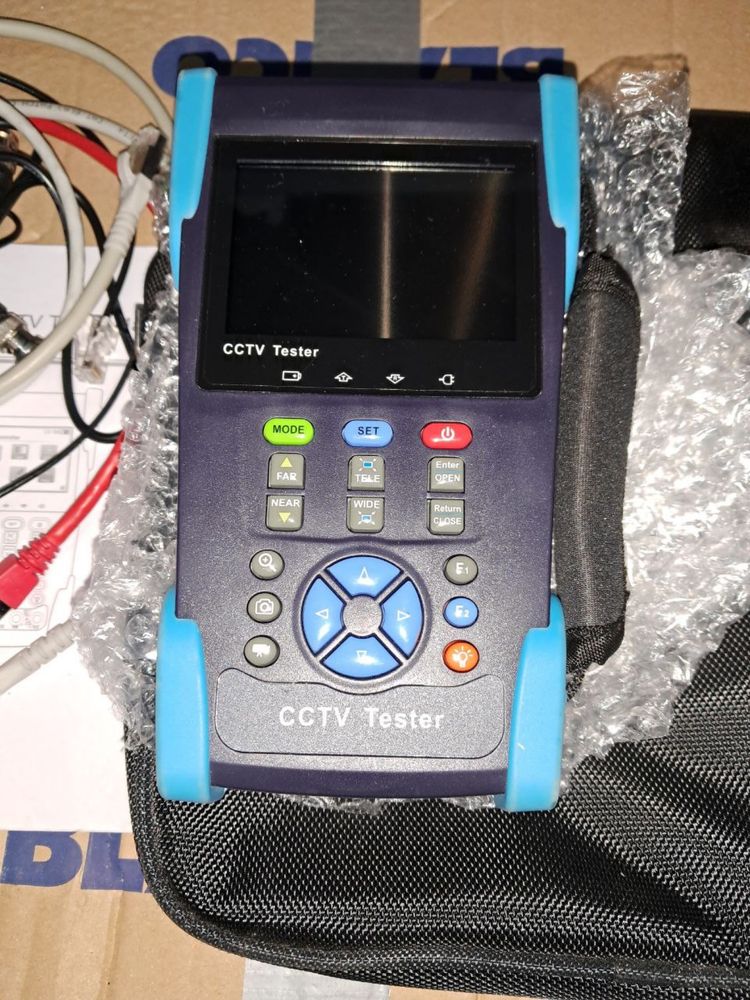

Tester serwisowy CCTV AHD TVI CVI DCS-HVT 2601

Video standard: PAL, NTSC
Display: 3.5 " TFT LCD 480 x 320
Video input: 1 pcs BNC
Video output: 1 pcs BNC
Video signal level meter: mV (for PAL) IRE (for NTSC)
Video signal generator:
Test signal generator
Eight color-bars generating in multi-tv-system modes
It is possible to generate the red, white, black, blue or green screen image
Serial ports: RS-232, RS-485
Protocols: Support for over 30 RS485 protocols : Pelco-D, Pelco-P, SAMSUNG, PANASONIC, LILIN, YAAN, LG Multix, ALEC, Santachi, VICON, Fastrax, MOLYNX, KALATEL
Baud rates: 60*********2400, 4800, 960********* 5760*******00 b/s
LAN (twisted-pair) or telephone cables testing: UTP cables or phone lines connecting test with RJ-45 connectors
RS-485, RS-232 lines test: Data analysis from control device (the commands are displayed in hexadecimal)
Identification the wire in the group of wires:
Audio test: Preamplifier and speaker built-in (JACK 3.5 mm socket)
Digital multimeter:
Optical power measurement: Optical power measurement in fiber optic networks (FC, ST and SC adapters)
TDR reflectometer: Detecting and locating a cable break or short circuit (coax or UTP)
Operation as power source: 12 V DC / 1 A
Estimated battery operation time: 11 hours (after 3-4 h charging time)
Power supply:
5 V DC / 1.5 A (power adapter included)
battery 3.7V / 3000mAh (LiPo)

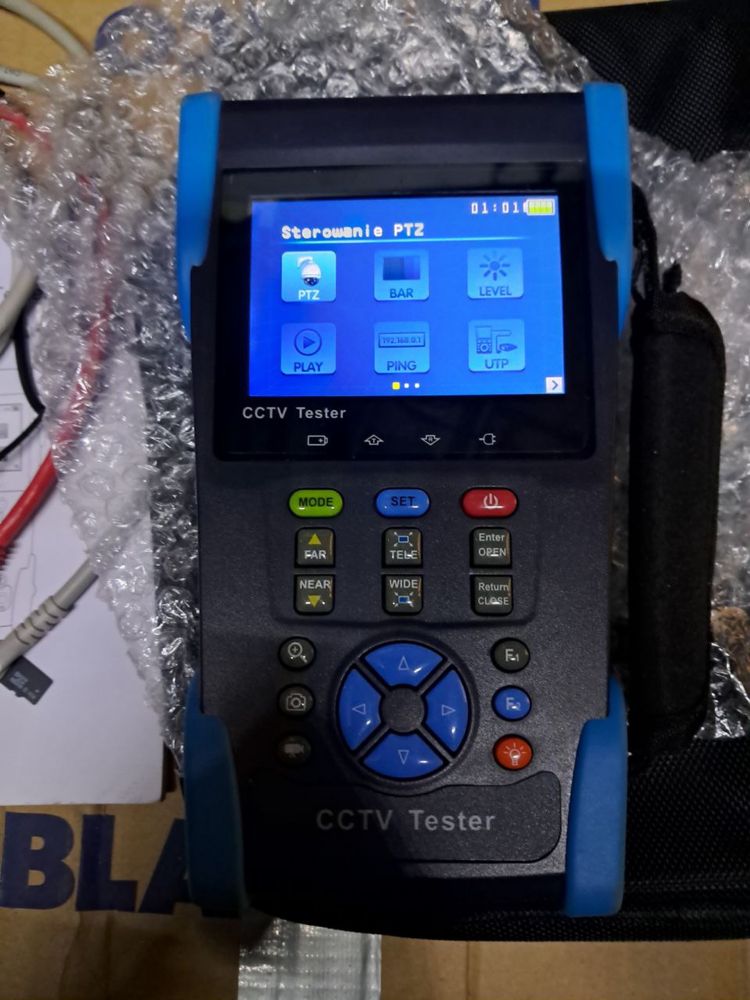

Operation: OSD
Main features:
Video signal test
Audio test
Test signal generator
Video recording to micro SD card with playback possibility
Motor units and PTZ (Speed Dome) cameras control
Data monitor - serial port data analysis (RS-485 or RS-232)
PTZ address scanning - searching of the PTZ addresses
LAN (twisted-pair) cables testing
PING - test the link using ICMP packets
RJ45 - Ethernet ports tester
IP addresses scanner
PoE power meter
DC 12V / 1A power source
mini USB socket
Flashlight built-in
Operation temp: -10 °C ... 50 °C
Permissible relative humidity: 30 % ... 90 %
Weight: 0.56 kg
Dimensions: 195 x 115 x 48 mm
Supported languages: Polish, English, German,
