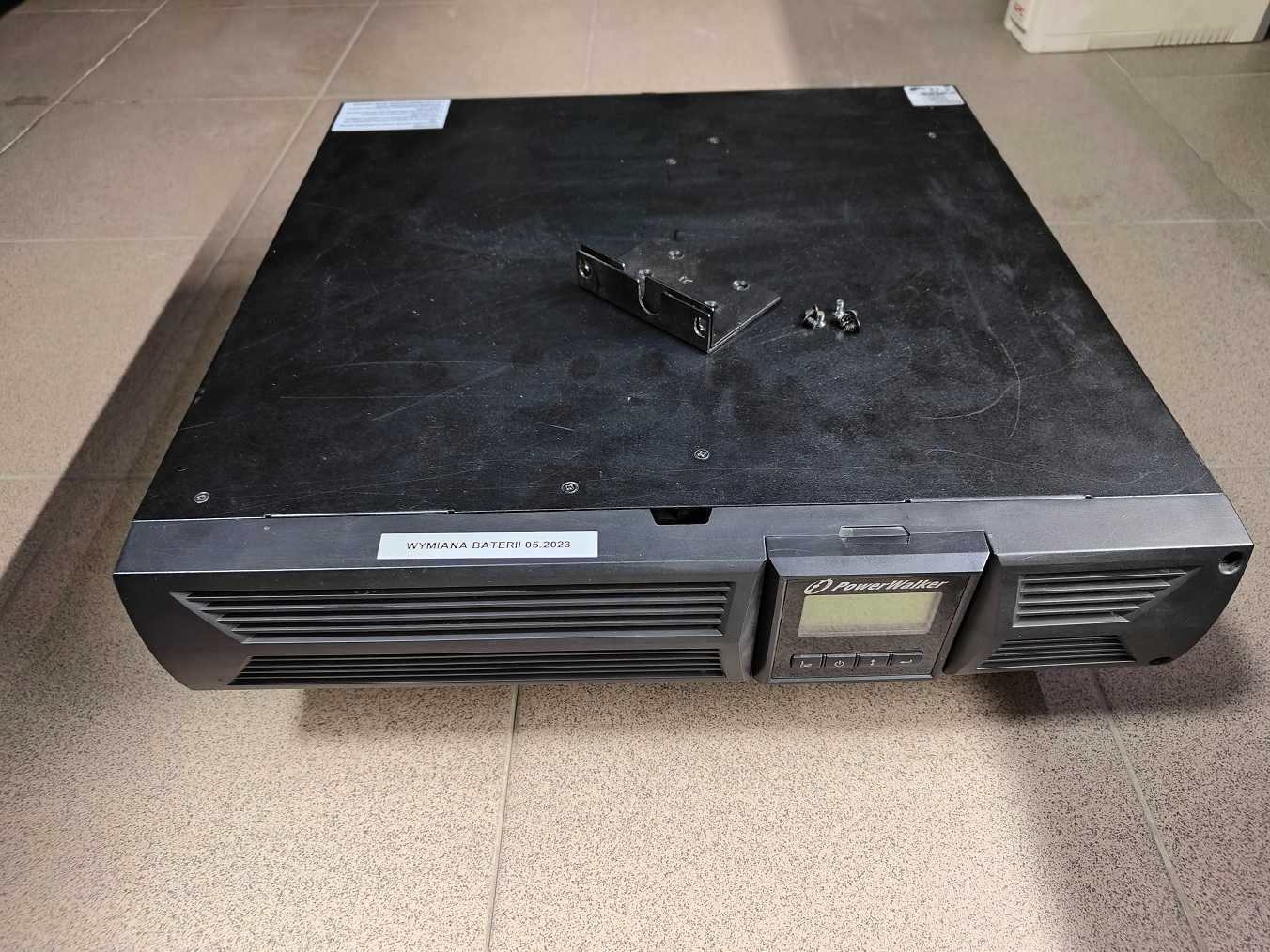

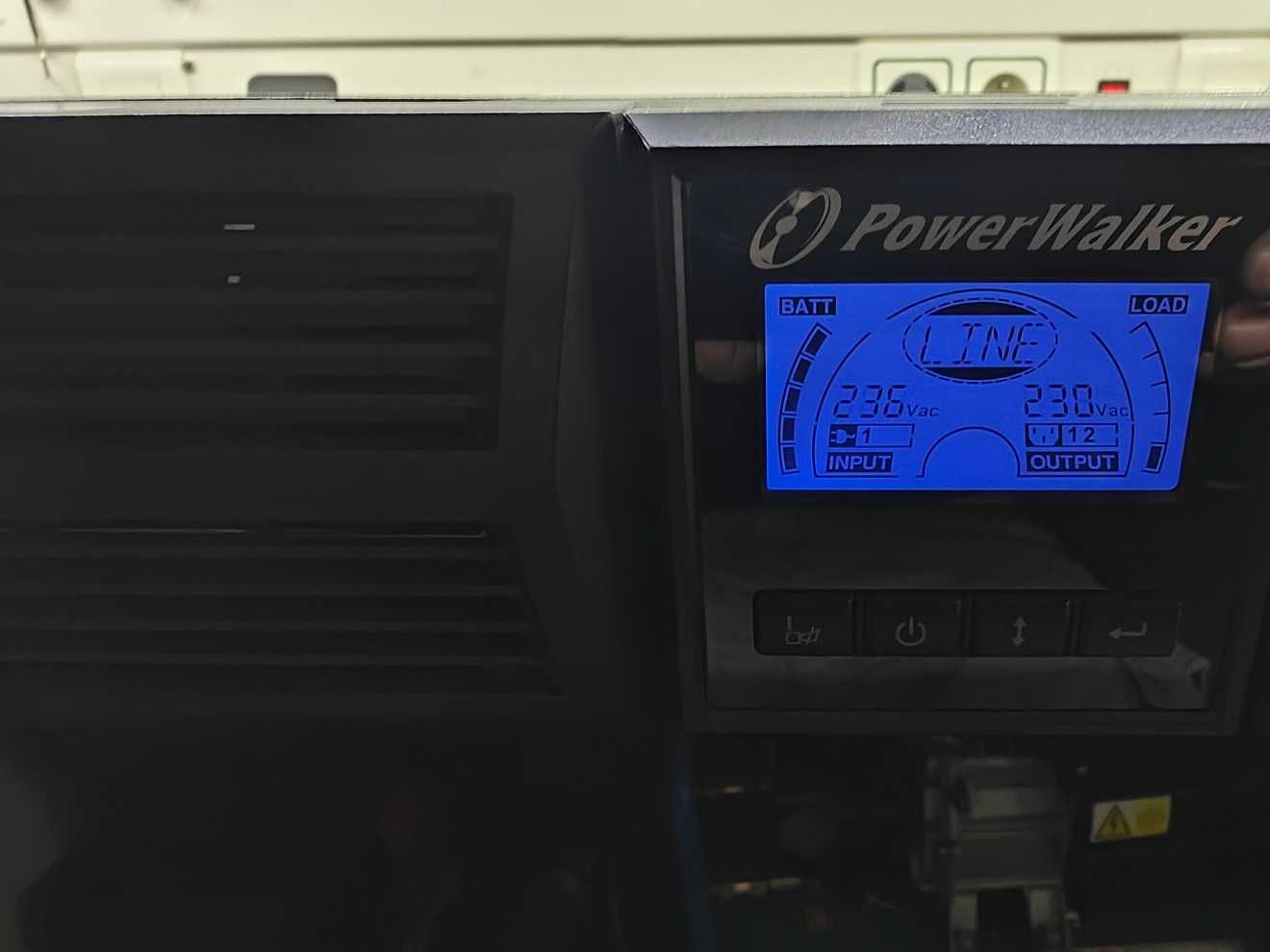

Do sprzedania w pełni sprawny UPS BlueWalker PowerWalker VFI 2000RT LCD + karta zarządzająca SNMP.

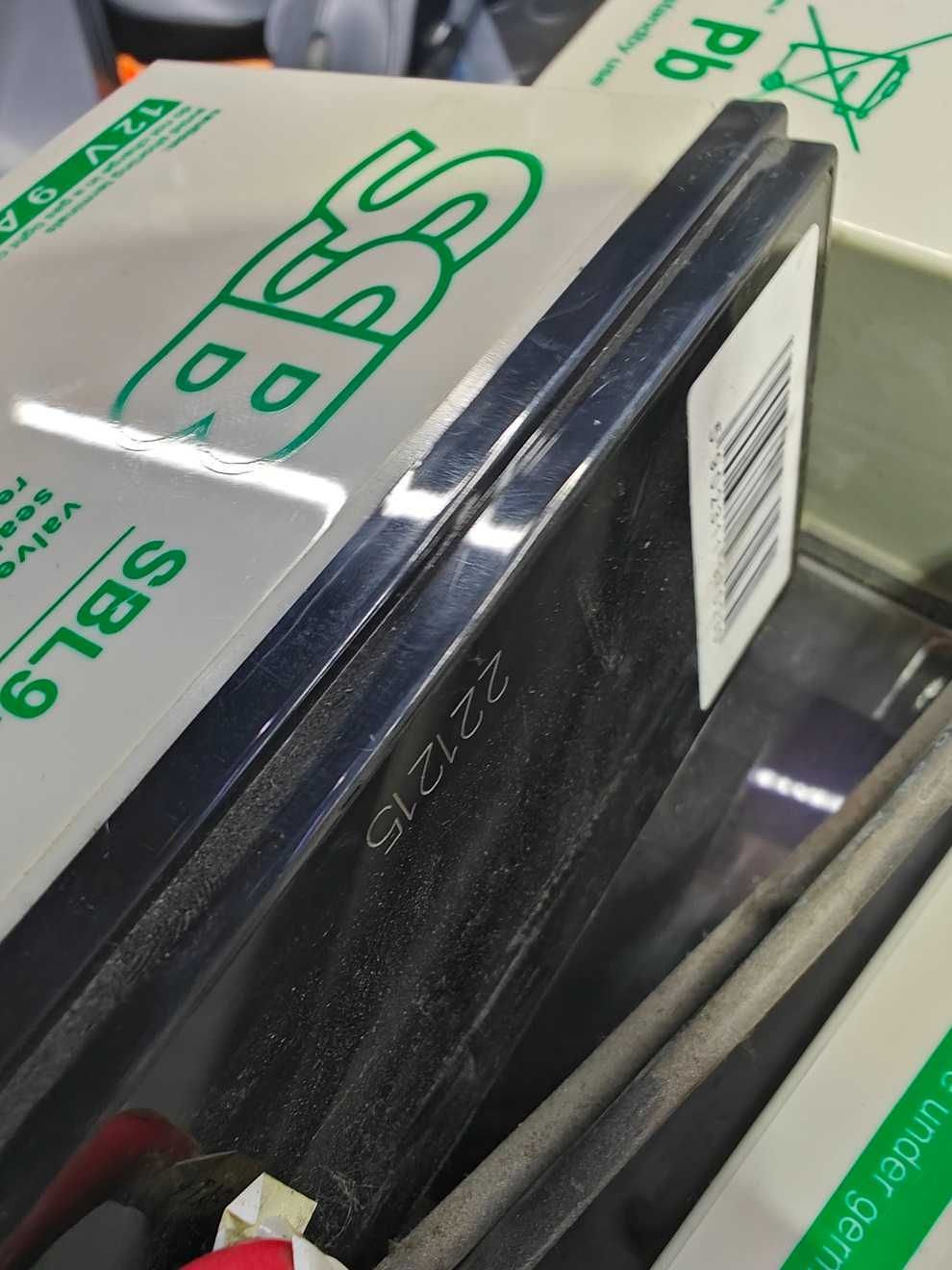

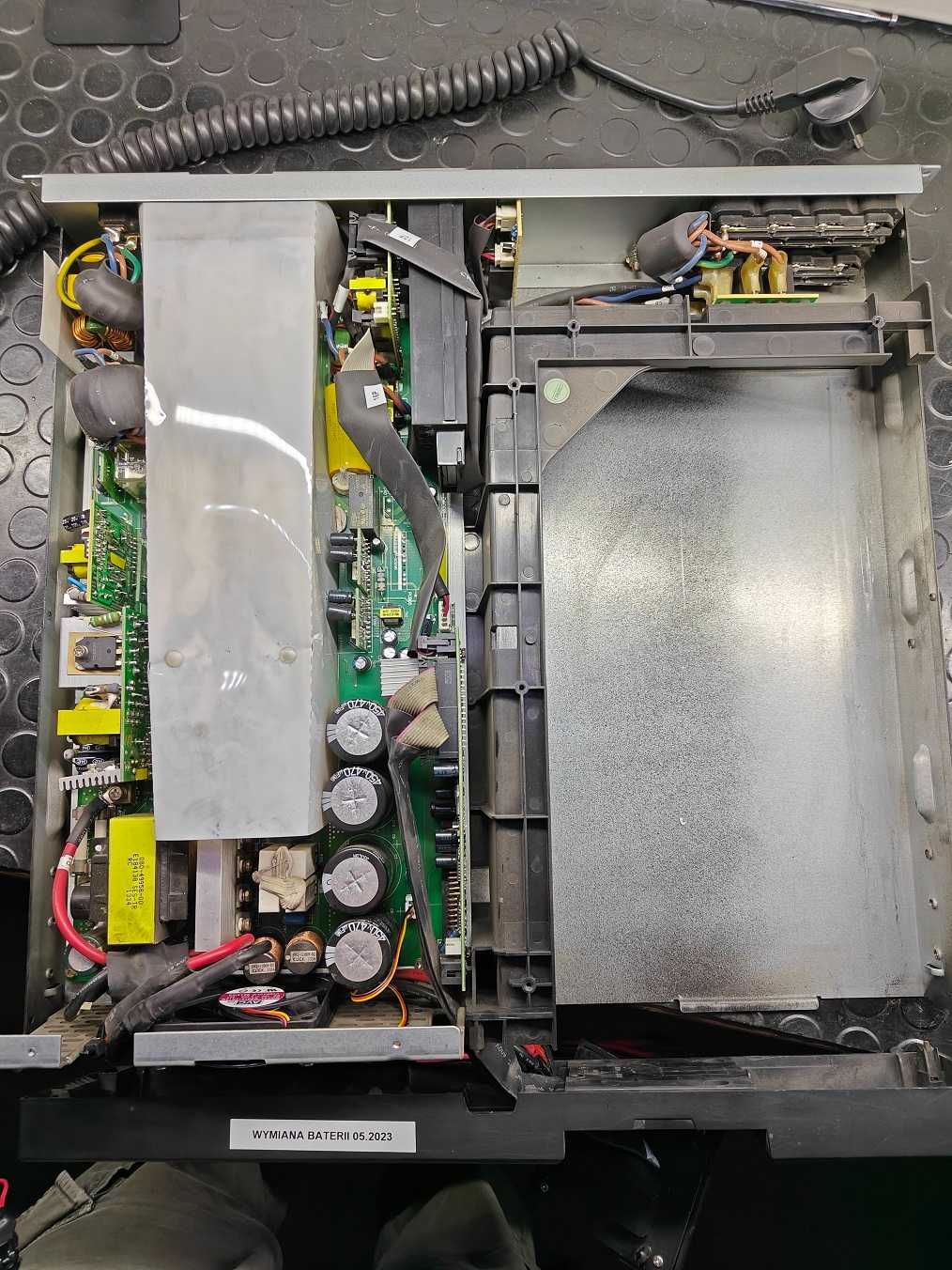

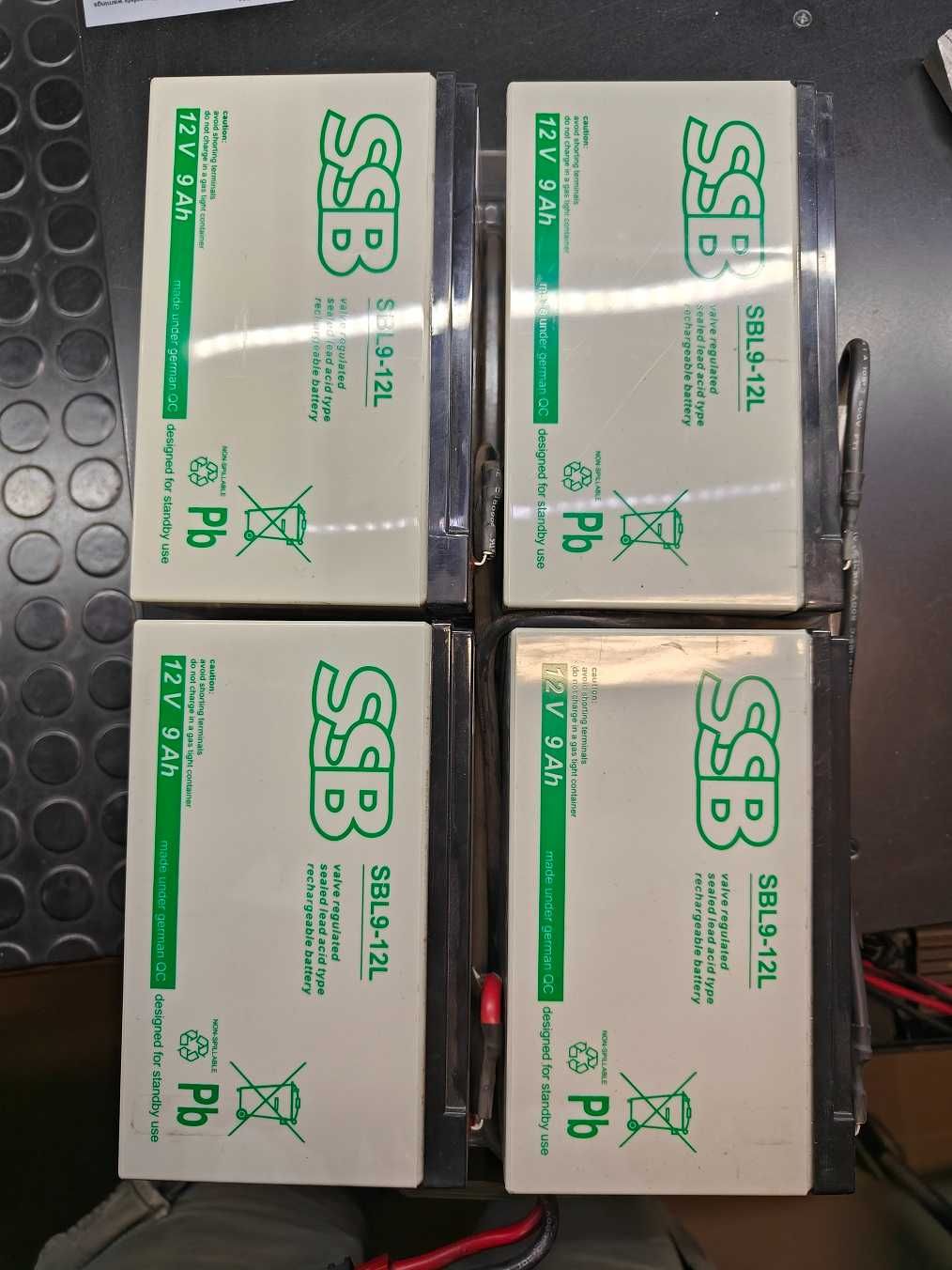

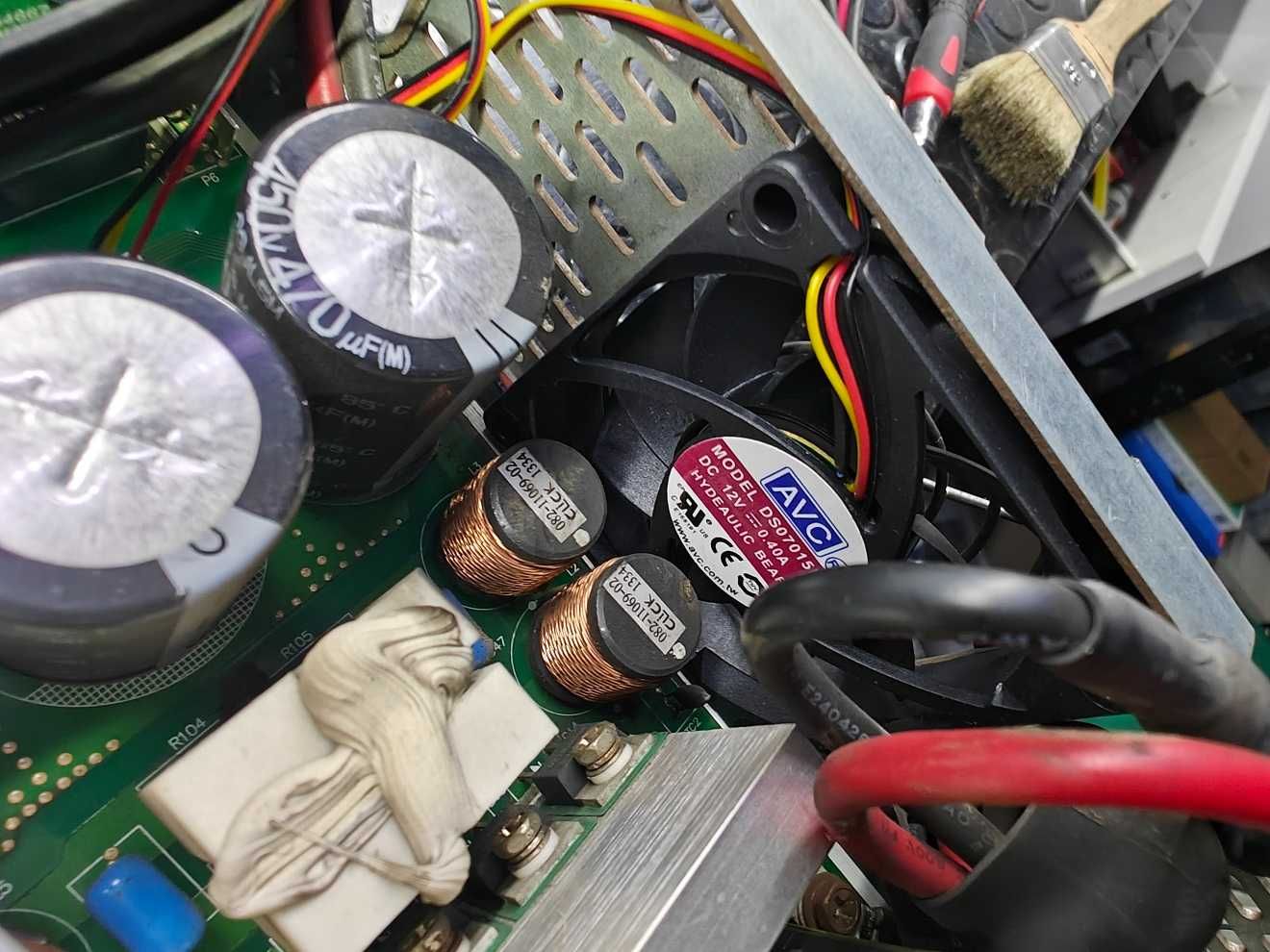

UPS jest po przeglądzie, został wymieniony wentylator ze zdjęcia na nowy, akumulatory wymienione w maju 2023, data produkcji akumulatorów grudzień 2022, są to akumulatory 9Ah marki SSB model SBL9-12 projektowana żywotność dla pracy buforowej wynosi do 12 lat, karta zarządzająca to model: NMC Card

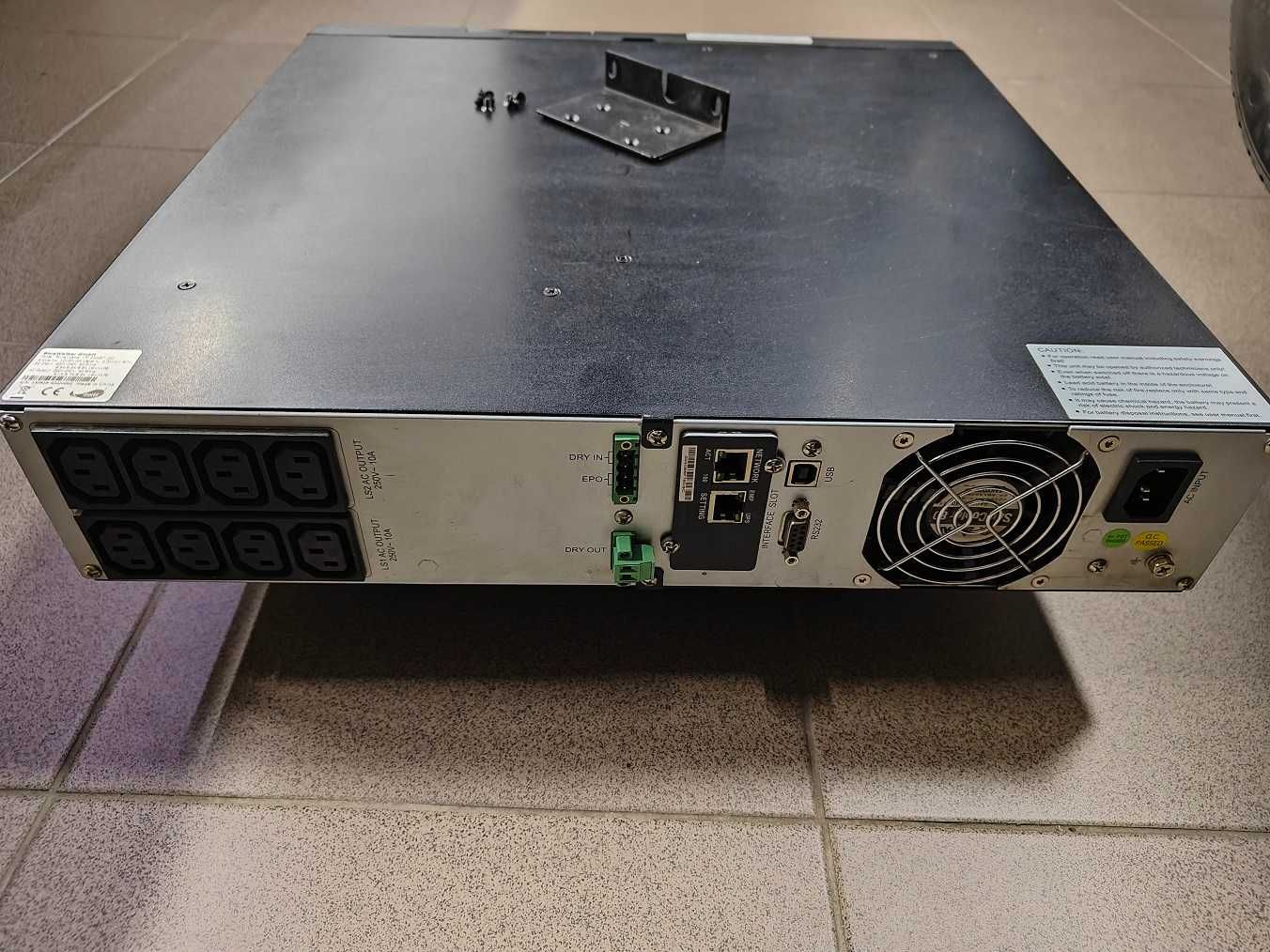

SKU: 10120517, sama karta kosztuje ok. 700 PLN, w zestawie uszy do zamocowanie w szafie RACK

Ze względu na wagę, brak oryginalnego opakowania tylko odbiór osobisty, na terenie Warszawy lub Tomaszowa Mazowieckiego, w razie pytań dzwonić.

General Features
Type Online Single Phase (VFI)
Phases (IN-OUT) 1-1
Form Factor Rack, Tower
Rack Units [U] 2U
Power Capacity 2000VA / 1800W
Output Power Factor 0.90
Input
Input Voltage Range 120-276 VAC Depends on Load Level
Max THDi ≤5%
Frequency Range 45Hz – 55Hz or 54Hz – 66Hz
Frequency (Synchronized Range) 45Hz – 55Hz or 54Hz – 66Hz
DC Input (PV)
Input Power Factor ≥ 0.99 at full load
Output
Waveform Pure Sine Wave
VA 2000
Load Crest Ratio 3:1
Nominal Output Voltage 208/220/230/240 VAC
THDv ≤2% at 100% linear load, ≤5% at 100% non-linear load
Frequency (Battery Mode) ±0.2Hz
Output Power Factor 0.90
Input & Output Connectors
Input Connector C14
IEC C13 8
Technical Details
LINE Mode Efficiency [%] (Full Load) 89.6
Battery Mode Efficiency [%] (Full Load) 85.0
ECO Mode Efficiency [%] (Full Load) 96.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms] 1ms
Transfer Time (AC / Line Mode to Battery Mode) [ms] 0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] 10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] 0ms
Load Crest Ratio 3:1
Additional Features ECO Mode Available, CVCF Mode Available, Potential Equalization Screw, LCD Display, Battery Pack Available, Generator Compatible, EPO – Emergency Power Off, Programmable Segment Available, HID – Human Interface Device, AVR – Automatic Voltage Regulator, External Battery Compatible
IEC 62040-3 classification VFI-SS-111
Batteries and Autonomy
Batteries 4x 12.0V/9.0Ah
DC Voltage 4x 12.0V
Recharge Time 3h to 90%
Full Load Backup Time [min] 3.0
Half Load Backup Time [min] 10.0
Charger 1.5A
External Battery Pack Anderson PP45 x2
Recharge Time 3h to 90%
Communication
Communication Dry contact, USB Type B – for Monitoring Software, RS-232, Management Card Slot
Software WinPower
Management and Environment
Software WinPower
Communication Dry contact, USB Type B – for Monitoring Software, RS-232, Management Card Slot
Noise Level 45dB
Fan Logic Always on, Automatic Speed Control
Temperature 0°C – 40°C
Humidity 0% – 95% RH (non-condensing)
IP IP 20
Product Height [mm] 86
Product Width [mm] 438
Product Depth [mm] 436
Product Weight [kg] 19.7
