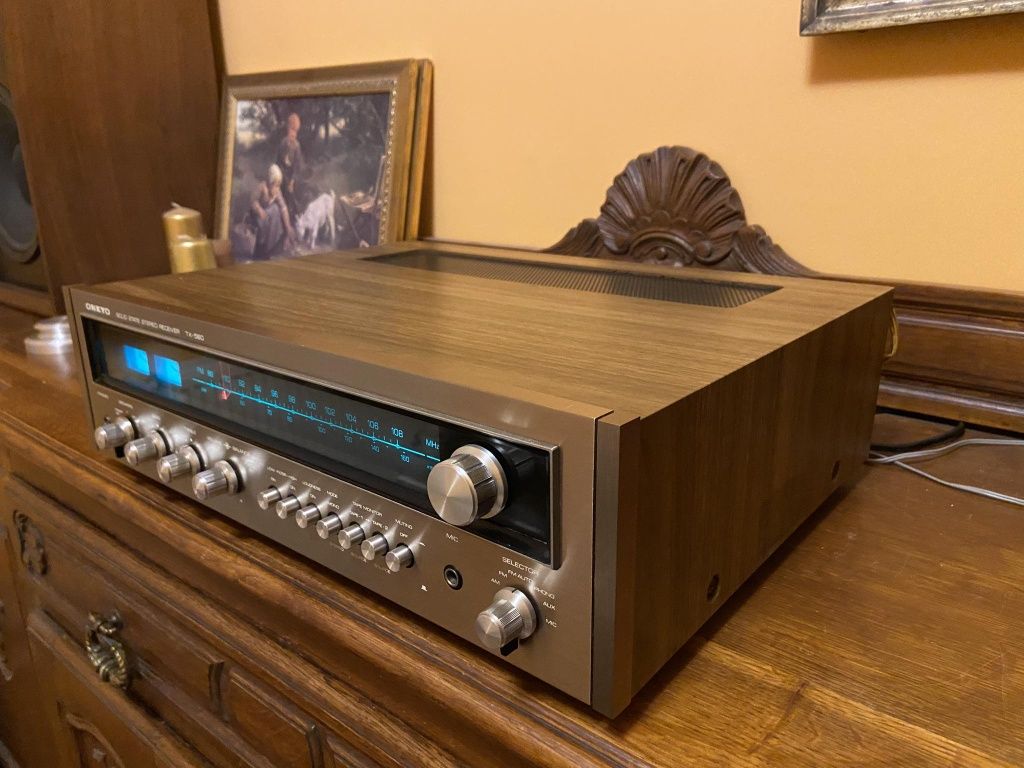

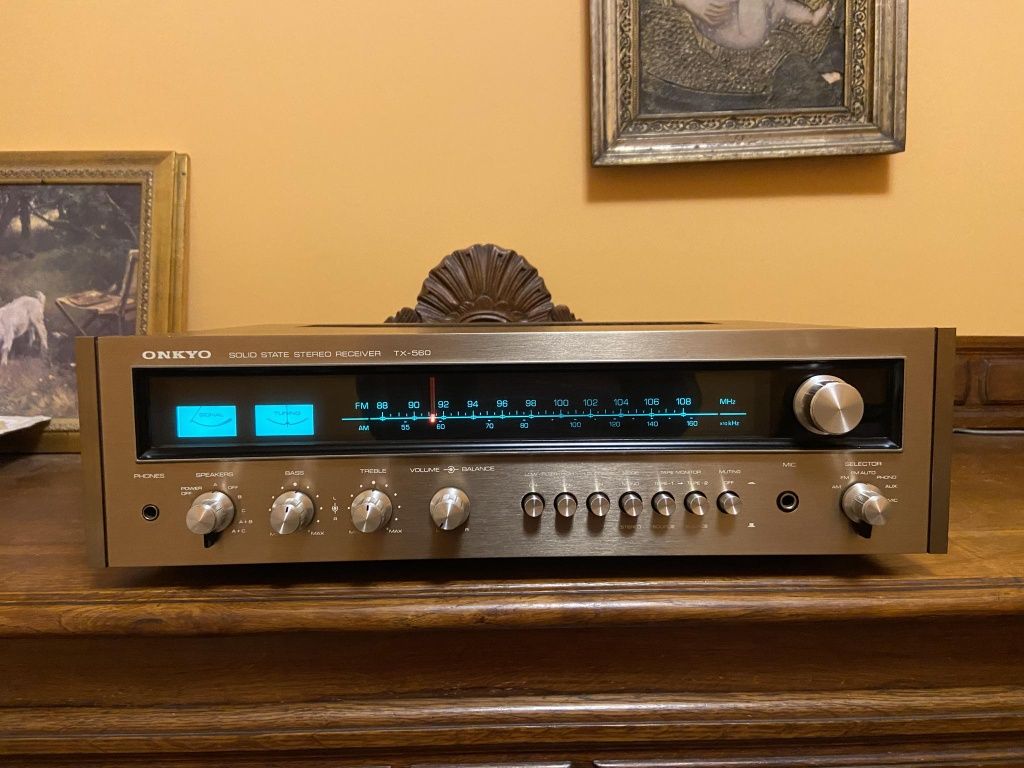

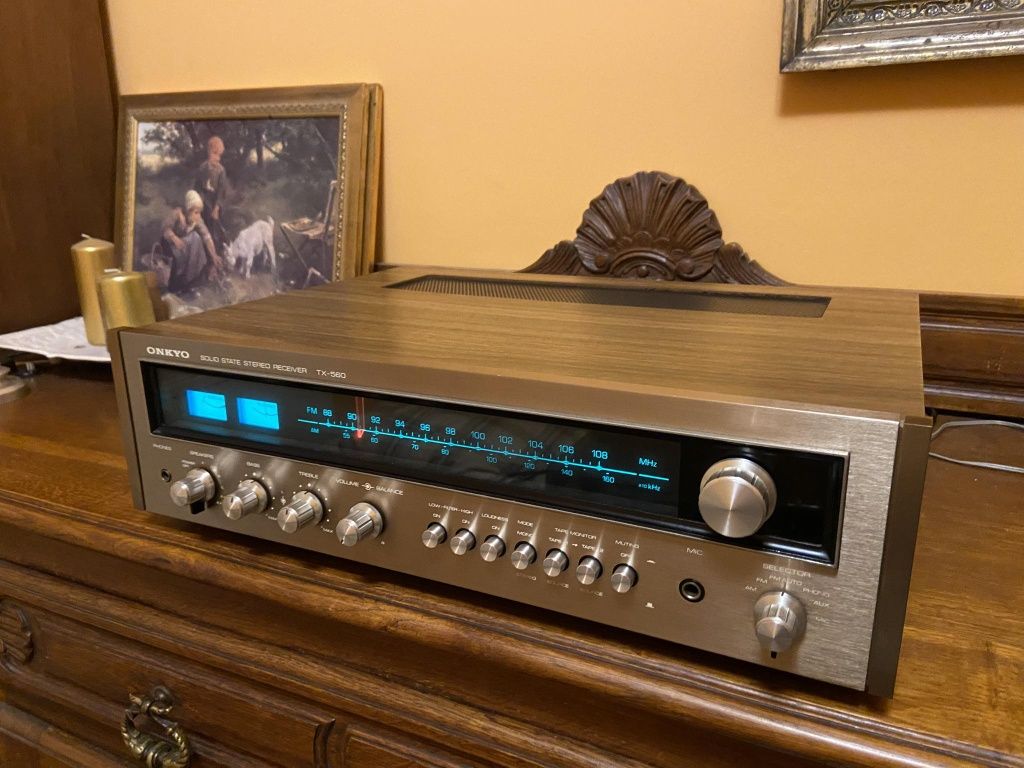

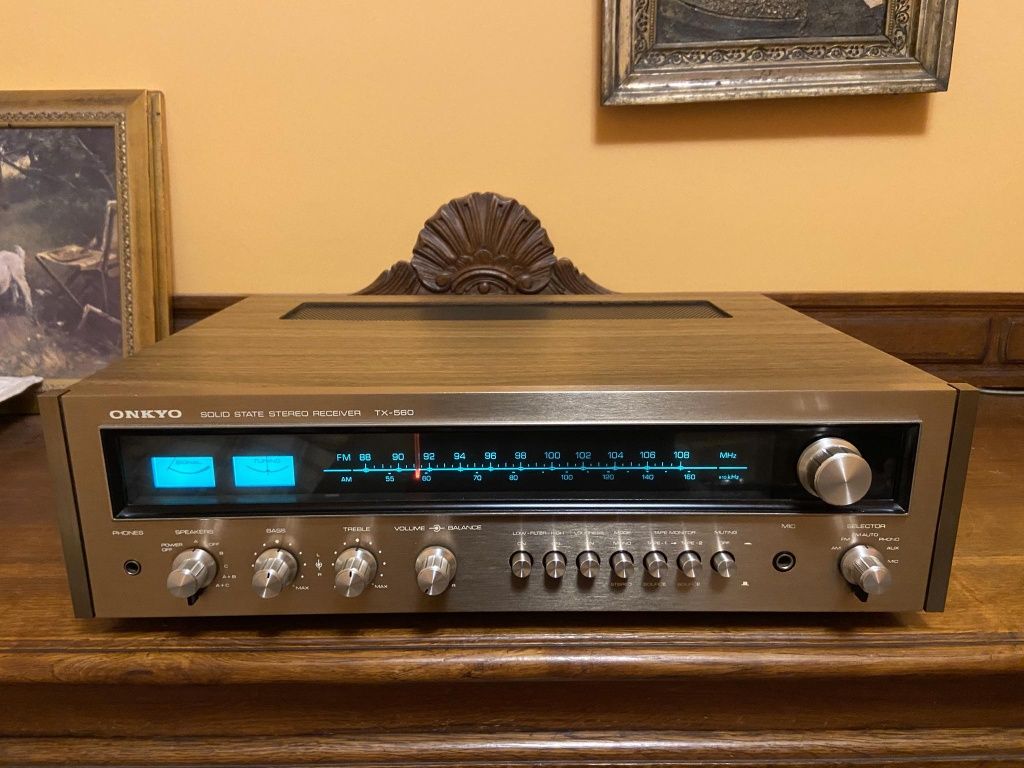

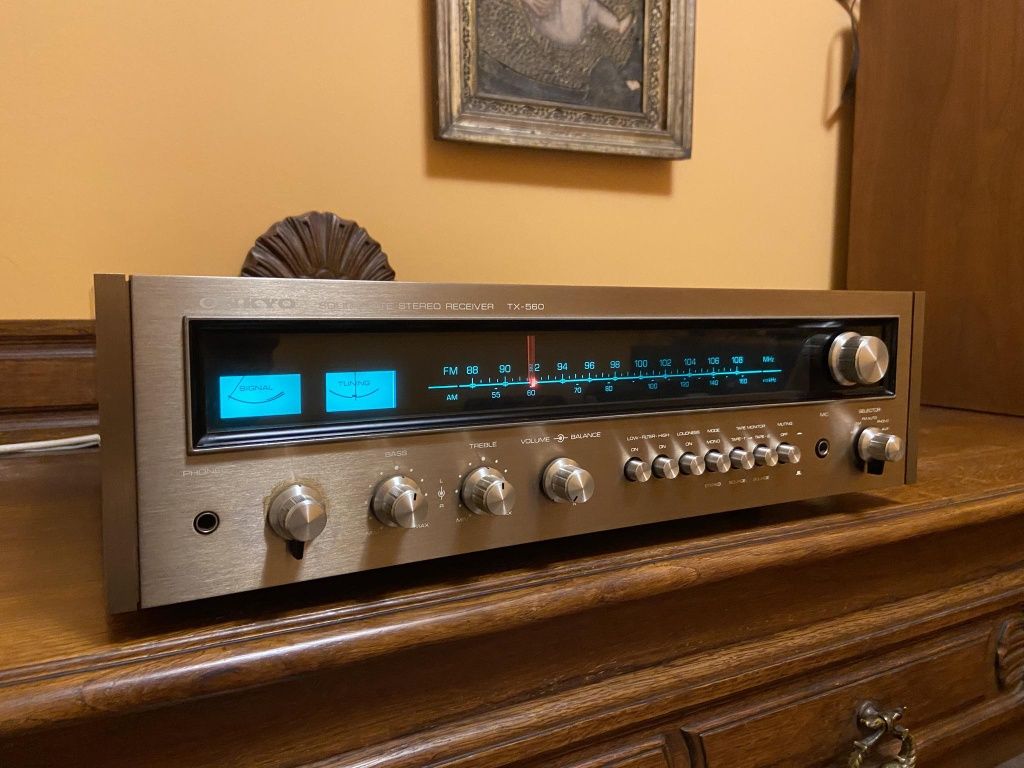

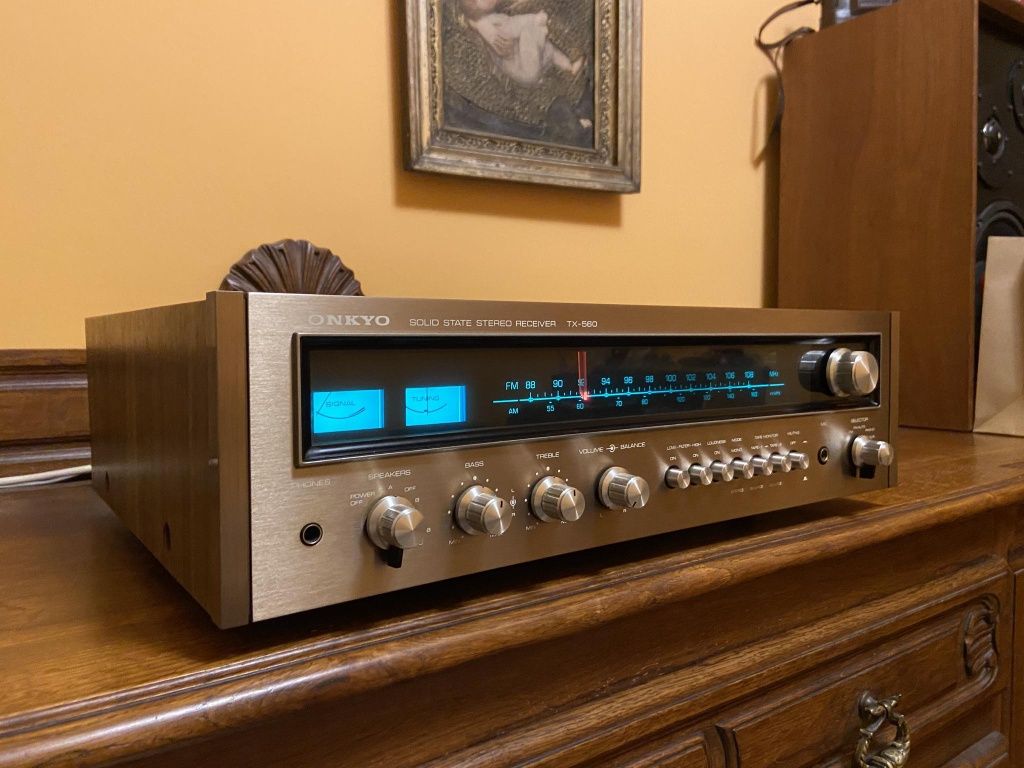

Witam, posiadam na sprzedaż urokliwy i unikatowy amplituner marki Onkyo, model TX-560,
swego czasu drugi model od góry.
Ciężki i masywny
Sprzęt świetnie zachowany, w przepięknym "złotym" kolorze i drewnianej obudowie. Urządzenie jest w 100% sprawne, gra i odbiera w stereo. Potencjometry i przełączniki sprawne, nie trzeszczą.
Bez trudu napędzi większość kolumn.
Zapraszam do zakupu, możliwa wysyłka.

Dane techniczne:
Manufacturer: Onkyo
Model: TX-560
Type: Receiver

Years of manufacture: 1974 - 1976
Manufactured in: Japan
Color: Silver
Remote control: no
Power consumption:
Dimensions: 470 x 140 x 375 mm (WxHxD).
Weight: 12.7 kg
Original price approx.: 1'695 DM

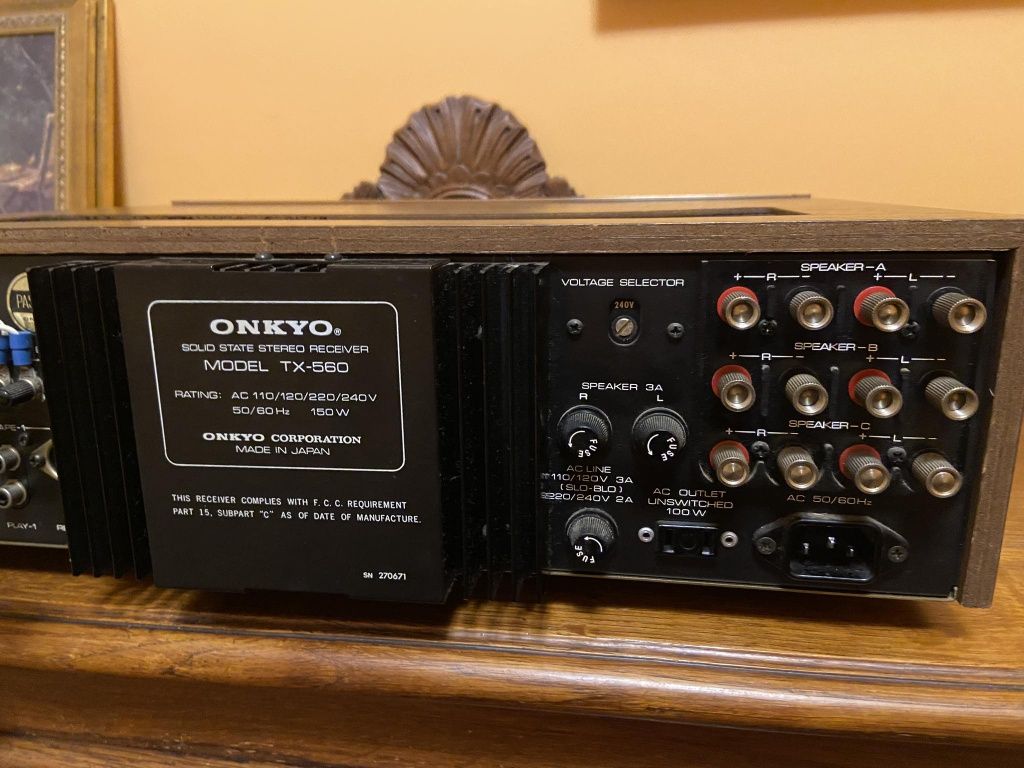

Connections:

Number of inputs:
1x Phono (MM) 2.5 mV / 50 kOhm.
2x Aux: 100 mV / 50 kOhm

Microphone (6.3mm jack)
Antenna FM, AM
Number of outputs:
2x Tape Rec Out
Headphones (6,3mm jack)
2 pairs of loudspeakers

Technical Data:

Amplifier:

Continuous power (at distortion factor)
8 Ohm: 2 x 43 Watt (RMS 20 - 20'00 Hz, 0,2 %)
4 Ohm: 2 x 48 Watt
Dynamic power
8 Ohm: 130 Watt
4 Ohm: 160 Watt
Total harmonic distortion: 0.2 %
Attenuation factor: 50 at 8 Ohm, 1 kHz, 10 Watt
Frequency response: 15 - 30,000 Hz
Signal-to-noise ratio: 65 dB (MM), 80 dB (line).
Tone control:
Bass: yes (± 10 dB at 100 Hz).
Treble: yes (± 10 dB at 10 kHz)

Loudness: yes
High Filter: yes
Low Filter (Subsonic): yes
Mute: no

Tuner:

Reception: FM, MW
Frequencies:
FM: 88 - 108 MHz
MW: 550 - 1,605 kHz
Frequency response:
FM: 30 - 15,000 Hz (± 0.5 dB).
Input sensitivity:
FM: 1.8 µV (IHF)
MW: 40 µV Distortion factor:

FM: 0.2% (mono), 0.5% (stereo).
Signal-to-noise ratio:
FM: 70 dB
MW: 40 dB
Channel separation:
FM: 40 dB (400 Hz)
selectivity:
Co-wave selection: 1.5 dB
Spurious wave selection:
IF attenuation:
IF attenuation:
VHF: 100 dB
MW: 40 dB

AM suppression:
Output level: 50 dB

Special Features

Microphone mixer
