SPRZEDAM

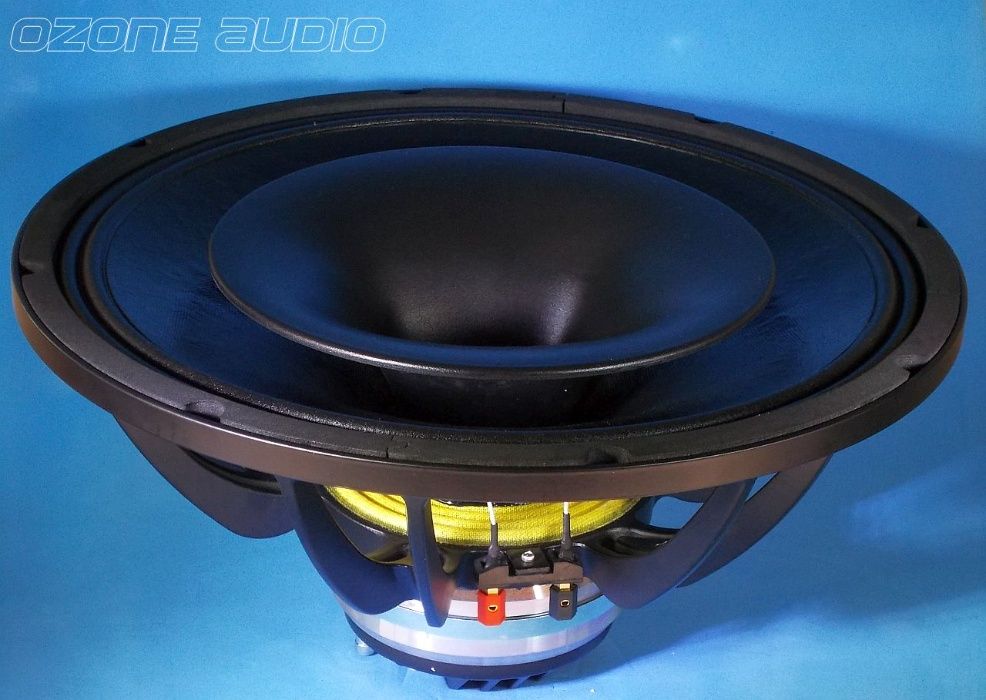

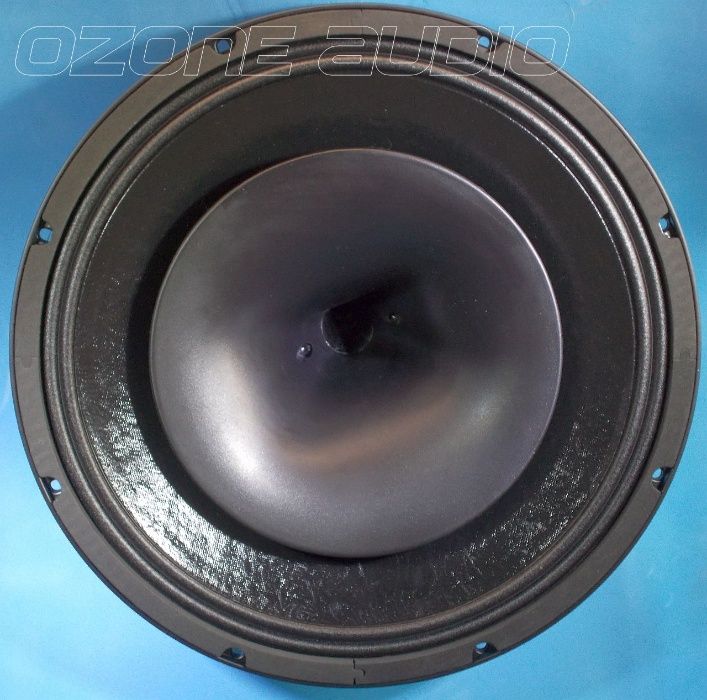

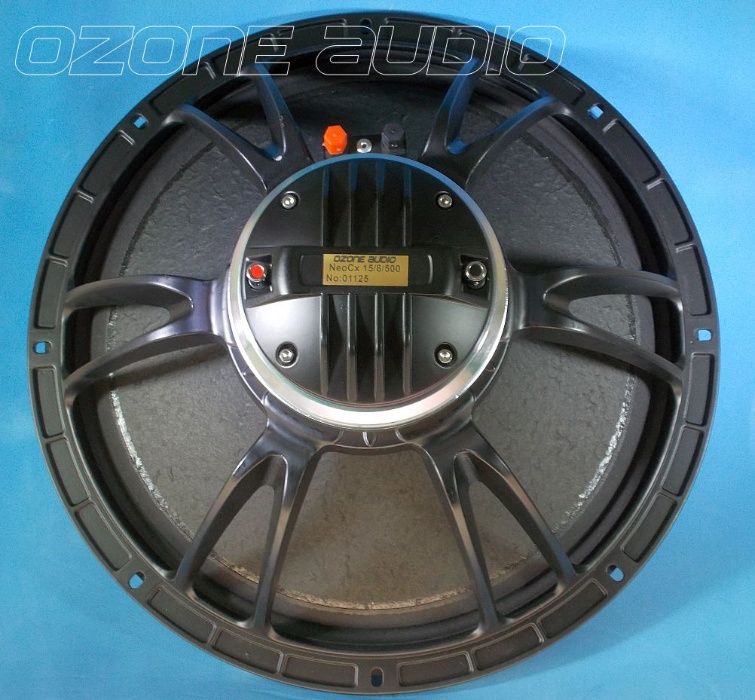

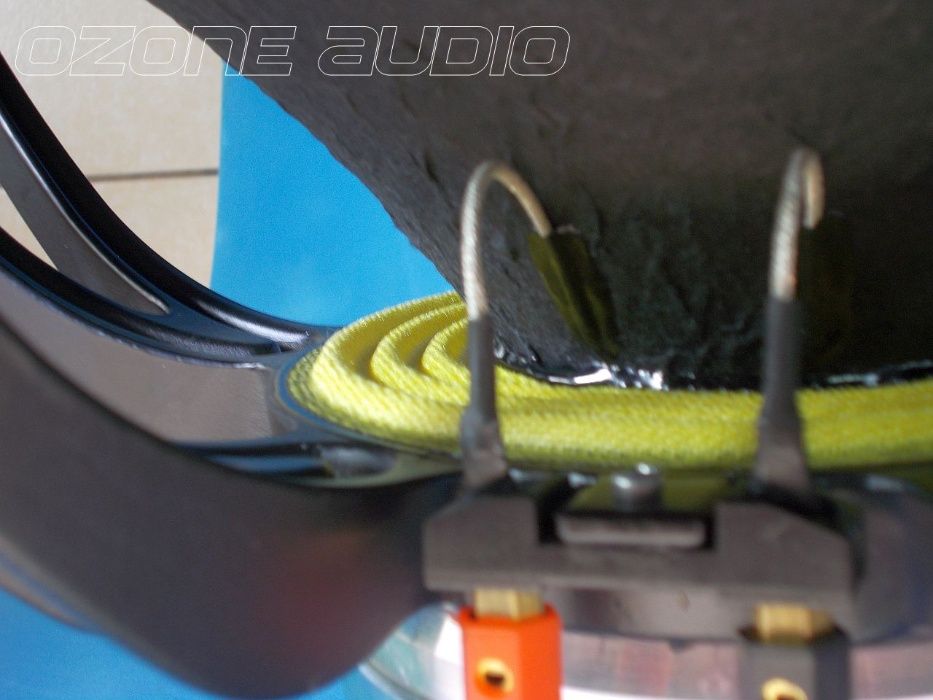

Glośnik koaksjalny 15 cali neodymowy, horn asymetryczny kąt 40/60 stopni
dane techn.
Model:CX15
Specification
Nominal diameter 380/15 mm/inch
Nominal impedance 8 ohm
Min impedance 4.9 ohm
Frequency response 48-18K Hz
Magnet size 138 mm
Magnet material Neodymium
Specification LF
Sensitivity (1w/1m) 99 dB
Continuous power 450 Watts
Maximum power 900 Watts
Voice coil diameter 75/3 mm/ inch
Winding material
Surround Shape M-roll
Specification HF
Throat size 1.5 inch
Sensitivity (1w/1m) 105 dB
Continuous power 100 Watts
Maximum power 200 Watts
Voice coil diameter 75/3 mm/inch
Diaphragm Polyester
T/S Parameter
Fs 48.7 Hz
Re 4.9 Ω
Qes 0.36
Qts 0.34
Qms 6.93
Vas 176 L
Rms 3.0 kg/s
Cms 0.16 mm/N
Mms 66.9 gr
BI 16.6 N/A
Rp 69.6 Ω
Lp 47.4 mH
Cp 368.8 uF
Le 0.54 mH
Mounting information
Overall diameter 393 mm/inch
Bolt Circle diameter 374 mm/inch
Baffle Cutout diameter 354 mm/inch
Depth 202 mm/inch
możliwość wysylki caŁA Polska , FAKTURA vat
