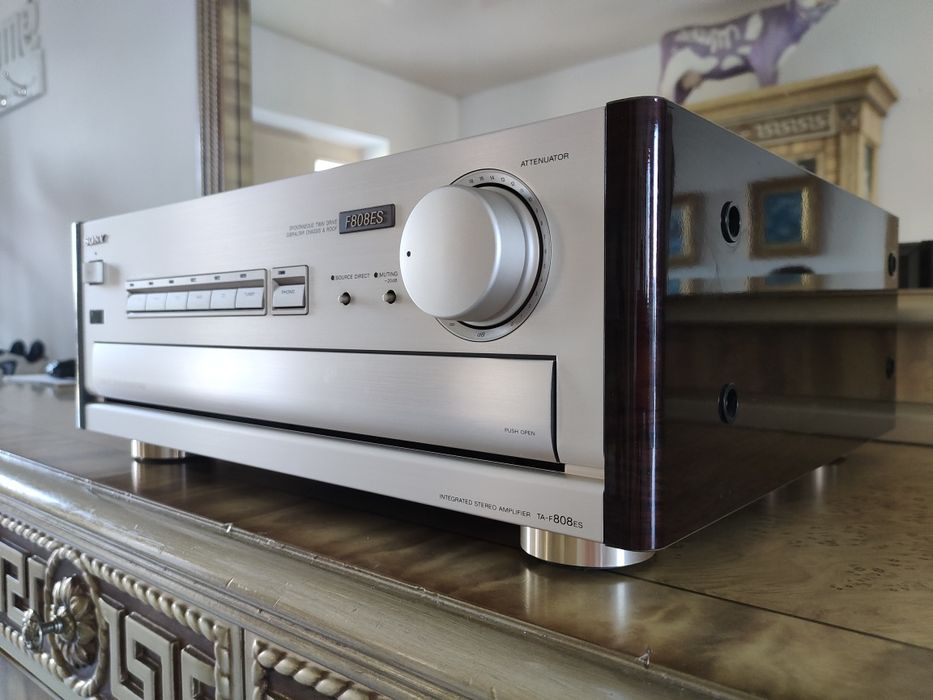

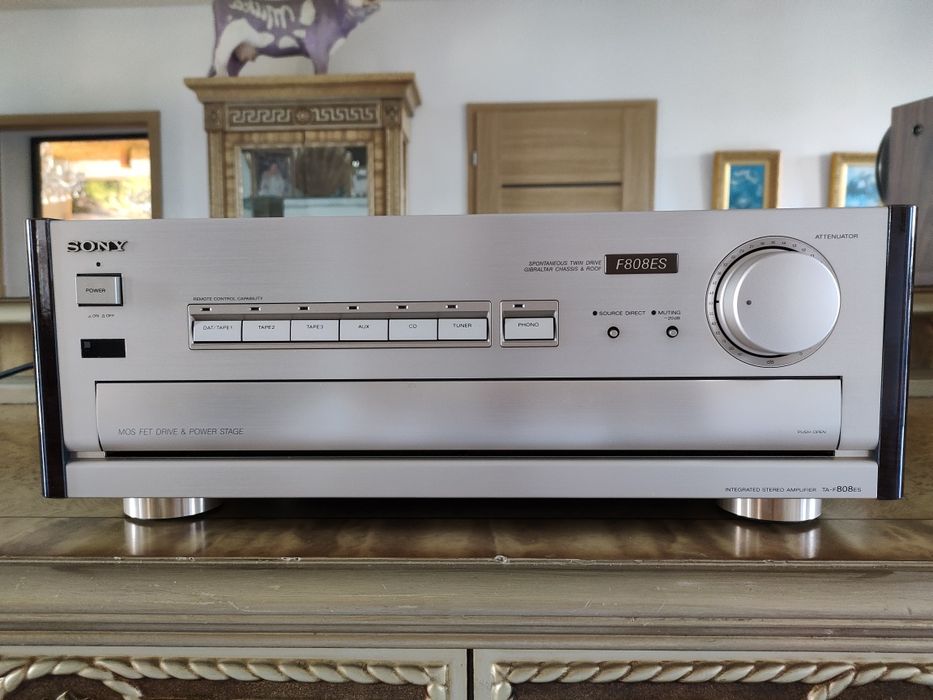

Sony TA-F808ES Topowy Model. Po Serwisie z pilotem

Manufacturer: Sony
Model: TA-F 808 ES
Type: Integrated amplifier
Years of manufacture: 1993 - 1994
Made in: Japan
Color: Black or Champagne
Remote control: Yes (RM-S 703)
Power consumption: 390 W
Dimensions: 470 x 175 x 435 mm (WxHxD)
Weight: 24,6 kg
Original price: 2'500 DM (RRP, black), 2'600 DM (RRP, champagne)

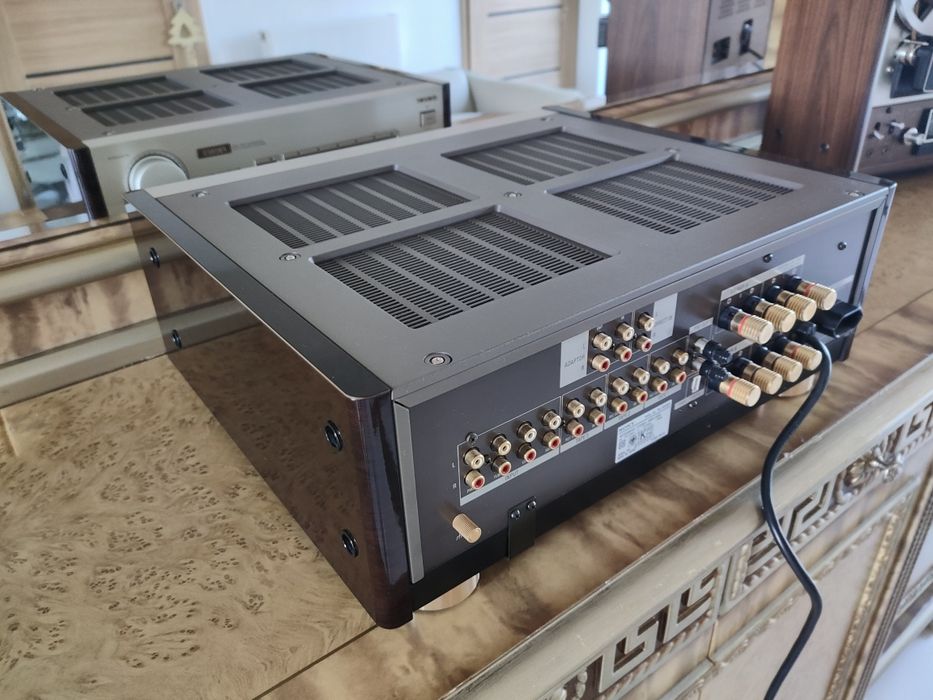

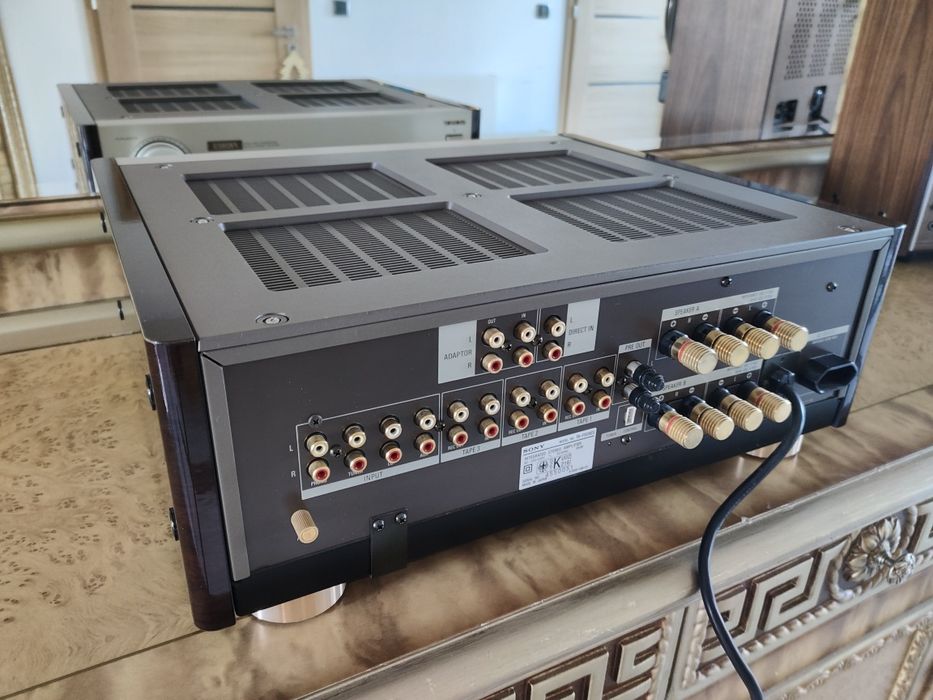

Connections

Number of inputs:
6x Line-In + 1x Direct, 1x Phono MM / MC40Ohm / 3Ohm.
Additional Adaptor In/Out (Adaptor In, can be used as additional high level input).
Number of outputs:
1x Pre-Out
1x Adaptor Out 3x Line

2x loudspeaker pair A+B

Technical Data

Continuous power RMS (20Hz - 20kHz)
8 Ohm: 120 W + 120 W
4 Ohm: 170 W + 170 W

Continuous power DIN (1 Khz)
8 Ohm: 135 W + 135 W
4 Ohm: 200 W + 200 W
Total harmonic distortion: 0.004% (Ger. 0.005%)
Attenuation factor: 100 (8 Ohm)
Frequency response: 2Hz - 200kHz
Power bandwidth 10Hz - 100kHz
Signal to Noise Ratio: 105dB(Line), 93dB(MM), 79dB(MC)
Stereo Channel Separation:
Tone control:
Bass: +/- 7dB
Treble: +/- 6dB

Loudness: -
High Filter: -
Low Filter (Subsonic): 15Hz 6dB/Octave
Mute: -20dB
Direct/Line-Straight: yes

Special Features

Equalization preamplifier with MOS-FET
Class A driver stages, MOS-FET power amplifier
Direct coupling of all stages
Gibraltar Chassis (composite cast chassis bottom)
Gibraltar Roof (composite-cast top cover)
Gold-plated RCA jacks for all inputs and outputs
Brass speaker screw terminals, gold plated

Notes
Other models in the same series:

TA-F 505 ES
TA-F 606 ES
TA-F 707 ES
TA-F 808 ES
