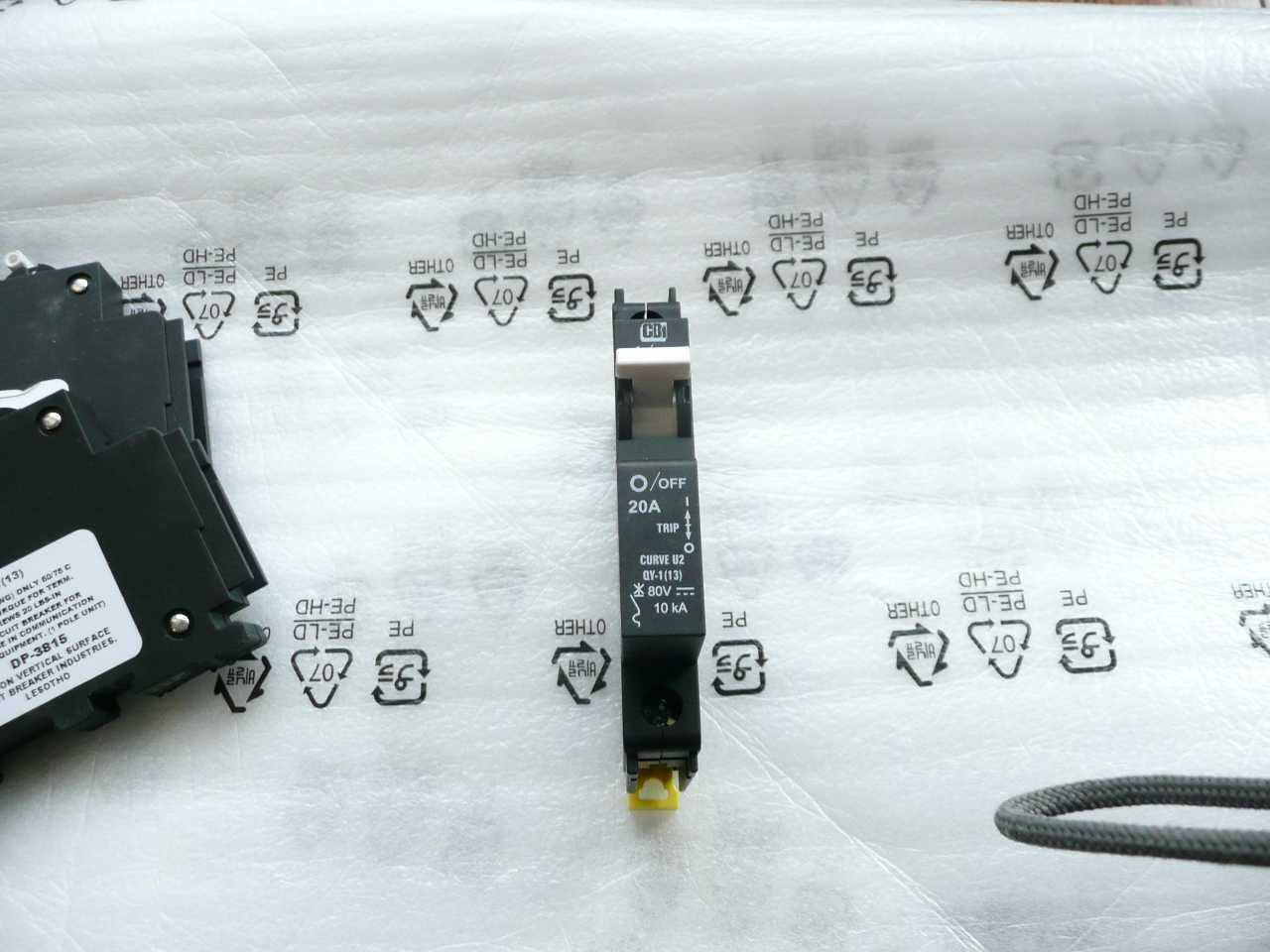

rozłącznik nadprądowy DC 20A 80V

Dane techniczne:
DC Circuit Breaker
• Hydraulic-Magnetic technology
• 100% rating capability, independent of ambient temperature
• VDE and CCC approved, CE certified
• UL listed (UL 489 A)
• Ratings 0.1 to 63 A (1 & 2 pole), 3 pole parallel
(150 A maximum), 4 pole parallel (200 A maximum)
• Optional Auxiliary Switch / Trip Alarm - factory fitted
(6.5 mm wide)
• Optional Shunt Trip (no approvals)
• Wide range of time delays and operating currents
• Precision tripping characteristics
• Ultra compact – 13 mm wide module
• Trip indication with mid-trip handle
• Reset immediately after overload
• DIN mount product in grey shells
• Dual mount product in black shells
• 80 V DC devices are reverse feedable
