Dane techniczne

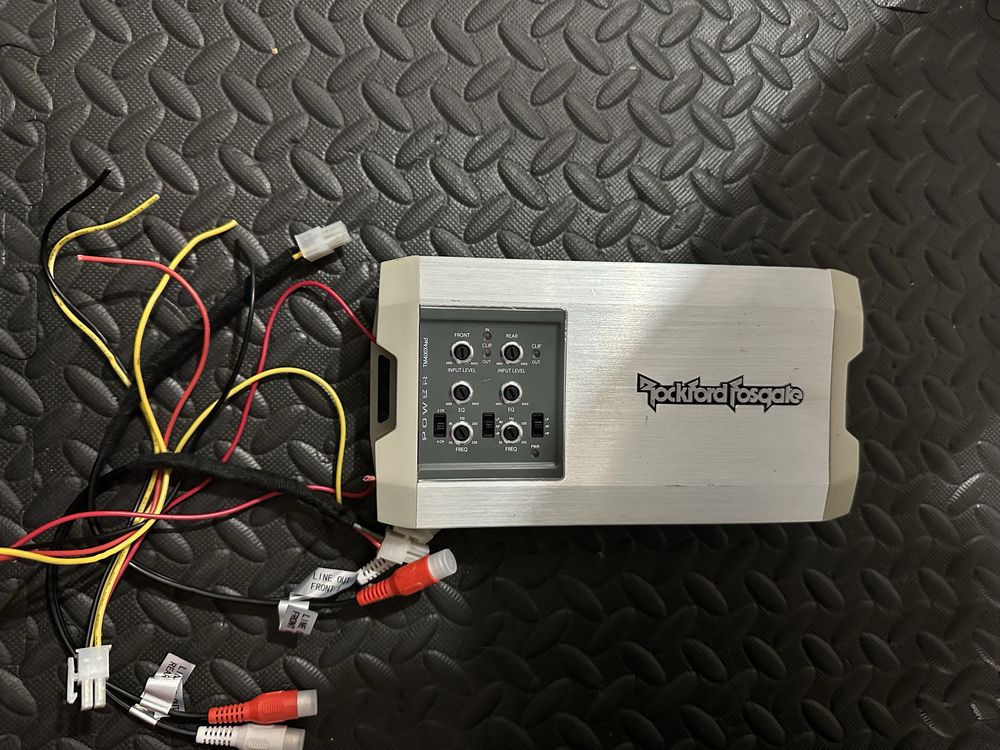

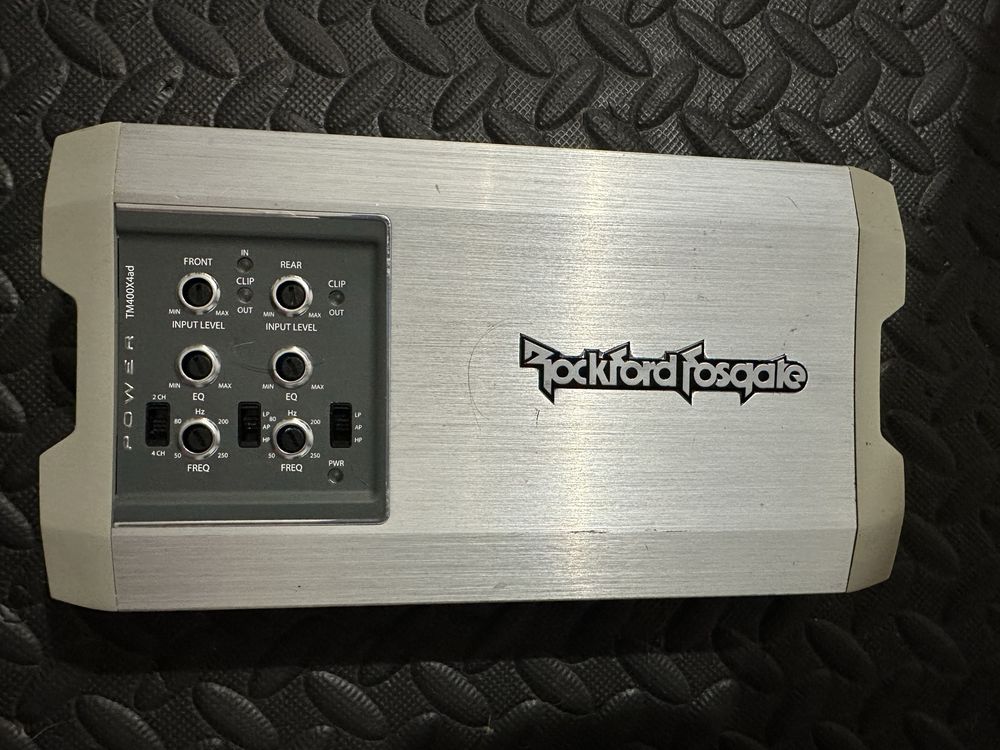

W ofercie wzmacniacz i zestaw kostek

Number of channels 4
total performance
(Total nominal power) 400 Watts
(RMS) 100 Watt x 4 4-Ohm
100 Watts x 4 2-Ohm
200 Watts x 2 4-Ohm bridged
Dynamic power
(PVC/PowerCube®) 128 Watt x 4 4-Ohm
152 Watts x 4 2-Ohm
290 Watts x 2 4-Ohm bridged
Bridgable Yes
Connections front: Left (+) Right (-)
Rear terminals: Left (+) Right (-)
Frequency response 20Hz-20kHz +/-1dB
Input sensitivity 150 mV to 12 V
Circuit topology Class AD
Efficiency (Average) >75%
Clipping factor (THD+Noise) 4 Ohm: 1.0 % 2 Ohm: 1.0%
Signal input Front High/Low-Level input: 4-pin wiring harness
Rear high/low-level input: 4-pin wiring harness
Tone control treble: 0 to +14 dB 12.5 kHz
Bass: 0 to +18 dB 45 Hz
Frequency crossover controls High-pass: 50Hz-250Hz 12dB/Octave Butterworth
Low-pass: 50Hz-250Hz 12dB/Octave Butterworth
All-Pass: Yes
Optical Display Performance: Blue LED
Protect: Red LED
Input clip: Red LED
Output clip: Blue/Purple/Red LED
LED Color Legend:
1BLAU: 0.5 % distortion factor
2VIOLETT: 1% CLEARING FACTOR
3ROT: 10%+ THD
Cross-section of the power cable 10mm²
Current input connection detachable compression clamp
Substitute 1040-57997
Speaker wire gauge 1.5mm²
loudspeaker output connection
Front: 4-pole wiring harness
Rear: 4-pin wiring harness
Cooling dual fan cooled
Heat sink extruded aluminum
Operating voltage 9 - 16 VDC
Recommended fuse (not included) 60 A
Average current consumption (13.8 V music) 28 A
Max. current consumption (13.8 V sine wave) 55 A
Recommended alternator 75 A
Dimensions (H x W x D) 4.1 x 10.8 x 21.1 (cm)
Shipping weight 1.54 kg
