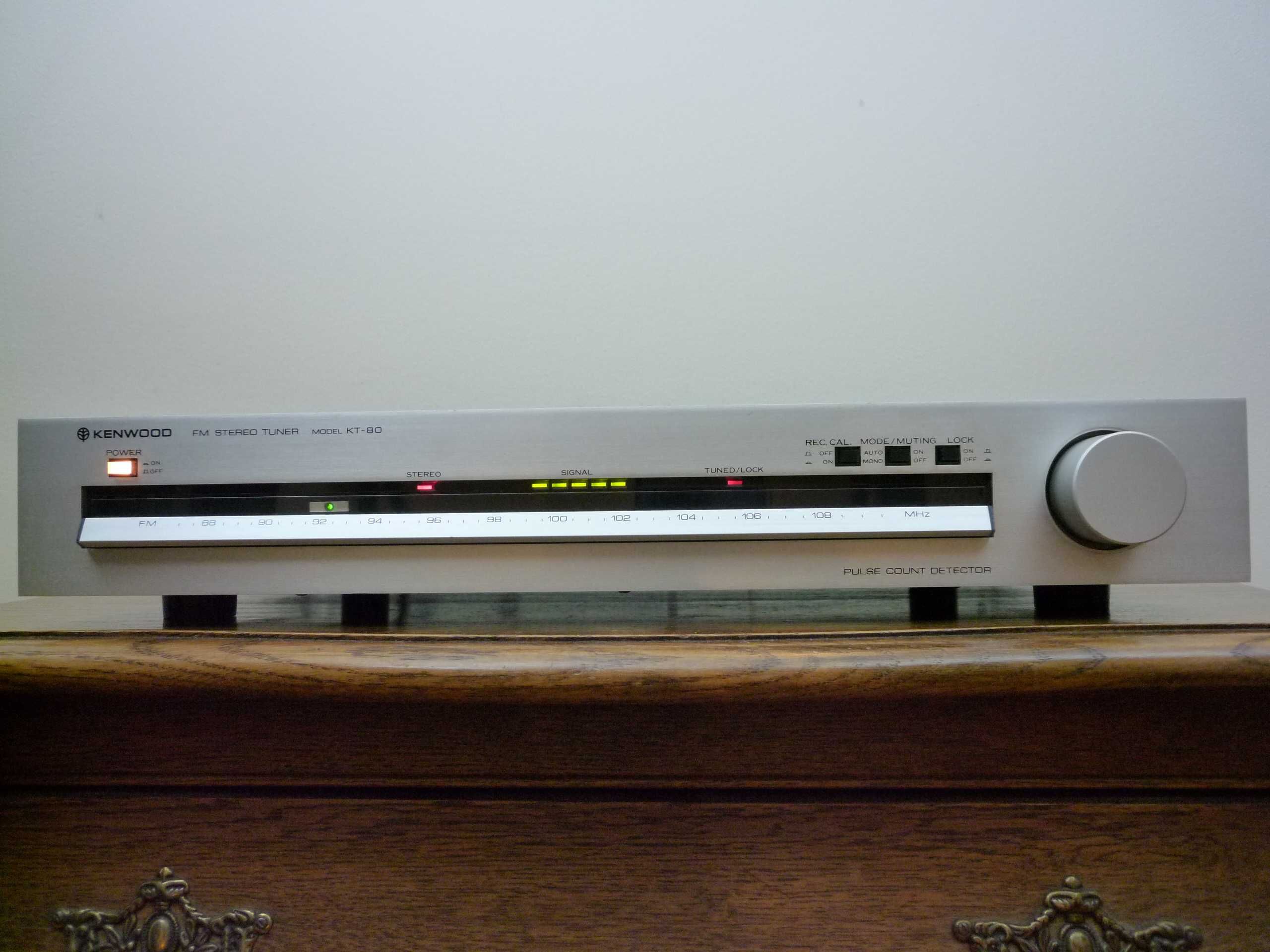

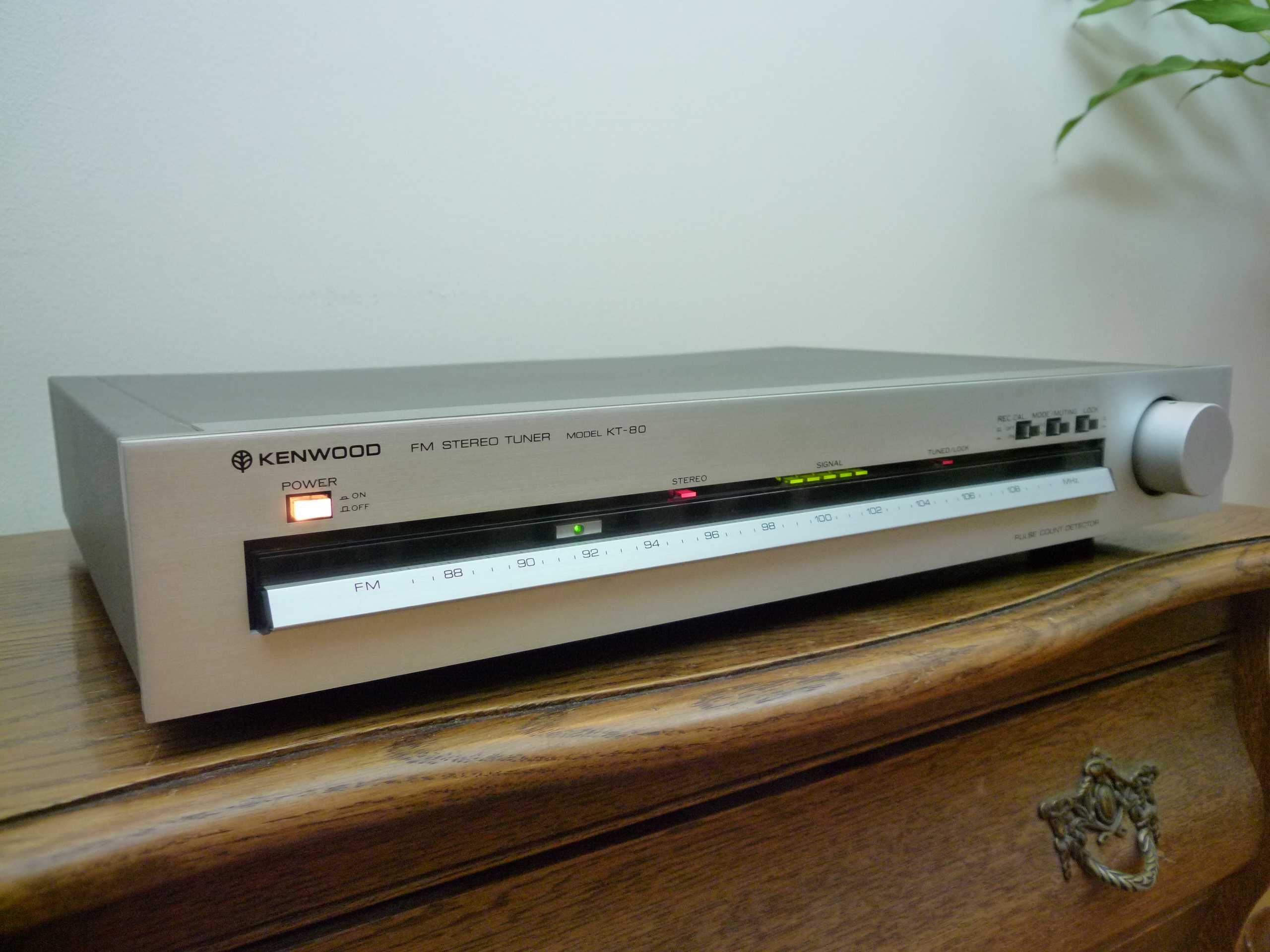

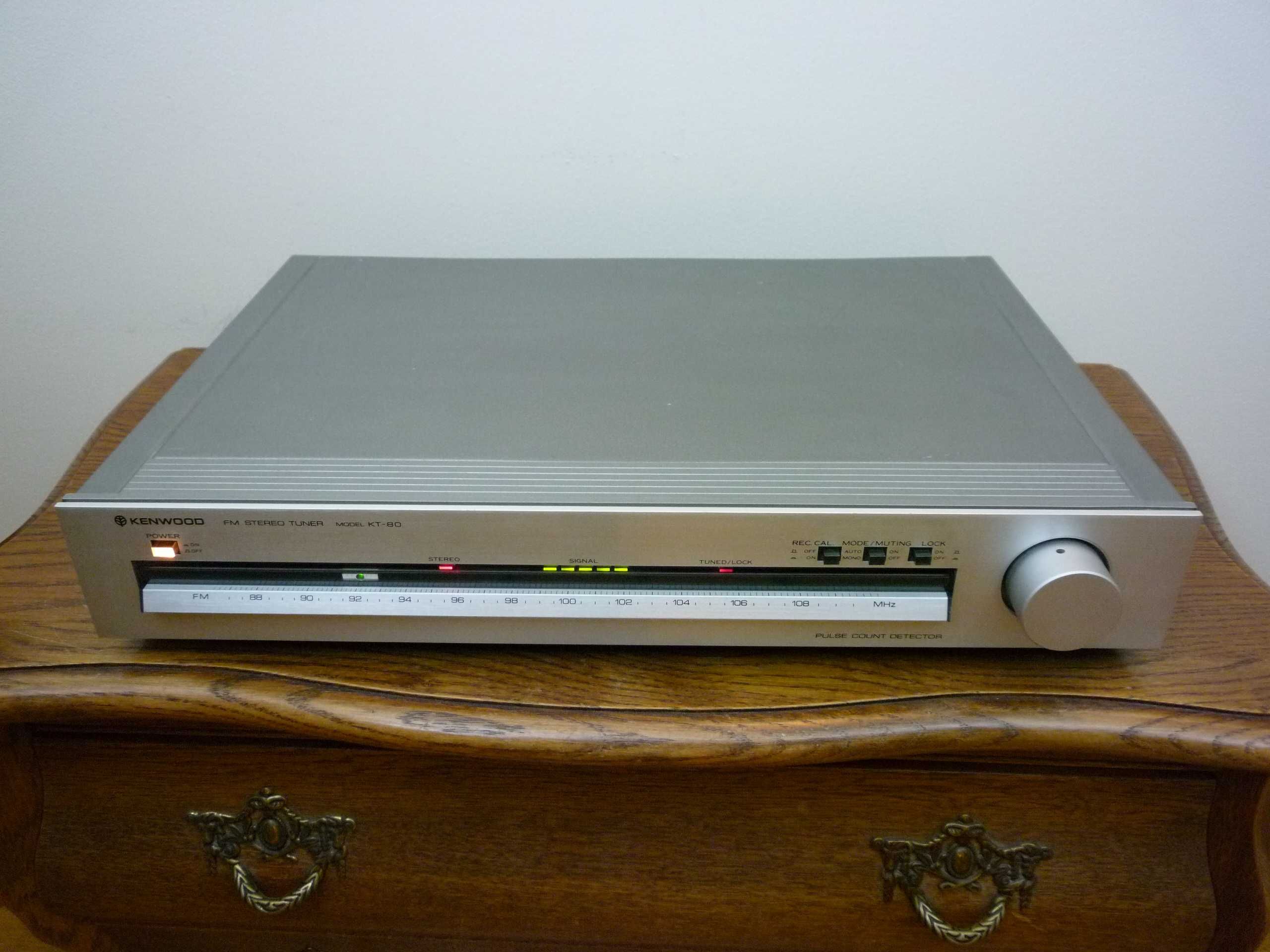

Przedmiotem sprzedaży jest piękne i solidnie wykonane w klasie Hi-Fi radio VINTAGE
Made in Japan

Firmy: KENWOOD

Model: KT-80

Radio zachowane w idealnym stanie i w pełni sprawne.
Wszystko w oryginale i działające na fabrycznych ustawieniach.

Możliwy odbiór osobisty.

Specyfikacja:

Producent: Kenwood
Model nr: KT-80
Typ: tuner stereo
Lata: 1979 - 1982
Wyprodukowano w: Japonia
Kolor: srebrny
Dane:

Main principle
Superheterodyne (common); ZF/IF 10700 kHz
Wave bands
FM Broadcast Band Only
Details:

Hi-Fi equipment
Power type and voltage
Alternating Current supply (AC) / 120; 110-120; 220-240; 220; 240 Volt
Loudspeaker:
- For headphones or amp.
Material:
Metal case
from Radiomuseum.org
Model: Kenwood FM Stereo Tuner KT-80 - Kenwood, Trio-Kenwood Inc.;
Shape
Book-shelf unit.
Dimensions (WHD)
440 x 78 x 333 mm / 17.3 x 3.1 x 13.1 inch
Notes:

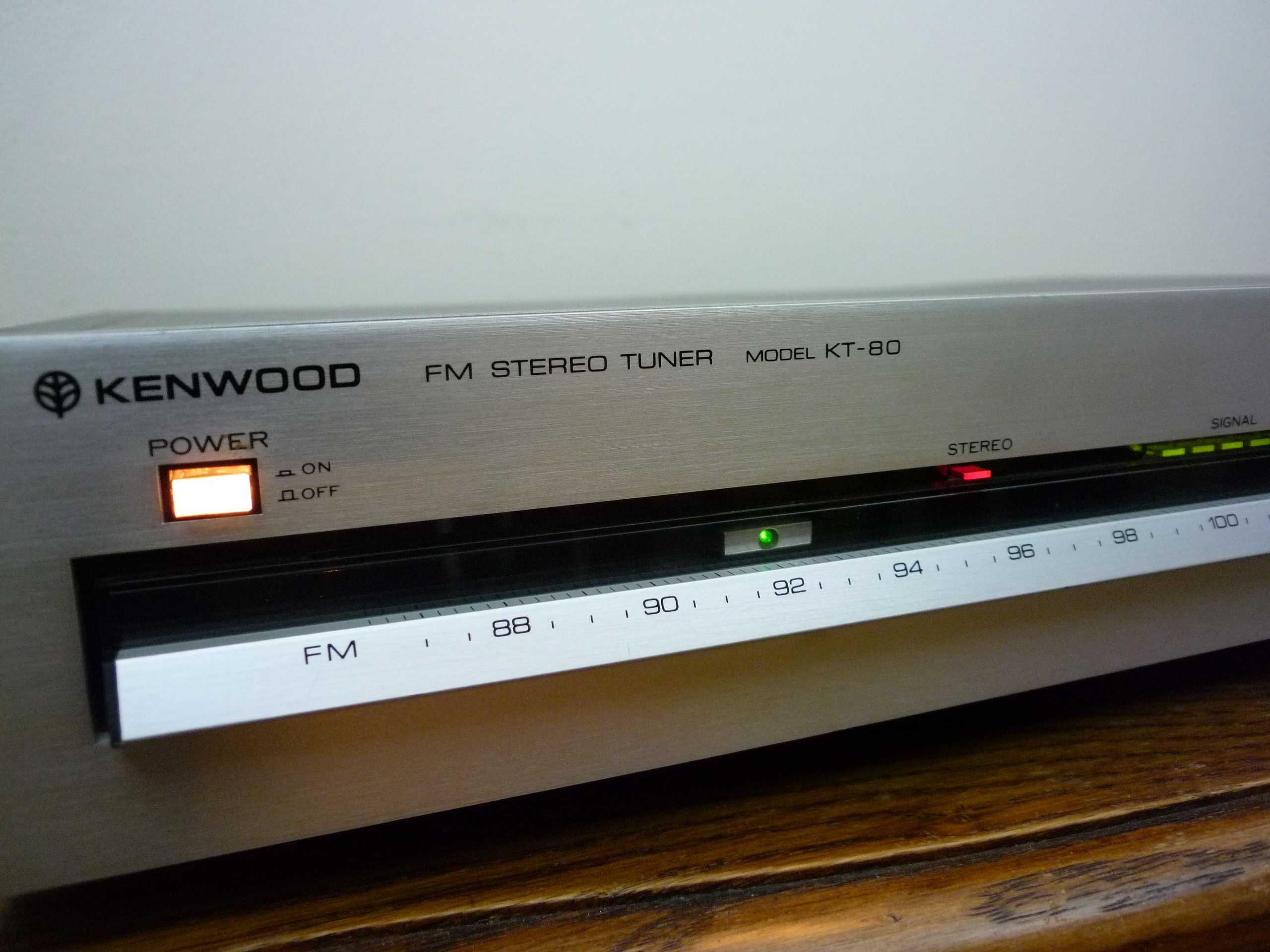

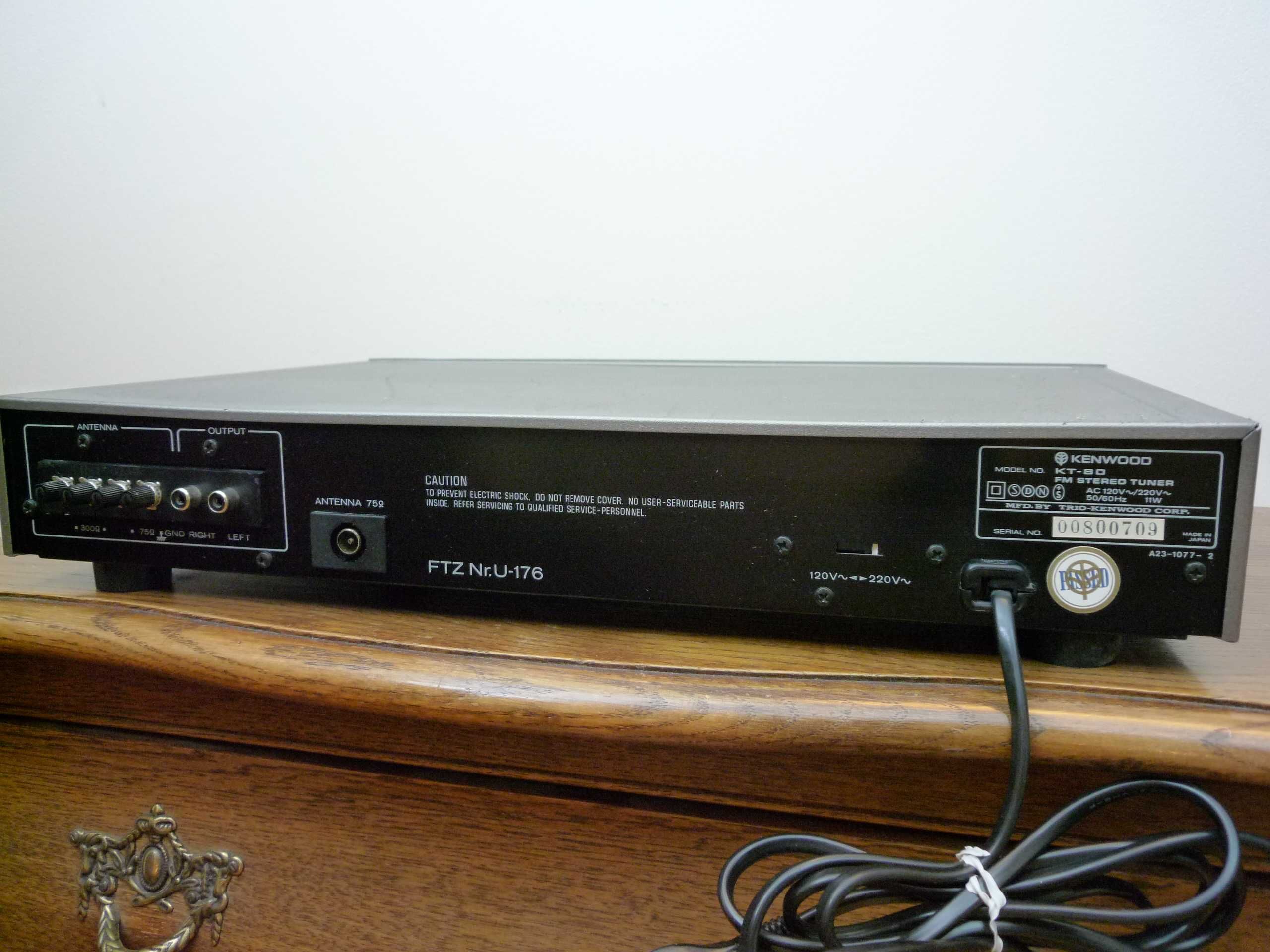

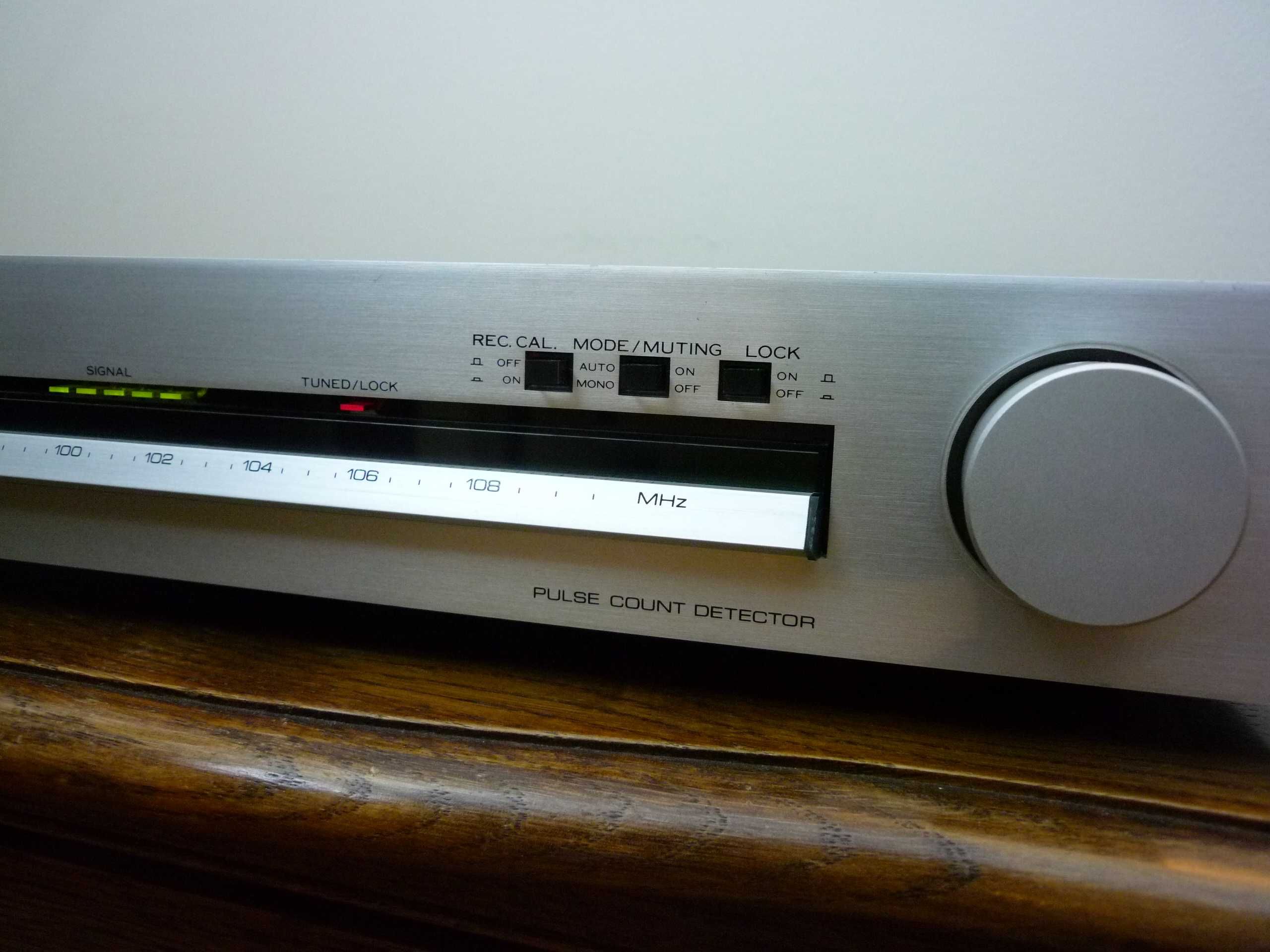

Hi-Fi FM stereo tuner with an analogue dial housed in a metal case. Pulse count detector, 3 stage ceramic filters with double IF conversion. With rotary Tuning control, 5 LED signal strength indicators, FM Stereo and Tuned/Lock indicators, On/Off push button switches for Power, Record Calibration, Mode/Muting and Lock. On the back, terminals for FM antennae and RCA phono Line Output sockets.
Specification:
Frequency Range 88 - 108 MHz
Usable Sensitivity 10.8dBf (1.9µV)
50 dB Quieting Sensitivity Mono: 15.5dBf (3.3µV)
Stereo: 37.2dBf (40µV)
Signal to Noise Ratio Mono: 83dB, Stereo: 80dB
Total Harmonic Distortion
Stereo 0.07% at 1kHz, 0.2% at 50Hz-10kHz
0.07% at 1kHz, 0.25% at 50Hz-10kHz
Capture Ratio 1.5dB
Alt. Channel Selectivity 75dB
Stereo Separation 48dB (1kHz), 40dB (50Hz-10kHz)
Frequency Response 30Hz-15,000Hz +0.2dB,-0.8dB
Spurious Response Ratio 115dB
Image Response Ratio 80dB
IF Response Ratio 100dB
AM Suppression Ratio 65dB
Sub Carrier Product Ratio 65dB
Antenna Impedance 300Ω balanced, 75Ω unbalanced
Output Level 1kHz 100% Mod 0.75V, 1.8kΩ

Versions/power requirements
USA, Canada / 120V AC 60Hz
Europe, Scandinavia / 120V, 220V 50/60Hz with voltage selector switch
Australia, Other / 110-120V, 220-240V AC 50/60Hz with voltage selector switch
UK / 240V AC 50/60Hz

Power Consumption: 11 watts
Same as the Trio KT-80 FM Stereo Tuner.

Net weight (2.2 lb = 1 kg)
4.5 kg / 9 lb 14.6 oz (9.912 lb)

Mentioned in
-- Original prospect or advert (1982 Kenwood Hi-Fi Stereo catalogue)

Literature/Schematics (1)
- - Manufacturers Literature (Service manual Kenwood KT-80 dated 1979-12)

Author
Model page created by Howard Craven. See "Data change" for further contributors.
