uszkodzona jedna końcówka mocy...stopień końcowy nie załącza się, nie grzebany-oryginał
---
uszkodzony Onkyo Integra A-8690 używany.

Technical data

Power:
100 watts into 8 ohms, both channels driven out, 20 Hz to 20 kHz, 0.008% distortion factor.
Output power:
310 watts into 2 ohms
220 watts into 4 ohms
Total harmonic distortion:
0.008% at rated power
0.008% at 1 watt
Frequency Response: CD, Tuner - 2Hz to 50kHz
Total Harmonic Distortion: 0.008%
Input sensitivity: 0.16 mV (MC), 2.5 mV (MM), 150 mV (line)
Signal-to-noise ratio: 75 dB (MC), 94 dB (MM), 107 dB (line)
Output: 150 mV (line), 1 V (pre out)
Speaker load impedance: 4Ω (minimum).
Digital inputs: coaxial, optical.
CD - Direct: yes

Special Features

top model integrated amplifier of the Integra series from Onkyo
true 18-bit linear converter with 8-fold oversampling technology
Opto-Drive system
D/A Converter with Automatic Detection and Switching of Input Sampling Frequency (32.0/44.1/48.0 KHz)

Modular design with separate circuit blocks

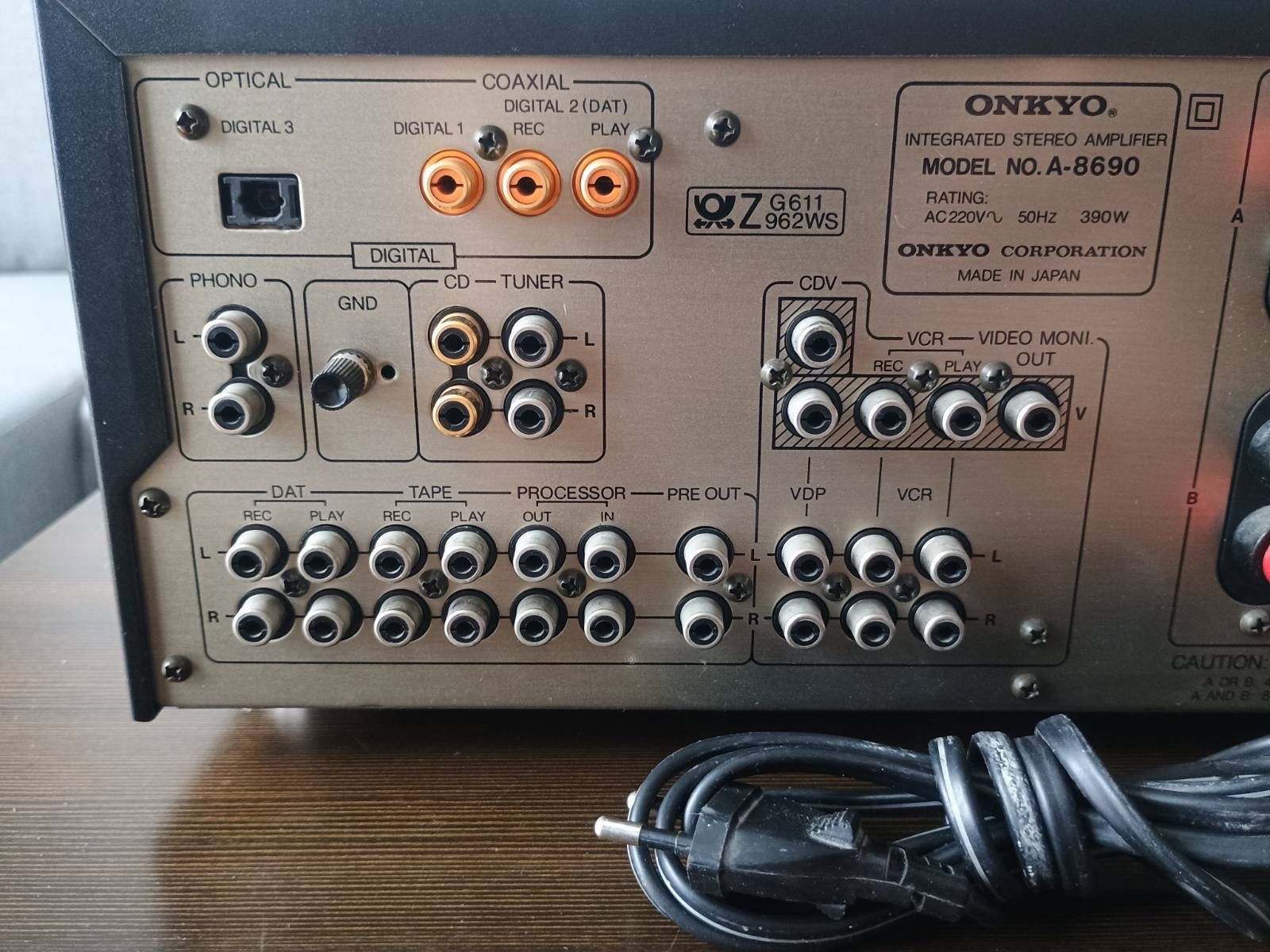

Inputs=CD,Dat ,Tuner, Phono,Tape
Three video inputs:VDP,VCRand CDV
Phono MM/MC switchable
Digital 3:optical
Digital 1/2 :coaxial Rec Selector to determine the program to be recorded while listening to another signal source at the same time.

Video Mode
Bass, Double Bass, Treble and Balance
Speaker A/B separately switchable (4 speakers connectable)
Direct function
Muting function

Gold-plated headphone jack
Made in: Japan
Colour: Black
Remote control: no
Dimensions: 435 x 164 x 392 mm (WxHxD)
Weight: 14.5 kg
