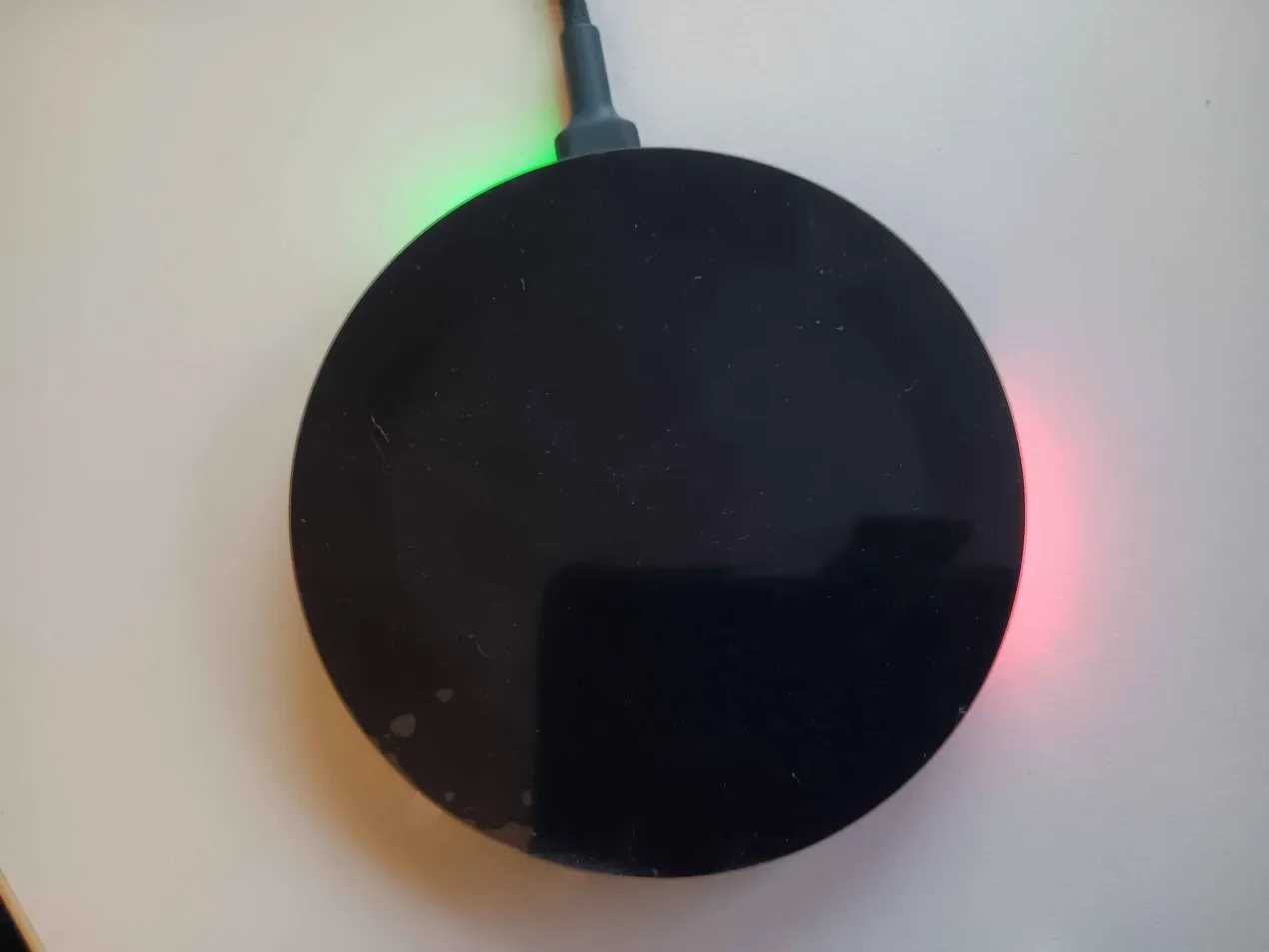

Okągły ekran dotykowy Waveshare ESP32-S3 o przekątnej 2.8 cala. Posiada Capacitive Touch.
Ekran kosztował mnie z wysyłką 199zł. Niestety kupiłem za duży rozmiar i chce go sprzedać. Ekran w pełni funkcjonalny używany przez mniej niż 5 dni. Oryginalne taśmy zabezpieczające i opakowanie.

Moge poddać link do oryginalnego produktu w wiadomości prywatnej.

Display Panel IPS Display Size 2.8 inch
Resolution 480 × 480 Contrast Ratio 1200:1
Communication Interface RGB Driver IC ST7701
Touch Interface
(Touch Version Only) I2C Touch IC
(Touch Version Only) GT911

ESP32-S3R8
Dual-core processor, up to 240MHz operating frequency
QST attitude sensor
QMI8658 (6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer)
TCA9554PWR
GPIO expander chip
FSUSB42UMX
UART selection chip, the 4-pin UART header is disabled when connected to the UART Type-C port
CH343P
USB to UART with onboard automatic download circuit, enabling program burning without additional operations
16MB Flash
RTC chip
PCF85063 RTC chip
Battery recharge manager
ME6217C33M5G
Low dropout regulator, 800mA output (Max.)
USB Type-C port
MX1.25 battery header
MX1.25 2PIN connector, for 3.7V Lithium battery, supports charging and discharging

12PIN multi-functional pin header
IPEX1 connector
Switching to use external antenna via resoldering the resistor
TF card slot
RTC battery header
for connecting rechargeable RTC battery
I2C header
connecting with internal chip, only supports the I2C peripherals and cannot be mapped to other functions
UART header
only available when the USB to UART Type-C port is not connected
USB TO UART Type-C port
for power supply, program burning and debugging
Buzzer
Charge indicator
Lithium battery charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected)
Power indicator
Battery power supply control button
RESET button
BOOT button
