Amplifier:
• Power Output (20Hz - 20kHz):
550 Watts per channel into 8 Ohms (870W into
4 Ohms)
Peak 1.6kW into 2 Ohms
• Maximum output voltage:
67 Volts RMS, 20Hz to 20 kHz; onset of clipping
(190 Volts peak-to-peak)
• THD+N: 0.004% typical, 20Hz to 20 kHz (XLR)
• Signal/noise ratio: > 86dB ‚A‘-weighted (XLR)
• Input impedance: 25KΩ (RCA), 50KΩ (XLR)
• Frequency response: +0, –1dB, 10Hz to 100 kHz
• Maximum peak output current:
105 Amps
• Damping factor:
150
• Output devices:
3+3 pairs (bridged arrangement) per channel

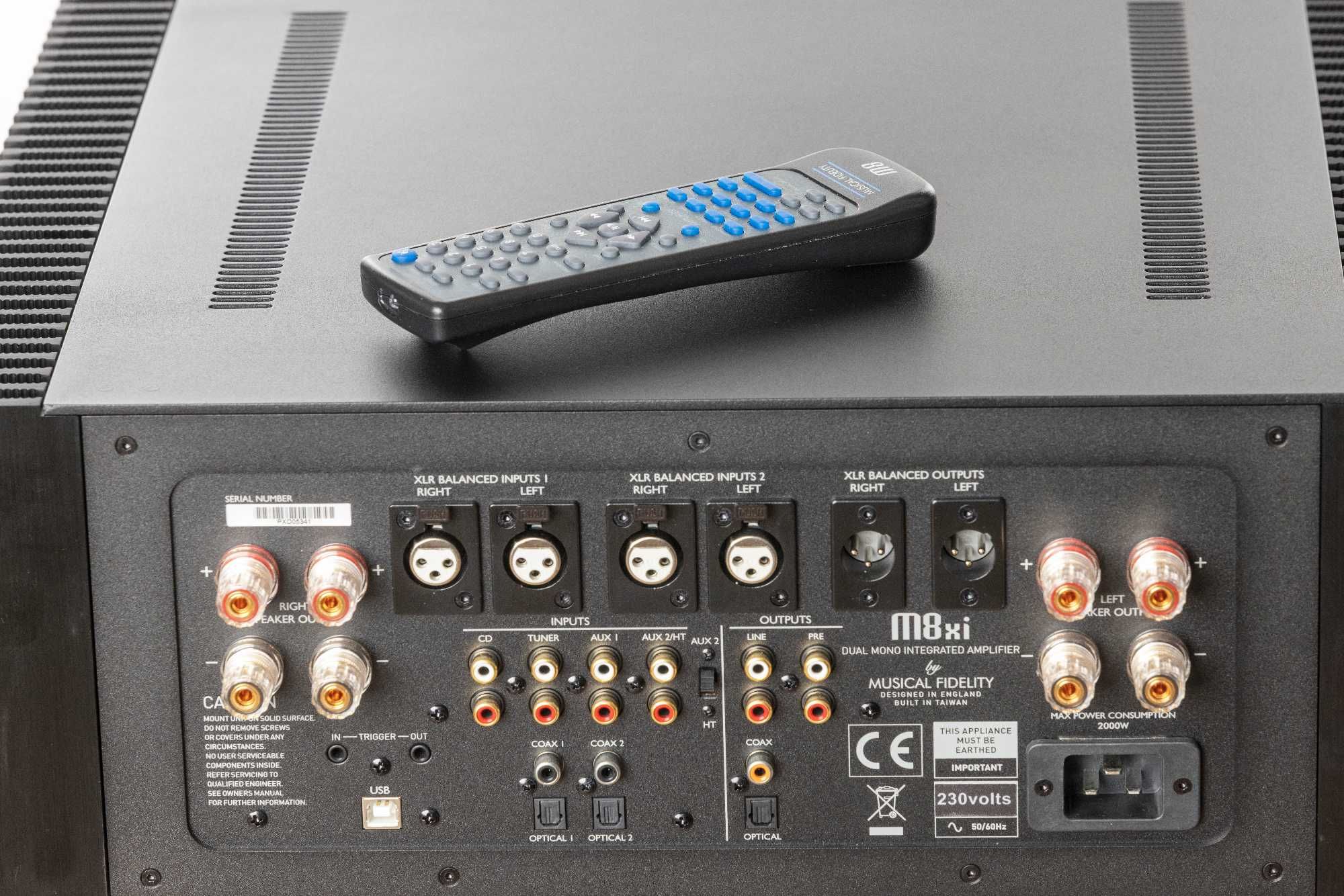

Inputs (analogue)
• 4 pairs line level RCA connectors
• 2 pairs line level XLR (balanced) connectors
Inputs (digital)
• 2x Coax
S/PDIF up to 24 bit 192kHz
• 2x Optical
S/PDIF up to 24 bit 96kHz
• 1x USB B
Asynchronous USB up to 24 bit 192kHz
Outputs (analogue)
• 1 pair line level RCA fixed
• 1 pair pre-out RCA variable
• 1 pair line level XLR variable
Outputs (digital)
• 1x Coax
S/PDIF up to 24 bit 192kHz
• 1x Optical
S/PDIF up to 24 bit 96kHz
General
• Dimensions (WxHxD): 485 x 185 x 510mm
• Max. Consumption: 2000Watts
