Data
General

Manufacturer: JVC
Model: SEA-33, component of the overall system JVC G-X 333
Type: S.E.A. Equalizer
Years of manufacture: 1983 - 1986
Made in: Japan
Color: Silver / Black (also available in all black as JVC SEA-33 B).
Power Consumption:
Dimensions (WxHxD): 435 x 61 x 279 mm.
Weight: 3 kg
Original price approx.: 399 DM

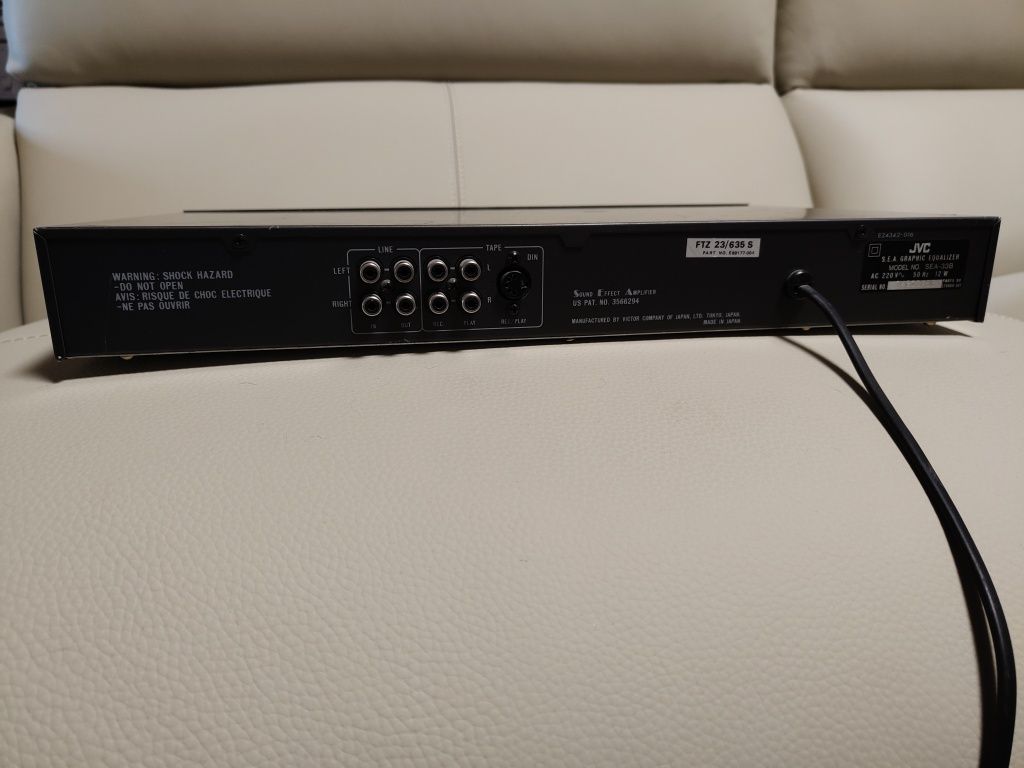

Connections

Number of inputs:
Line In: Input impedance: 47 kOhm
Tape In: Input impedance: 47 kOhm
Microphone: Sensitivity > - 72 dB, Output Impedance 1 kOhm
Number of outputs:
Line Out: 2 V/max. 7 V, output impedance: 100 Ohm
Tape Out: 2 V/max. 7 V, output impedance: 100 Ohm

Technical Data

Frequency response: 10 Hz - 50 kHz (+0, -2 dB)
Distortion factor: 0.005% (20 Hz - 20 kHz)
Signal-to-noise ratio: 115 dB

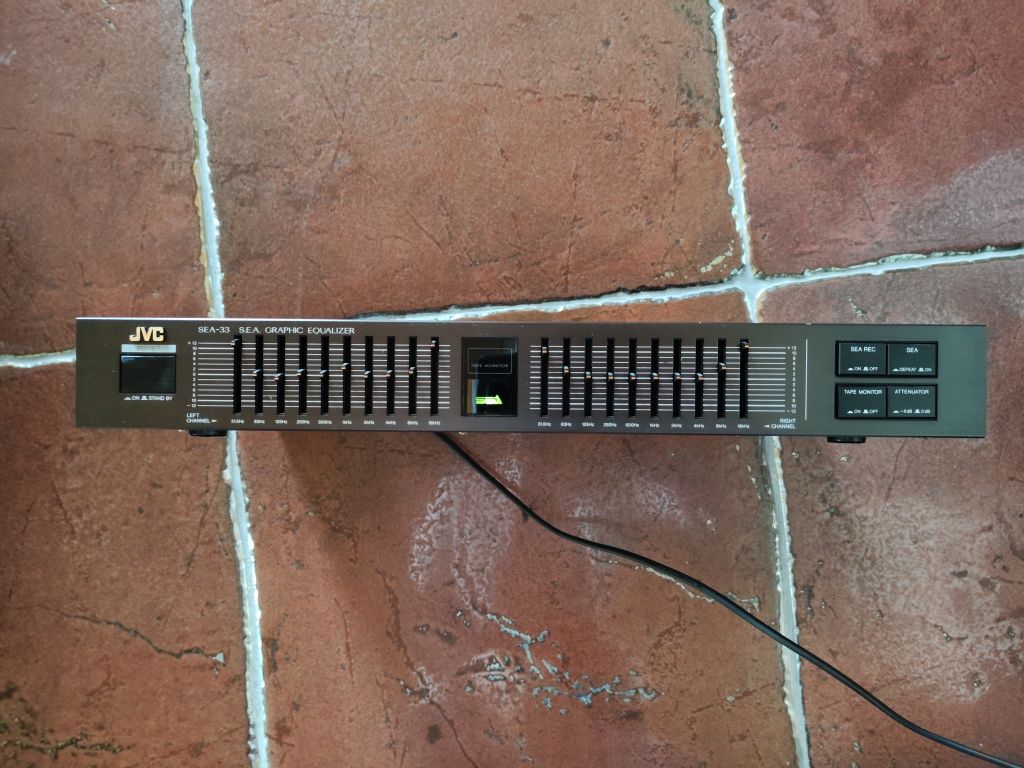

Tone control with 10 sliders each L + R
Equalizer center frequencies:
31.5 Hz, 63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz
Control range: ± 12 dB SEA DEFEAT: 0 dB, SEA ON: 0 dB, ATTENUATOR ON: -6 dB

Special Features

SEA Defeat switch
