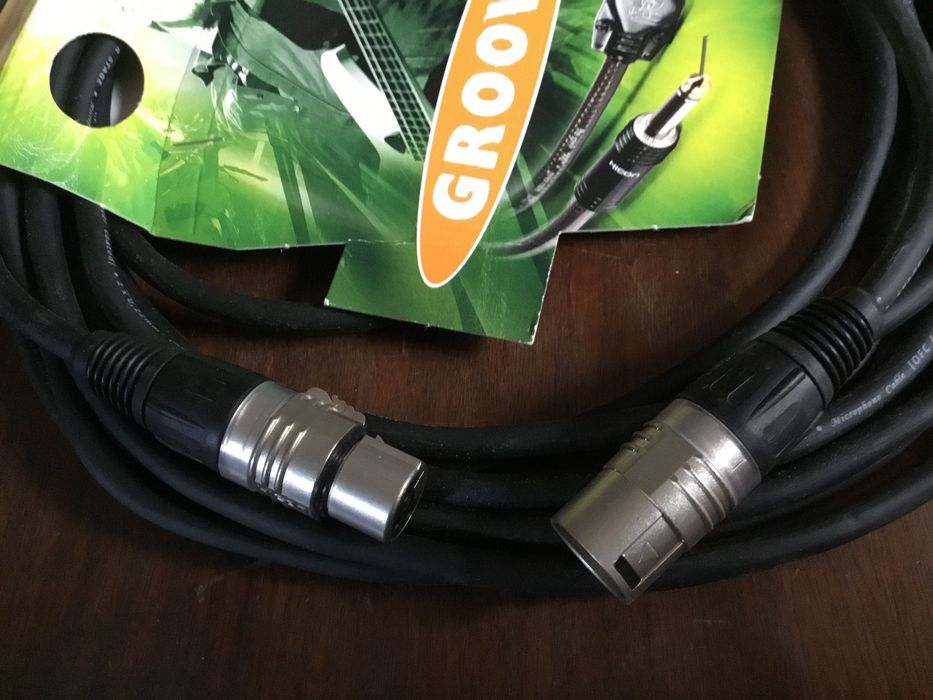

Kabel mikrofonowy Sommer The Stage Silver 6m

Nowy, zapakowany oryginalnie.
Przewód miedź (OFC 99. 9999%) z dodatkiem srebra --ultimate grade silver alloy (935/1000)
Nr producenta na zdjęciu,
Cena ze strony producenta: S2HN-0600-SW
€59.00

Specyfikacja:
Configuration:
6,00 m Microphone Cable SC-Silver Stage; 2 x 0,22 mm²; Soft PVC Ø 6,40 mm; black (200-0011)
1 x HICON XLR BASIC, 3-pole female, silver-plated contacts, nickel-plated metal housing, conductive surface, black plastic cap, 3-chuck collet strain relief (HI-X3CF-V)
1 x HICON Plastic cap, Metal cap for all HICON-XLR connector, plastic (HI-XC-CAP-P)
1 x HICON Code ring for HICON XLR straight transparent (HI-XC-TR)
1 x HICON XLR BASIC, 3-pole male, silver-plated contacts, nickel-plated metal housing, conductive surface, black plastic cap, 3-chuck collet strain relief (HI-X3CM-V)
1 x HICON Plastic cap, Metal cap for all HICON-XLR connector, plastic (HI-XC-CAP-P)
1 x HICON Code ring for HICON XLR straight transparent (HI-XC-TR)
1 x Cardboard packaging for blister hooks, Design Groove+

Advantages:
1. tightly, concentrically stranded class 6N (OFC 99. 9999%) copper wires for the SC-SILVER STAGE which are then refined and smoothed with the ultimate grade silver alloy (935/1000) so they will deliver lasting performance. The SC-SILVER STAGE is fitted with the most advanced gas-injected and smoothed wire insulation.

2. Incredibly clear, clean sound image
3. Permanently neutral transmission, even after frequent use
4. Flexible and robust outer jacket of a temperature resistant PVC compund
5. Surge impedance 120 ohms, within the AES/EBU tolerances
Application:

Upscale microphone cable for studio and stage
Balanced cable for high-grade microphones, mixing consoles and patchbays

Przewód -parametry;

Capac. cond./cond. per 1 m (audio) [pF]: 53
Capacity wire/wire at 1 ft. (audio) [pF]: 16.1544
Capac. cond./shield. per 1 m (audio) [pF]: 103
Capacity wire/electic screen at 1 ft. (audio) [pF]: 31.3944
Impedance [Ω]: 123
Insulation resist. per 1 km [GΩ]: 1
Insulation resist. per 1000 feet [GΩ]: 0.3048
Insulation resist. per 1 km (audio) [GΩ]: 1
Insulation resist. per 1000 feet (audio) [GΩ]: 0.3048
Conductor resistance per 1 km [Ω]: 42
Conductor resistance per 1000 ft. [Ω]: 12.8016
Shield. resistance per 1 km [Ω]: 17,6
