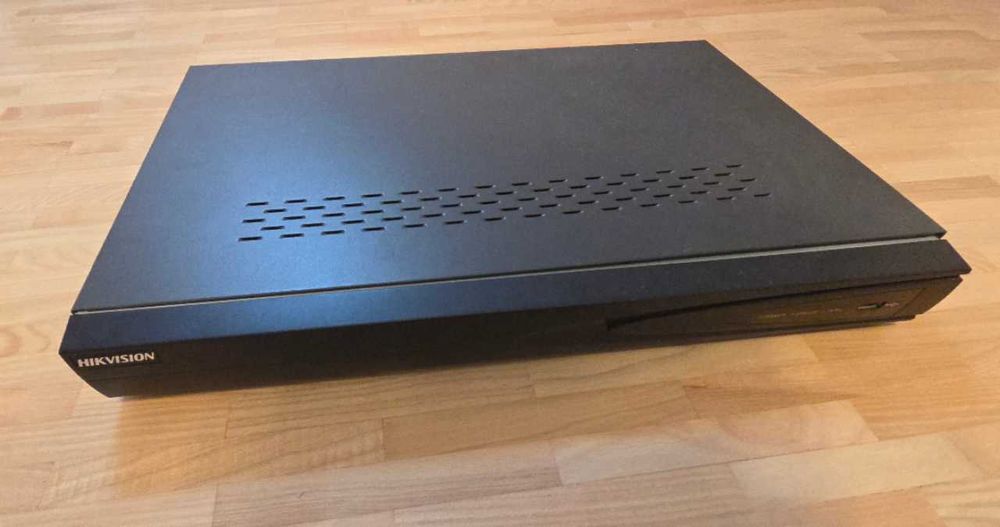

Rejestrator NVR Hikvision: pasmo wejściowe 40Mbps, 8 kanałów IP, maksymalna rozdzielczość nagrywania 5MP, HDMI, VGA, opcjonalne wyjście BNC, zainstalowany dysk 2TB, 2 x USB2.0, RS-485 (PTZ), 8 portów PoE,

DS-7604/7608NI-SE/(8)P Embedded NVR
DS-7600NI-SE/P
1. LAN Network Interface
2. RS-485 Interface
3. 100~240VAC Power Input
4. Power Switch
5. USB Interface
6. GND
7. HDMI Interface
8. VGA Output
9. Audio In
10. Audio Out
11. Network Interfaces with PoE function
12. Alarm In / Out

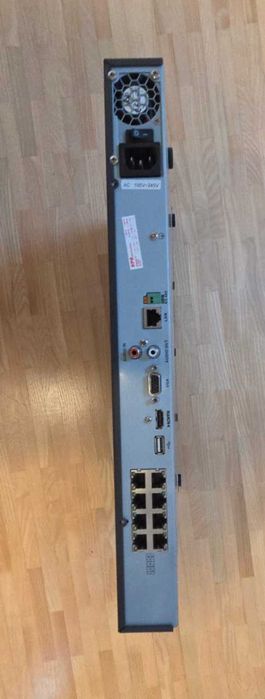

Rear Panel of DS-7604NI-SE/P
• Up to 8 Integrated PoE Network Interfaces
• Up to 5 Megapixels Resolution Recording
• Up to 8-ch synchronous playback
at 4CIF resolution.

DS-7604NI-SE/P DS-7608NI-SE/8P
Video / Audio input
IP Video input 4-ch 8-ch
Audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Video/Audio output
Decoding resolution 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI/VGA output 1-ch, resolution:
1920 x 1080P /60Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz,
1024 x 768 /60Hz
Audio output 1-ch, RCA (Linear, 1kΩ)
Playback resolution 5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Synchronous playback
4-ch, 720P / 2-ch, 1080P / 1-ch, 5MP8-ch, 4CIF / 4-ch, 720P / 2-ch, 1080P / 1-ch, 5MP
Hard disk
Type 2 SATA interfaces for 2 HDDs
Capacity Up to 4TB capacity for each disk
External interface
Network interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive
Ethernet interface
4 independent 10 /100 Mbps PoE Ethernet
interfaces
1 RJ-45 10 /100 /1000 Mbps self-adaptive
Ethernet interface
8 independent 10 /100 Mbps PoE Ethernet
interfaces
Serial interface 1 RS-485 half-duplex interface
USB interface 2 x USB2.0
Alarm in 4
Alarm out 1
Input 20 Mbps
Output 60 Mbps
40 Mbps
80 Mbps
145W (including 8-port PoE)
General
Power supply 100~240VAC, 47~63Hz, 3A
Power Consumption 67W (including 4-port PoE)
Working temperature -10 °C ~ +55 °C
Working humidity 10%~90%
Chassis 19-inch rack mounted 1U chassis
Dimensions (W x D x H) 445 x 290 x 45 mm
Weight 2.5Kg (without HDD or DVD-R/W)
1. LAN Network Interface
2. RS-485 Interface
3. 100~240VAC Power Input
4. Power Switch
5. USB Interface
6. GND
7. HDMI Interface
8. VGA Output
9. Audio In
10. Audio Out
11. Network Interfaces with PoE function
12. Alarm In / Out
Rear Panel of DS-7608NI-SE/8P
