Wystarcza dwa kable ethernet i mozesz podlaczyc do komutera lub routera bez potrzeby ciagniecia do 10 metrow kabla RJ.

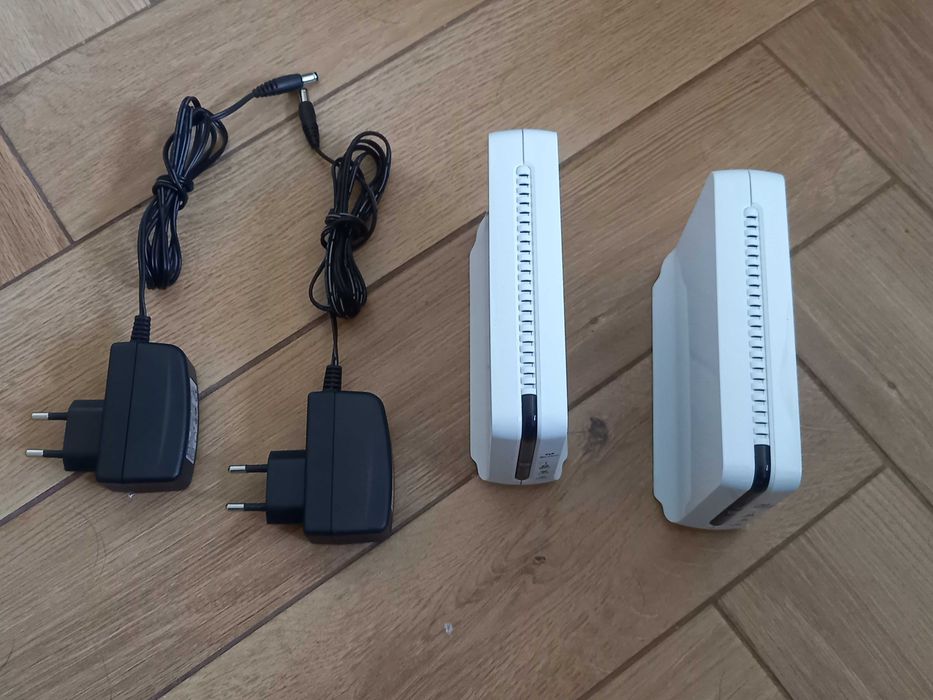

Ethernet po WIFI - łączność bezprzewodowa do drukarki z RJ-45 cały komplet komplet / para urządzeń ZAP100A, 2 zasilacze.

Inteno ZAP100 Legacy product
Video bridge for multi-room HD IPTV

Video bridge
for multi-room
HD IPTV
Features
• Wire-like video experience
• Superior home coverage
• 802.11n 3x3
• High interference immunity and trouble-free
co-existence with neighboring systems
• Solves throughput bottleneck for wireless multi-room
DVR support
• Plug & play installation
• Real time Transmit Digital Beam Forming MIMO
• Antenna diversity (4 Antenna elements) for maximum
robustness
• Advanced interference detection and fast automatic
channel scanning and hopping
• Advanced regulatory requirements support including
Dynamic Frequency Selection (DFS)
• DLS support for MR-DVR support
• IGMP snooping, Multicast to Unicast translation and
WDS support for seamless IPTV network integration
• WPS for simple setup and security configuration
• TR-069 remote monitoring and management

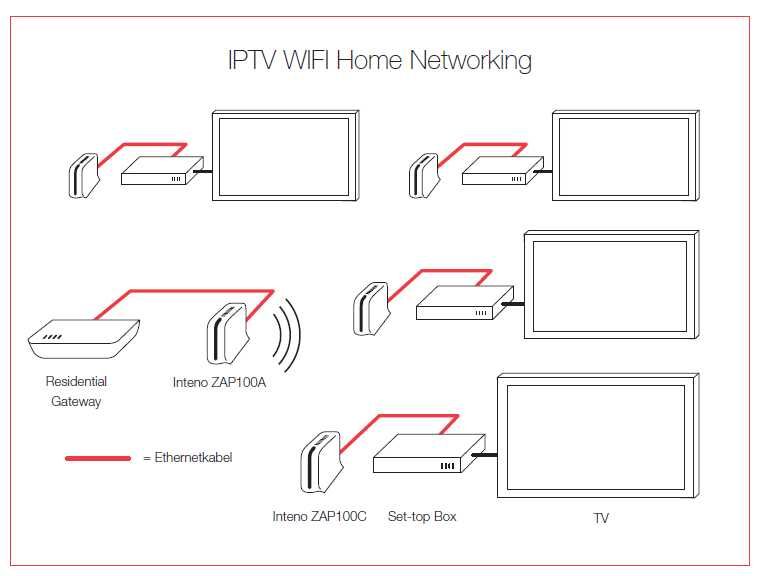

The Inteno ZAP100 3x3 video bridge is
a high quality WiFi based HD/SD video
bridge system designed for reliable
distribution of multiple video streams (IPTV)
throughout the home. ZAP100 is a true plug and
play and robust multimedia networking solution.
The ZAP100 enables reliable and robust connectivity of HD and SD IPTV streams
from Ethernet equipped broadband gateway or DVR to multiple IP set top boxes.

Specifications, Physical
Characteristics
Power (external power adapter)
12VDC, 1A
Antennas
Internal antenna array with
4 Omni-directional elements
Chipset
Single-chip design CL1830 3x3 802.11n
Ethernet ports
10/100/1000 Mb/s, RJ-45 port,
Automatic MDI/MDIX
LED display
Power, Ethernet, Wireless, Video
link quality

Control buttons
WPS push button, Reset button
Operating temperature
0 - 40° C
Humidity
10% - 90% (Non condensing)
Certifications
CE (Europe)
Specifications, Management
Configuration
Web-based GUI management,
CLI (Telnet), TR-069
Software upgrade
Web-based, TR-069
Specifications, WiFi
Operating frequencies
4.9 – 5.8GHz, complies with 802.11h radar detection
Security
WPA2 (AES)
Channels
Country dependent for the following channel ranges: 36-64, 100-140,
149-165
Automatic transmit power control
Supported
Country specific power limits
Supported

OptimizAIR™
– Breakthrough Technology for Best Performance
Inteno ZAP100 employs cross-layer optimization of special PHY, MAC and smart antenna technologies to achieve dramatic increases in range and coverage, typically exceeding off the shelf 802.11n systems’ HD performance by over 500%.
Industry-first Phased-Array transmit beam forming MIMO technology delivers long reach and high HD throughput with zero packet error rate. Unlike other
solutions, the ZAP100 is completely channel aware with special silicon-based real-time processing that optimizes performance. It manages the radio
power budget, transmission rate and detects noise levels to optimally deliver multiple HD video streams in the home.
