Dobry. Sprzedam nowego drona - model iFlight Alpha A65 wersja V2 odbiornik FRSKY IF8 R81 Dron w wersji V2 - ulepszonej. Ma nowe i poprawione silniki, kamerę, płytę FC i obudowę (wytrzymalszą). Sporo zmian na plus. W sam raz na jesień zimę do latania w zamkniętych pomieszczeniach lub halach. Polecam.

Opis producenta (oryginalny)

The iFlight Alpha A65 V2 is an even smaller size 65mm lightweight 24.5g whoop. This version features an updated canopy, frame, motors, AIO Board, and camera. Stuffed with our newest electronic components and technology, this thing will guarantee hours of practice or racing across even the smallest spaces. The Alpha A65 is your answer to the problem of flight time efficiency while maintaining sufficient power.

Features

Butter smooth XING 0803 (more torque and efficiency with longer flight times)
Ducts to protect the sensitive environment or yourself
Pre-tuned with smooth cinematic settings
1200TVL 2.1mm 160° Camera
24.5 grams (without battery)

V2 UPGRADES

January 2022: Before XING 0802 22000KV changed to XING 0803 17000KV
Upgraded Canopy and Boby Frame
Upgraded Camera

Specifications

Motors: XING 0803 17000KV FPV Micro Motor
Flight time: 3-4 min cruising (1S 300mAh)
Camera: 1200TVL 2.1mm 160° Camera
AIO: Succex F4 1S 5A AIO Whoop
Weight: 24.5g (without battery)
Propellers: HQProp 31mm
FC Pattern: 25.5x25.5mm
Propeller Size: 31mm
Body size: 46x46mm
Wheelbase: 65mm
Antenna: Whip

FC // SucceX F4 1S 5A AIO Whoop Board

Size：29*29mm
Mounting pattern: 25.5*25.5mm/φ3mm （half-hole)
Connector： Micro-USB
Weight: 5.4g (with power cable, VTX, and VTX antenna)
MCU：STM32F411
Gyro： MPU6000
Blackbox： no
BEC output：5V 1.2A
INA pad：n uart2
Barometer： no
FC Firmware：MatekF411RX
ESC Firmware： O-H-30 BLS 16.8

ESC // 5A

Current: 5A continuous and peak 6A
Current scale: 400
Input：1S
Signal Support: Dshot， Oneshot， Multishot
Current sensor： yes
BLHeli： BLHeli-S
ESC Telemetry： no

VTX

Connector: UFL/IPEX
Protocol: Smart audio
Power: PIT/25/50mW
Input voltage: 5V
Channels: 48CH

FACTORY SETUP and WIRING DIAGRAM

This BNF comes pre-built and setup with all necessary parameters to bind-and-fly. We also added a basic filter and PID tuning as well as some Betaflight tweaks to enhance the flight experience.

TIPS

VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
If you have none frsky transmitter,please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
Our current frsky receivers default version in 2.XX, requires to use the same version of frsky transmitter.

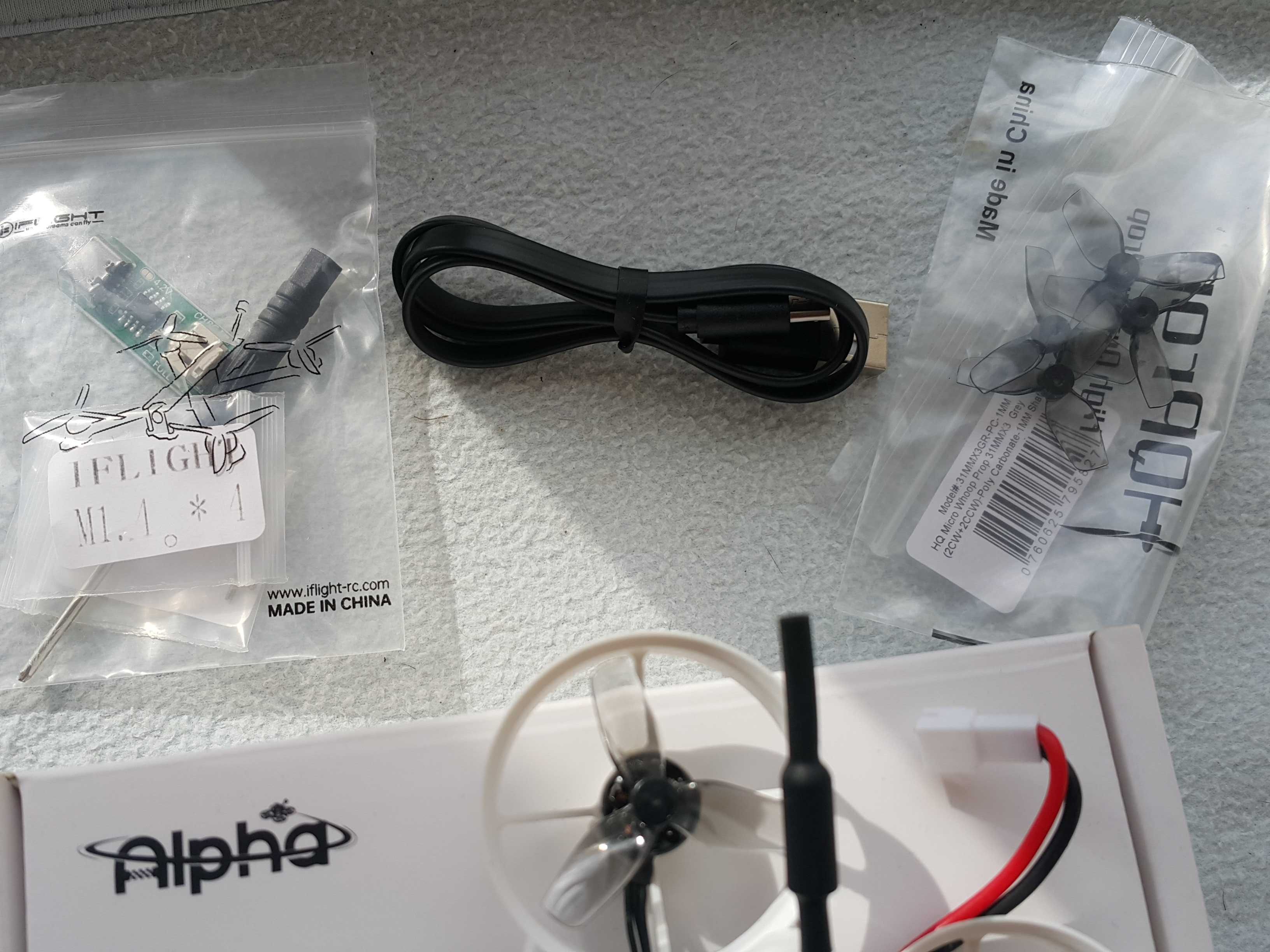

Includes

1x iFlight Alpha A65 Tiny Whoop Drone - Analog - V2 (Prebuilt and Tested)
2x HQ 31mmx3 1mm (Set of 4) - Color May Vary
1x MicroUSB Cable
