Data
General

Manufacturer: Kenwood

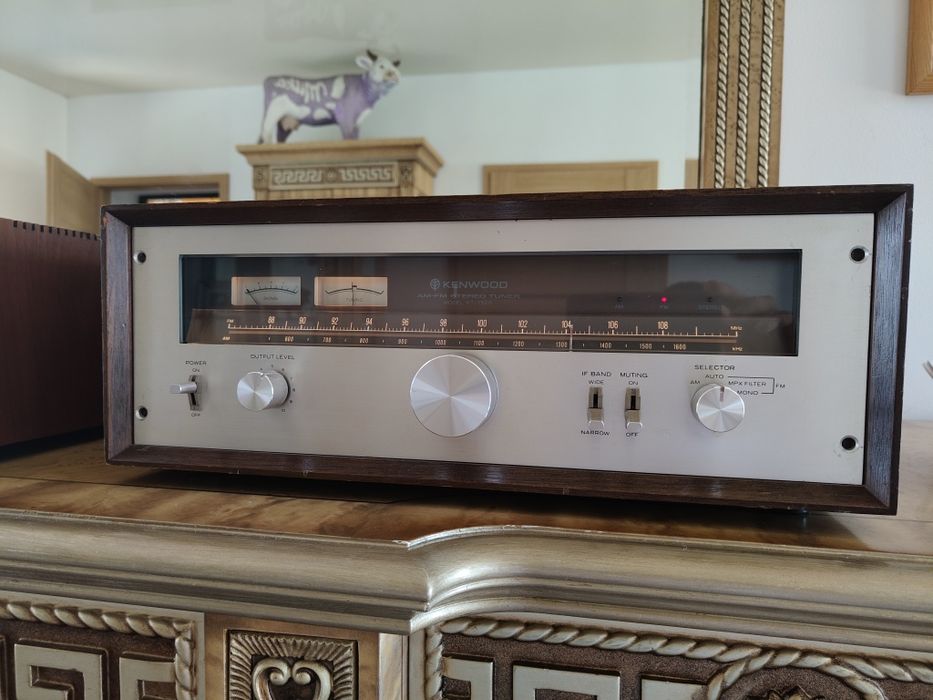

Model: KT-7500
Years of manufacture: 1977 - 1979
Made in: Japan
Color: Silver
Remote control: No
Power consumption: 20 W
Dimensions: 430 x 149 x 377 mm (WxHxD)
Weight: 7.6 kg
Original price approx.: 900 DM

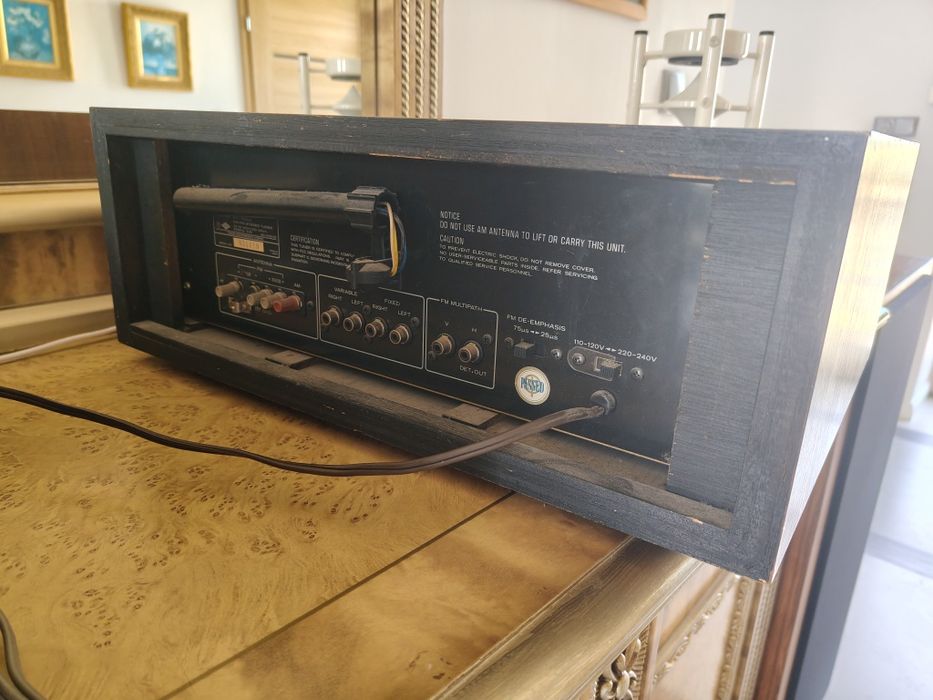

Connections

Number of inputs:
Antenna: AM, FM: 75 / 300 Ohm
Number of outputs:
Output level Fixed: 1.5 V
Output level: Variable 0 - 1.5 V
V and H for oscilloscope

Technical Data

Reception: VHF, MW
Frequencies:
VHF: 88 - 108 MHz
MW: 525 - 1600 kHz

Frequency response: 20 - 15'000 Hz +0,2dB/-1,5dB
Input sensitivity: 1.7µV
Distortion factor at WIDE(Mono/Stereo):
100Hz: 0.08%/0.13%
1000Hz: 0,08%/0,1% 6000Hz: 0,08%/0,1%

15000Hz:0,15%/0,5%
Distortion factor at NARROW(Mono/Stereo):
100Hz: 0.1%70.4%
1000Hz: 0.2%/0.3%
6000Hz: 0,3%/0,3%

15000Hz:0,15%/1,5%
Signal to Noise Ratio(Mono/Stereo: 75dB/77dB

Channel Separation(50Hz-10000Hz): Wide:43dB Narrow:38dB
Separation efficiency: Wide: 30dB Narrow: 100dB

Co-wave selection: 110dB
Spurious wave selection: 105dB
IF attenuation: 110dB
IF attenuation:
AM suppression: 60dB

Special Features

Connections for oscilloscope

Remarks
Other models in the same series:
Kenwood KT-5500
Kenwood KT-6500
Kenwood KT-7500
