Witam.
Na sprzedaż klasyczny Japoński amplituner z końcówki lat 70.
AIWA AX-7800E
Amplituner wiadomo używany, sprawny.
Jak na swoje lata stan wizualny bardzo dobry.

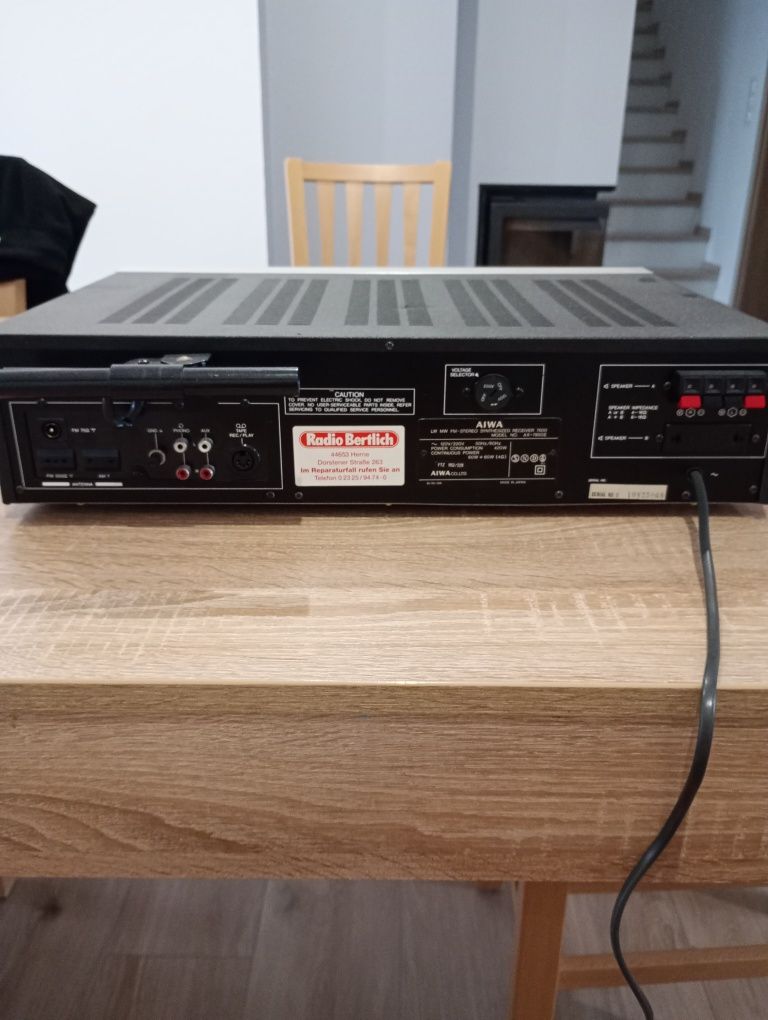

Sprzęt posiada wejścia dźwięku RCA oraz wyjście na głośniki.
Posiada radio FM.

Made in Japan

Specyfikacja:
Connections

Number of inputs:
Phono (MM): 2.5 mV / 50 kOhm
Aux: 150 mV / 50 kOhm Tape: 150 mV / 50 kOhm

Antenna (FM: 75, 300 Ohm, MW: 300 Ohm).
Number of outputs:
Tape Rec: 150 mV
Headphones (6.3mm jack)
2 pairs of loudspeakers

Technical Data

Amplifier

Continuous power (at distortion):
8 Ohm: 2x 60 W
4 Ohm:
Dynamic power:
8 Ohm:
4 Ohm:
Total harmonic distortion: 0.05%
Attenuation factor: 50 at 8 Ohm
Frequency response:
Phono: 30 - 15'000 Hz, ± 0,5 dB
High level: 10 - 50'000 Hz, ± 1,0 dB
Signal-to-noise ratio:

Phono: 80 dB
High level: 100 dB
Stereo channel separation:
Tone control:
Bass: ± 10 dB at 100 Hz
Tilt frequencies: 200 Hz, 400 Hz
Treble: ± 10 dB at 10 kHz

Tilt frequencies: 2.5 kHz, 5 kHz
Loudness: yes
High Filter:
Low Filter (Subsonic):
Mute:
Direct/Line-Straight:

Tuner

Reception: FM/MW
Frequencies:
FM: 88 - 108 MHz
MW: 535 - 1605 KHz
Input sensitivity:
FM: 1.9 µV
MW: 15 µV
Frequency response: 30 - 15'000 Hz (+0,2 dB / -0,5 dB)
Distortion factor:
FM (1 kHz): 0.07 % (mono), 0.2 % (stereo).
Signal-to-noise ratio:
FM mono: 75 dB
FM stereo: 70 dB

MW: 55 dB
Channel separation: 47 dB (1 kHz)
selectivity:
Co-wave selection: 1.0 dB
Spurious wave selection:
FM: 70 dB
Mirror frequency attenuation:
FM: 90 dB
MW: 40 dB IF attenuation:

FM: 110 dB
MW: 40 dB
AM suppression: 55 dB
Fixed station memory: 6x FM, 6x MW

Special Features

Digital display for frequency and preset station
LED power indicator

Możliwość przetestowania sprzętu na miejscu lub wysyłka.
