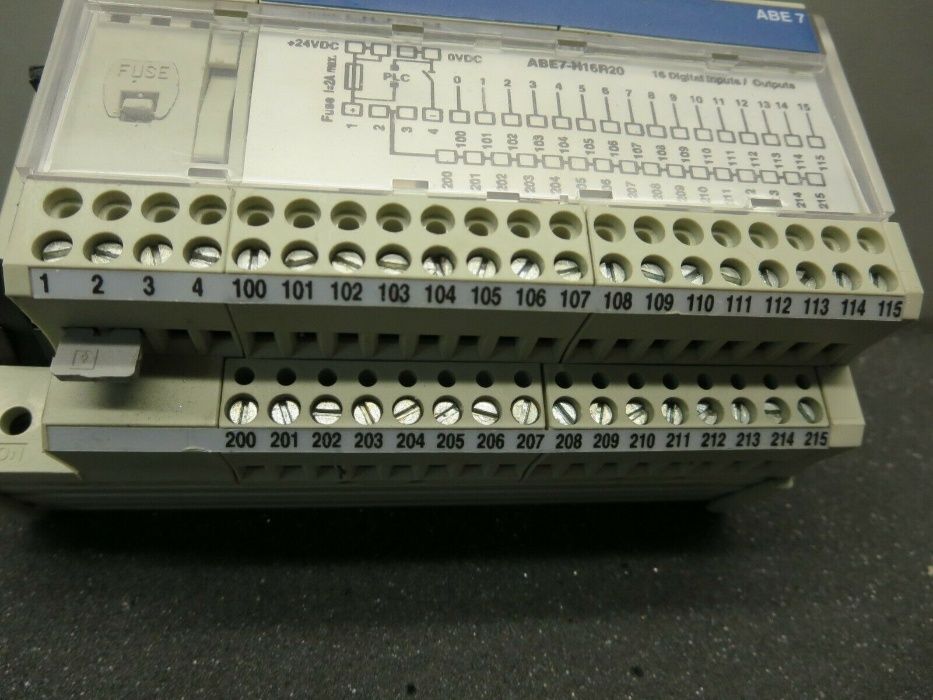

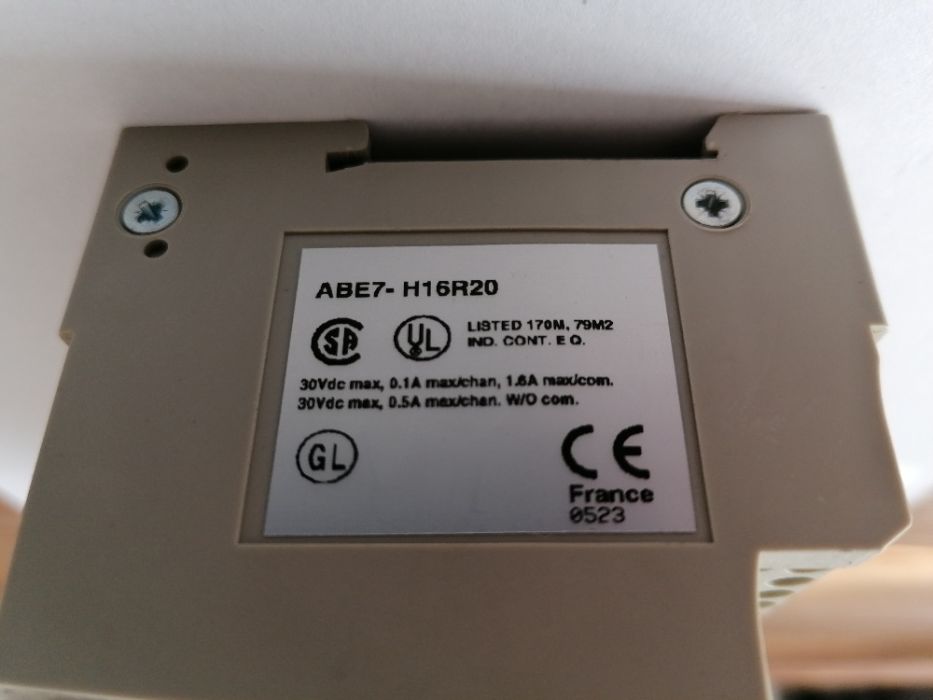

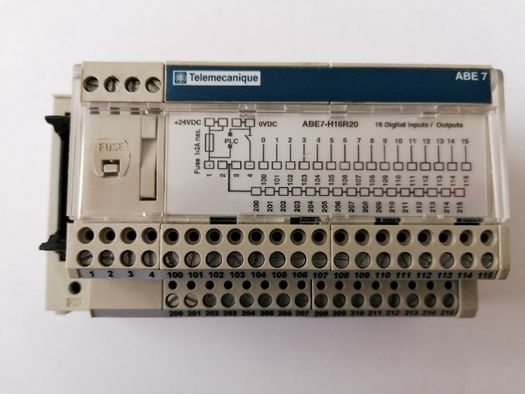

Range of product: ABE7-H16R20 Telemecanique

Product or component type: Passive discrete I/O sub-base

Sub-base type: I/O sub-base

[Us] rated supply voltage: 19...30 V conforming to IEC 61131-2

Number of channels: 16

Number of terminal per channel: 2

Connections - terminals:

Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end

Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid

Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end

Screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end

Screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid

Supply voltage type: DC

Number of horizontal rows: 2

Status LED: 1 LED (green)power ON:

Polarity distribution: 0 V or 24 V

Short-circuit protection: 2 A internal fuse, 5 x 20 mm, fast blow (PLC end)

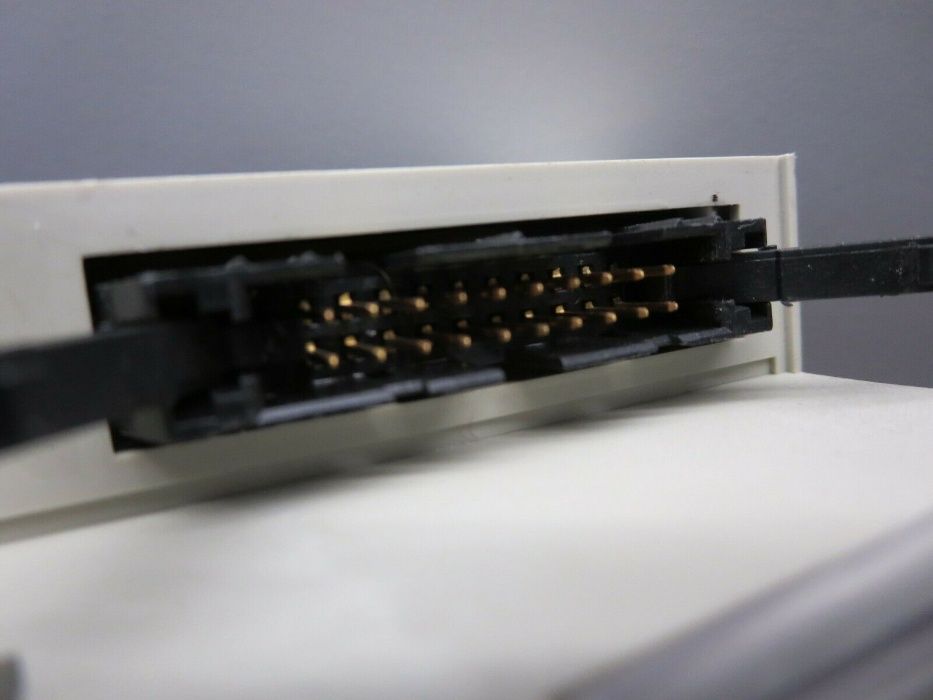

Connector type: SUB-D 15; HE-10; SUB-D 9

Pin number: 20 pins

Fixing mode:

By clips (35 mm symmetrical DIN rail)

By screws (solid plate with fixing kit)

Maximum supply current :1.8 A

Current per channel: 0.5 A

Maximum current per output common: 1.8 A

Voltage drop on power supply fuse: 0.3 V

[Ui] rated insulation voltage: 2000V

Tightening torque: 0.6 N.m with flat Ø 3.5 mm screwdriver

Width: 125 mm

Net weight: 0.3 kg

Stan - bardzo dobry

Gwarancja - rozruchowa
Posiadam kilka szt.
