Karty używane, sprawne. Ceny poniżej (za szt) proszę o kontakt którą kartą jesteś zainteresowany.

Silicom PE2G4BPFI80-LX - 600
Silicom PE2G4BPFI80-SX - 500
Silicom PE2G4BPI80 TP - 80
Interface Masters Niagara 32264 N32264B1-ASSM05-R - 80
Interface Masters Niagara 42084 N42084A-Assm01-SFP-R - 60 (bez funkcji bypass)

Bypass TAP: Jest bardzo ważnym narzędziem pozwalającym na włączenie aktywnego urządzenia IT security w trybie in-line w krytycznym łączu, bez wprowadzania dodatkowego punktu awarii.

Urządzenia typu next-gen firewall (NGFW) lub IPS wymagają aktywne połączenia „in-line”, aby spełniać swoja funkcję. TAP typu Bypass umożliwia takie podłączenie, zabezpieczając jednocześnie przed awarią sieci, spowodowaną uszkodzeniem jednego z w/w urządzeń lub potrzebą serwisu, up-date’u lub ich naprawy.

TAP typu bypass wyposażony w funkcję failsafe zabezpiecza sieć przed skutkami awarii urządzenia typu „in-line”. Mechanizm działania jest następujący. TAP generuje pakiet testowy, który jest wysyłany do urządzenia „in-line”. Tak długo jak to urządzenie działa poprawnie, pakiet testowy jest odsyłany do TAP’a. TAP usuwa pakiet testowy przed dalszym przekierowaniem ruchu sieci. W przypadku awarii TAP’a lub urządzenia „in-line” funkcja failsafe powoduje „odcięcie” urządzenia „in-line” i ruch sieciowy przechodzi bezpośrednio przez TAP’a.

PE2G4BPFI80-LX Bypass Adapter Quad Port Fiber Gigabit Ethernet PCI Express Bypass Server Adapter Intel® 82580 Based
PE2G4BPFI80-SX Bypass Adapter Quad Port Fiber Gigabit Ethernet PCI Express Bypass Server Adapter Intel® 82580 Based
PE2G4BPI80 Bypass Adapter Quad Port Copper Gigabit Ethernet PCI Express Bypass Server Adapter Intel® 82580EB Based
Interface Masters Niagara 32264 N32264B1-ASSM05-R Quad Gigabit PCIe NIC

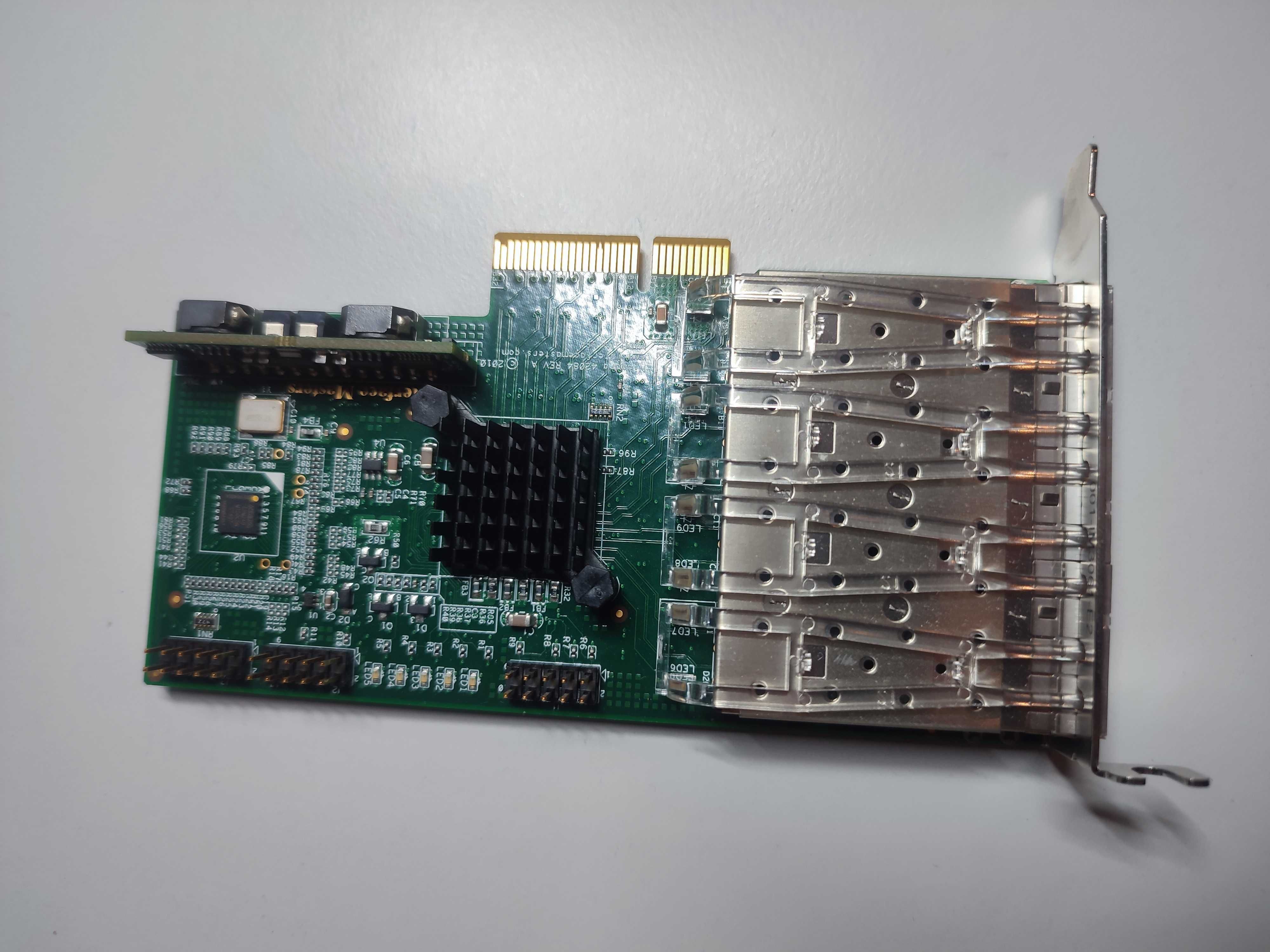

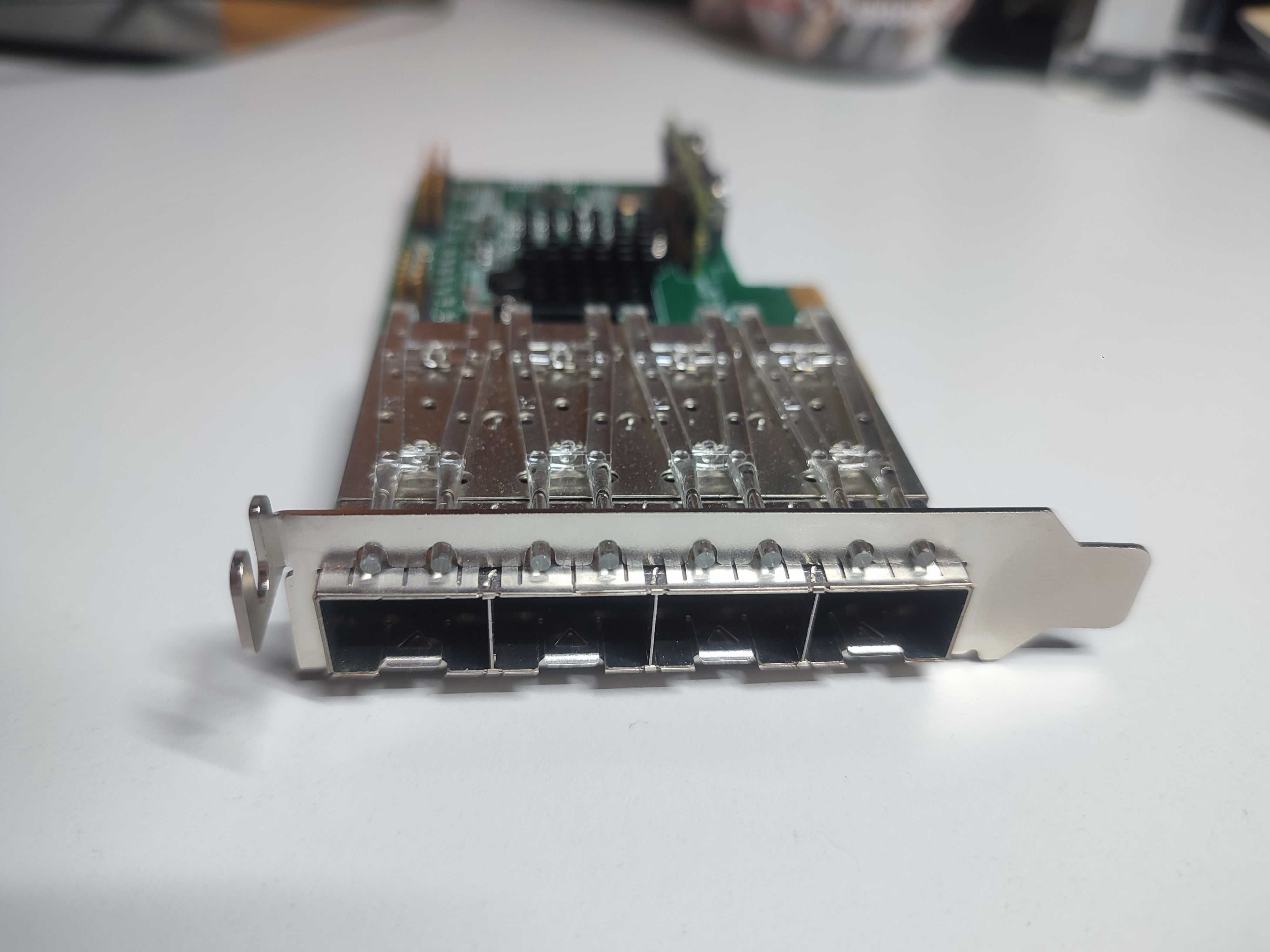

Interface Masters Niagara 42084 N42084A-Assm01-SFP-R Quad Port Gigabit Ethernet Adapter

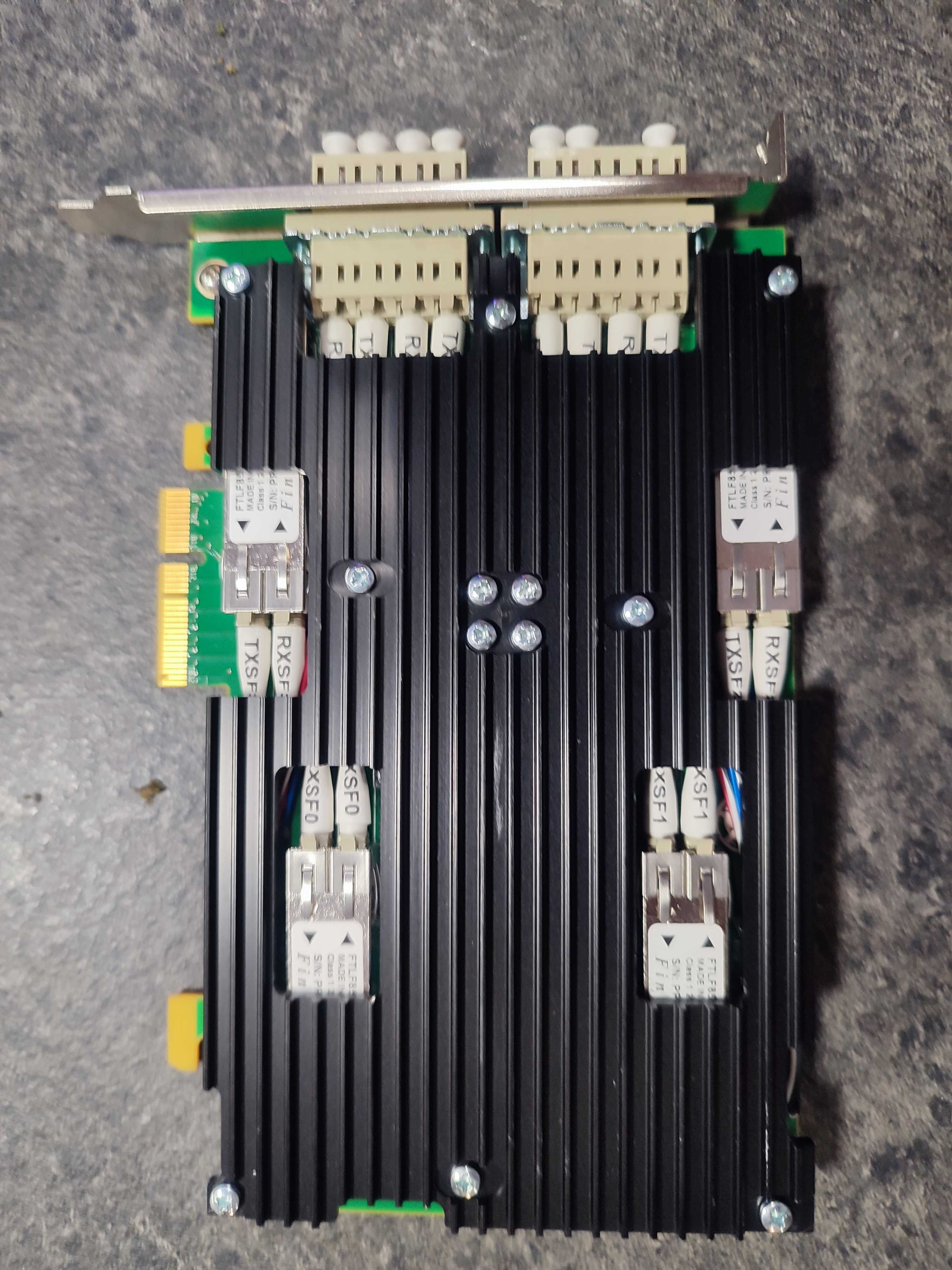

PE2G4BPFI80 Bypass Adapter
Quad Port Fiber Gigabit Ethernet PCI Express Bypass Server Adapter Intel® 82580 Based

Silicom’s Quad Port fiber Gigabit Ethernet Express Bypass server adapter is a PCI-Express X4 network interface card that contains four Gigabit Ethernet ports on a PCI-E adapter.

The Silicom’s Quad Port fiber Gigabit Ethernet Express Bypass server adapter is targeted to inline network system that maintains network connectivity when system fails.

Silicom’s Quad Port Fiber Gigabit Ethernet Express Bypass server adapter supports Normal, Bypass and Disconnect modes. In Normal mode, the ports are independent interfaces. In Bypass mode, all packets received from one port are transmitted to the adjacent port. In Disconnect mode, the adapter simulates switch / route cable disconnection.

The adapter’s software drivers, WDT controller and the Bypass circuitry provide an interface that control and manage the mode of the adapter.

Silicom’s Quad Port Fiber Gigabit Ethernet Express Bypass server adapter is based on Intel 82580 Quad Port Gigabit Ethernet MAC+PHY of Intel Controller.
PE2G4BPFI80 Bypass Networking Server Adapter

Silicom’s Quad Port Fiber Gigabit Ethernet Express Bypass server adapter can Bypass or Disconnect its Ethernet ports on a host system failure, power off, or upon software request. In Bypass mode, the connections of the Ethernet ports are disconnected from the system and switched over to the other port to create a crossed connection loop-back between the Ethernet ports.

Hence, in bypass mode all packets received from one port are transmitted to the adjacent port and vice versa. This feature enables to bypass a failed system and provides maximum up time for the network. In Disconnect mode, the adapter simulates switch / router cable disconnection. In Disconnect mode, the switch / router does not detect link partner of the adapter.

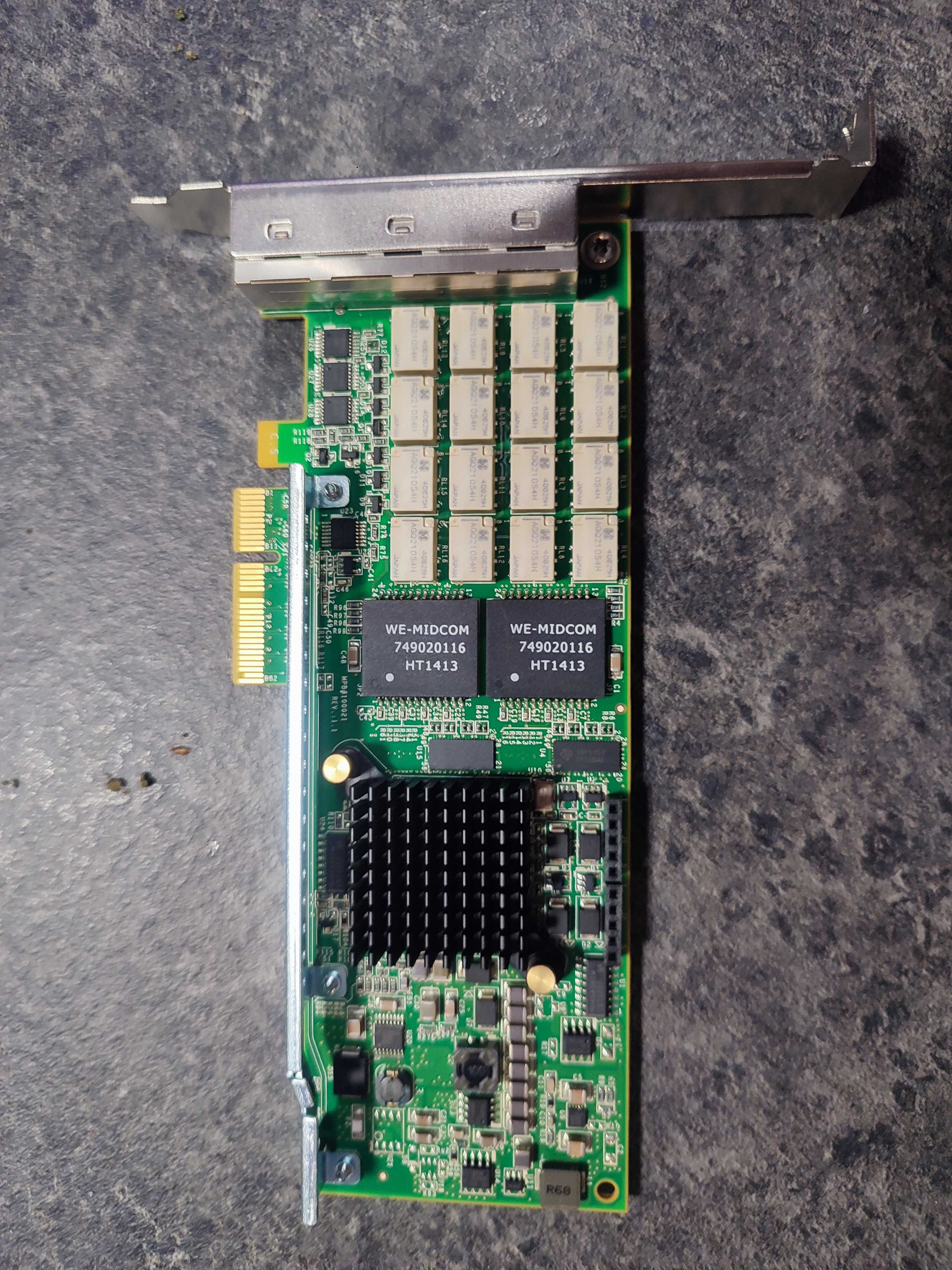

PE2G4BPI80 Bypass Adapter Cloud Computing
Quad Port Copper Gigabit Ethernet PCI Express Bypass Server Adapter Intel® 82580EB Based

Silicom’s Quad Port Copper Gigabit Ethernet Cloud Computing PCI Express Bypass server adapter is a PCI-Express X4 network interface card that contains four ports on a PCI-E adapter.

Silicom’s Quad Port Gigabit Ethernet Cloud Computing Bypass server adapter supports Normal, Disconnect and Bypass modes. In Normal mode, the ports are independent interfaces.

In Bypass mode, all packets received from one port are transmitted to adjacent port. In Disconnect mode, the adapter simulates switch / rout cable disconnection. In Bypass mode, the connections of the Ethernet ports are disconnected from the system and switched over to the other port to create a crossed connection loop-back between the Ethernet ports. Hence, in bypass mode all packets received from one port are transmitted to the adjacent port and vice versa.

This feature enables to bypass a failed system and provides maximum up time for the network. In Disconnect mode, the adapter simulates switch / router cable disconnection. In Disconnect mode, the switch / router does not detect link partner of the adapter.

Silicom’s Quad Port Copper Gigabit Ethernet PCI Express Bypass server adapters include an on board WDT (Watch Dog Timer) controller. The adapter’s software drivers or software application can write commands to the on board WDT controller.

The adapter’s software drivers, WDT controller and the Bypass circuitry provide an interface that control and manage the mode of the adapter. Silicom’s Quad Port Copper Gigabit Ethernet PCI Express Bypass server adapters are based on Intel 82580EB Ethernet controller.

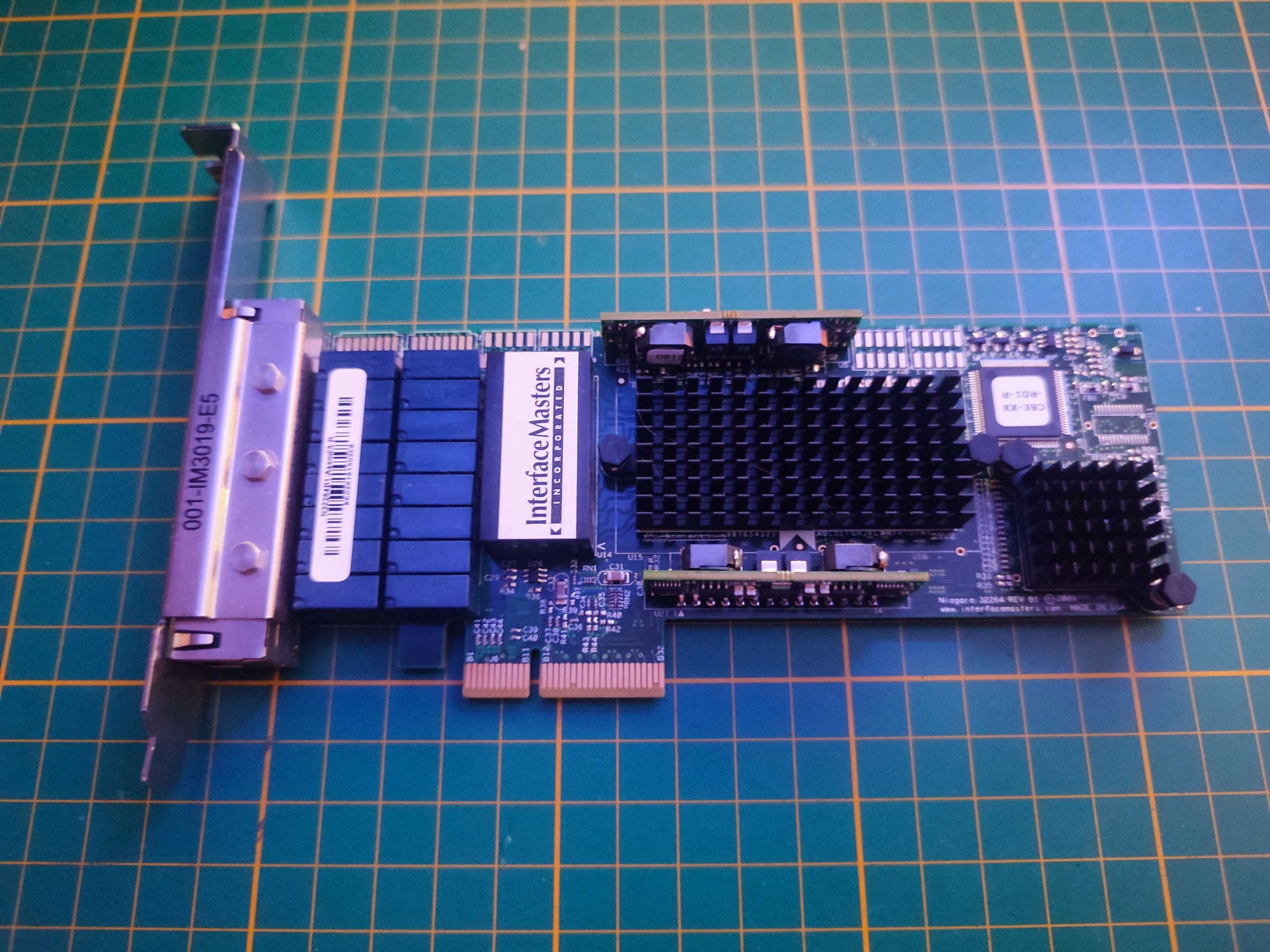

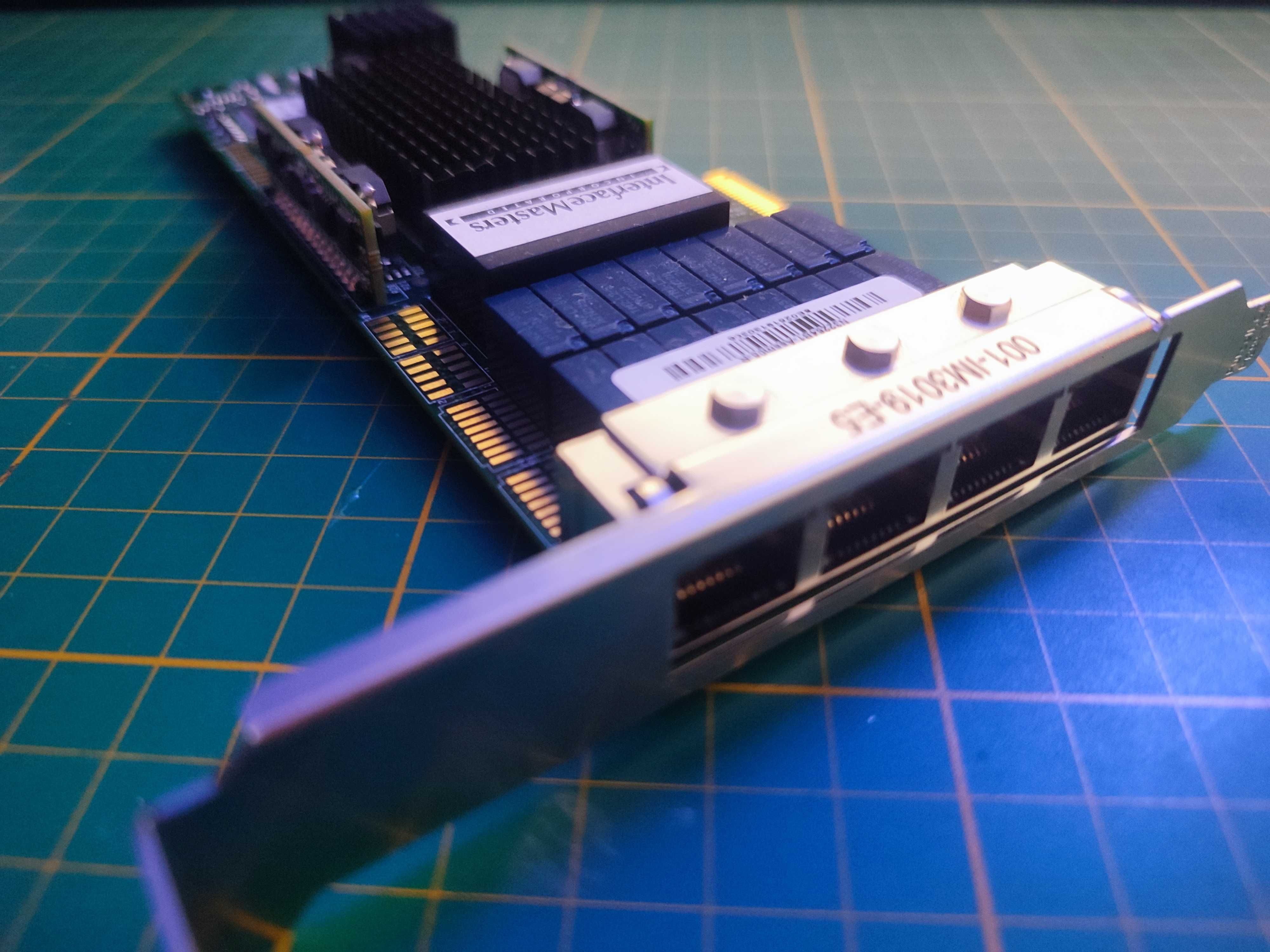

Interface Masters N32264B1-Assm04-R Niagara 32264 Bypass Copper NIC

The Niagara 32264 Quad Port Gigabit Ethernet Server Adapter is built on Intel’s 82576 Gigabit technology & Interface Masters’ sterling design and customer service. Niagara 32264 is designed with a builtin programmable bypass circuit to provide maximum uptime for the network. The bypass circuit takes the Niagara 32264 ports offline in case of either power or software failure. The bypass circuit works in absence of power. Niagara 32264 Quad Port Copper Gigabit Ethernet NIC is designed to integrate with PCI Express compatible servers and high-end appliances providing high speed networking and bypass/failover capabilities for any missioncritical application.

Features
•  Intel 82576EB Dual MAC & PHY ethernet controller
•  Peak bandwidth 5 Gb/s in each direction per
PCI Express lane
•  8 Gigabit per second of traffic when fully utilized
•  PCI-E x4 (Gen 2.0) compatible
•  Four RJ45 Connectors
•  Passive Bypass which is essential during power
loss or software failure
•  Link Fault Detection (LFD) support
•  Programmable “Fail-Closed” or “Fail-Open” while
in the power-off state
•  Programmable independent mode to function as
a quad port gigabit copper card
•  Integrated PHY for full and half-duplex
10/100/1000 Base-T Support
•  TCP/UDP/IP checksum offload and TCP segmentation
•  IEEE 802.1q, 802.3ab, 802.3u, 802.3x compliant
•  Layer 2, 3 and 4 Advanced packet filtering
capabilities (IPv4, IPv6)
•  Efficient form factor – 6.67 inches in length
and 2.51 inches in height
•  Low Power Consumption (9W maximum power)
•  Full RoHS compliance
•  FCC Class A and CE certification
Component Specifications
The Intel 82576 provides support for:
•  PCI Express 2.0 (2.5GT/s)
•  Low Power 2.4W
•  Protocols: TCP, UDP & SCTP
•  Queues per port: (16) Tx & (16) Rx Queues
•  Enhanced Virtualization Support
» VMDq2 & PCI SIG IOV
•  Intel® I/OAT Acceleration v3.0
» VM Direct Assignment (VT-d)
•  Data Center Ethernet
» Traffic Classes (802.1q): 2
» Flow Interrupt Priority (802.3ar)
» Priority Grouping (802.1P)
•  End-to-End Congestion Mgmt (802.1 PAR)
•  IEEE 1588 Support
» Manageability interfaces
Ö RMII, SMBus, PXE, iSCSI Boot
•  Layer 2 & 3 Security: IPSec & LinkSec
